Hobbywing QuicRun 880 Dual Brushed ESC

Hobbywing 30120301 QR880 DUAL Brushed ESC: Suitable for 1:8 / 1:10 All purpose

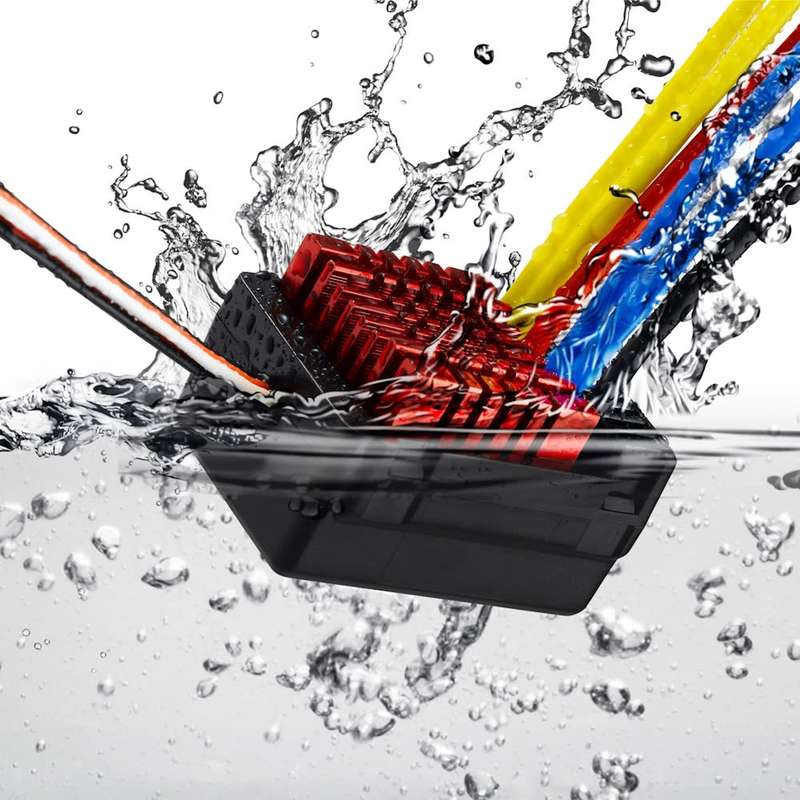

Water-proof and dust-proof for all weather races.



Please make sure to uninstall the cooling fan before using this ESC in water.

Clean and dry soon after use to avoid rusting the connectors.

• Fully waterproof design for all conditions. (Note: Please clean and dry it after use for avoiding rusty connectors).
• HOBBYWING patented copper heat-conductive plates attached to the MOSFET board allows the internal heat to be quickly transferred to the aluminum heat sink for great heat dissipation.
• Built-in switch-mode BEC with cont. current of 4A.
• Tunable drag brake and drag brake rate for different vehicles, tracks, and control feel.
• Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
• 9 levels of acceleration/ punch from soft to aggressive for different vehicles, tires and tracks.
• Proportional brake with 9 levels of initial brake force, maximum brake force, and drag brake force.
• Multiple protections: low-voltage cutoff protection, thermal protection, and throttle signal loss protection.
• Separate programming port to easily connect the LED program card (purchase separately) to the ESC.
• ESC programming via HOBBYWING  (purchase separately).

Model / SKU: QUICRUN-880-DUAL-Brushed ESC / 30120301
Cont./Peak Current: 80A/400A
Motor Type Supported: Brushed Motor (540, 550, 775 Size Motor)
Applicable Car: Various 1/10th & 1/8th Vehicles
Motor Limit: Brushed Motor Limit with 2S LiPo /6S NiMH: 12T or RPM<30000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 3S LiPo /9S NiMH: 18T or RPM<20000@7.4V (540, 550 Size Motors)
Brushed Motor Limit with 4S LiPo /12S NiMH: 24T or RPM<15000@7.4V (540, 550 Size Motors)LiPo / NiMH Cells: 2-4S LiPo or 5-12S NiMH
BEC Output: 6V@4A (Switch-Mode)
Connectors: Input End: No Connectors Output End: 4.0mm Female Bullet Connectors
Size/ Weight: 45.9*34.7*26.5mm/ 75g
Programming Port: Separate Port
Waterproof Waterproof

Note: WP-880-DUAL BRUSHED ESC has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turn of the motors needs to be increased.

•  (purchase separately)
