Honeywell (2455RC-9100-373) Thermostat Switch, Commercial, 2455RC Series

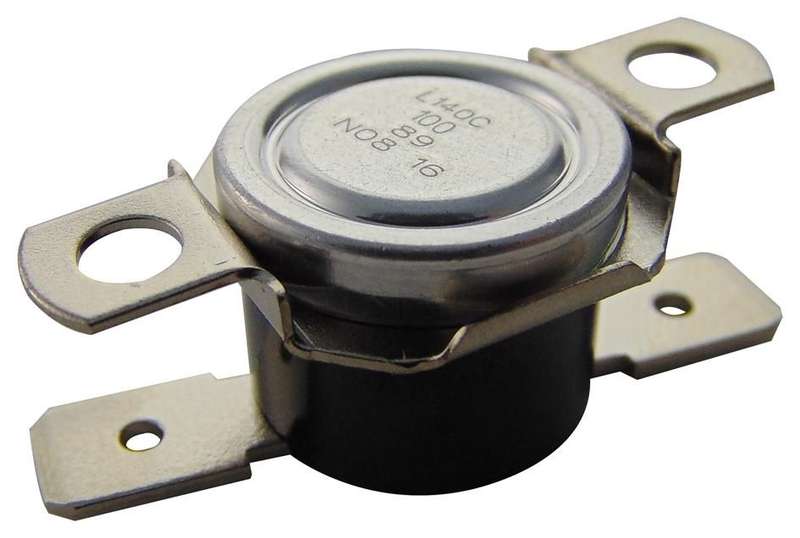

Thermostat Switch, Commercial, 2455RC Series, 150 °C, Normally Closed, FlangeMountProduct OverviewThe 2455RC-9100-373 is a commercial Bimetal Thermostat with ceramic base andsilver alloy contact. It can provide either temperature control orover-temperature protection by breaking electrical contact when a specifiedtemperature is reached. Single pole, single throw, snap-acting, non-adjustablethermostat which may be used in applications such as industrial and electricalequipment. A temperature-sensitive bimetal disc, electrically and thermallyisolated from the switch is used to actuate the normally-closed contacts.Contacts open when surface or ambient temperatures increase to the operating setpoint of the calibrated metal disc. The entire switch is enclosed in a ceramichousing, the bimetal disc is retained by a metal heat-conducting end cap. Due tothe small size of this unit and the inherently low mass of the bimetalsnap-action disc, response of this thermostat to temperature changes isextremely rapid.0 to 260°C Operating temperature rangeApplicationsSensing & Instrumentation, Power Management, Consumer Electronics, Medical,Commercial, Industrial, HVACProduct InformationSwitching Temperature: 150°CReset Temperature: 120°CContact Operation: Normally ClosedSensor Terminals: Quick ConnectSensor Housing: Flange MountContact Rating: 120VAC/15A, 240VAC/10AProduct Range: 2455RC Series
