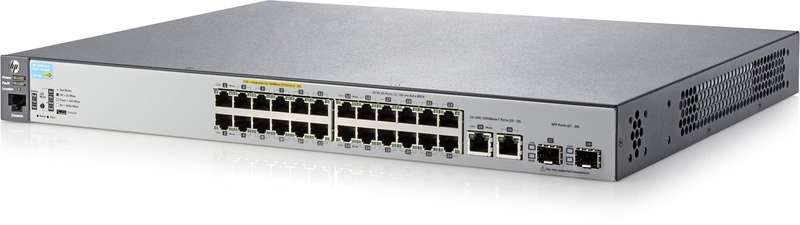

The HP Aruba 2530-24-PoE+ is a fully managed Layer 2 switch with 24 autosensing Fast Ethernet PoE+ ports, 2 Gigabit uplink ports, and 2 dedicated SFP slots for fiber connectivity. Designed for secure, reliable, and cost-effective access layer connectivity, it's ideal for enterprise edge, branch offices, and SMB networks.
This compact 1U rack-mountable unit offers flexible mounting options, and strong PoE+ power budgetingmaking it a robust choice for powering access points, IP phones, and surveillance devices.
Key Features & Benefits
24 × 10/100 PoE+ ports with 195W total PoE power budget
2 × Gigabit RJ-45 ports and 2 × SFP slots for uplink/fiber connections
800 MHz ARM processor with 256MB DDR3 RAM for reliable performance
Quiet operation and compact 1U rack-mountable design
Fully managed via CLI, Web, SNMP, and out-of-band console port
Ideal Uses
Deploying access layer connectivity in enterprise or campus networks
Powering IP phones, wireless access points, and cameras using PoE+
Wired connectivity in branch offices or small businesses
Securely managing Layer 2 networks with minimal noise and space footprint
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: HP Aruba
Model: 2530-24-PoE+ (J9779A)
Device Type: Managed Layer 2 Gigabit Switch
Ports:
24 × RJ-45 10/100 PoE+ ports (IEEE 802.3at)
2 × RJ-45 10/100/1000 uplink ports
2 × GbE SFP slots
Console Port: 1 × Dual-Personality (RJ-45 or USB Micro-B)
Switching Capacity: 12.8 Gbps
Throughput: Up to 9.5 Mp/s (64-byte packets)
MAC Address Table: 16,000 entries
Memory: 128MB Flash, 256MB DDR3 RAM
Packet Buffer: 1.5MB dynamically allocated
Latency:
1000Mb: < 1.1 µs
100Mb: < 1.7 µs
PoE Budget: 195W
Power Consumption: Max 237W (worst case), 21.8W idle
Power Supply: Internal 100240V AC, 50/60Hz
Mounting: 1U rack-mountable, wall-mountable, or desktop
Operating Temperature: 0°C to 45°C
Storage Temperature: -40°C to 70°C
Humidity: Operating 1595%, Storage 1590%
Dimensions (H × W × D): 4.45 × 44.2 × 32.26 cm
Weight: 3.81 kg
Certifications: UL, FCC Class A, CE, RoHS, EN 55022, VCCI, IEC, CISPR, and others
Warranty: 3 Month Carry-in Warranty
What's in the Box: HP Aruba 2530-24-PoE+ Switch
