HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3
HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3 HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3

HT6872 Differential Amplifier Board 2x3W Digital Class D Audio Amplifier Module Differential Input 3

New 20 available
R358.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654100592

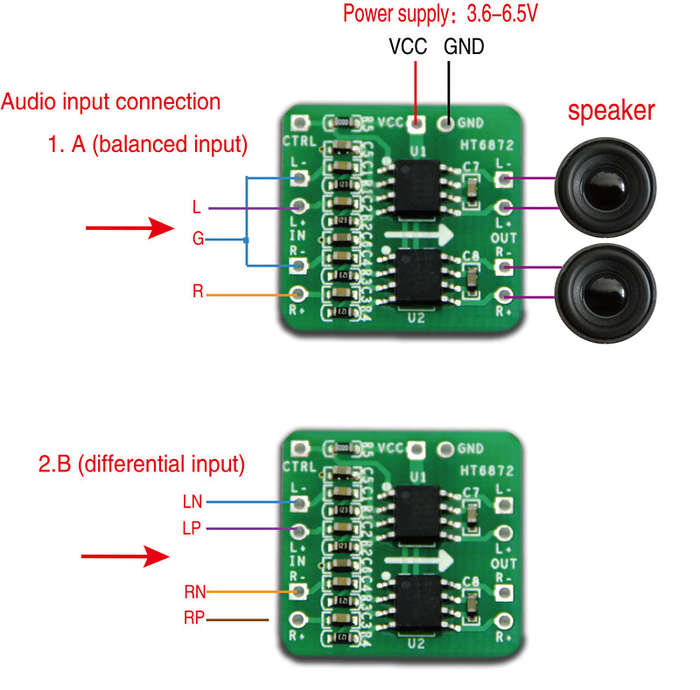

Description: Amplifier board size: 2.1x2.1CM The amplifier board is on ACF mode by default. When using the CTRL mode setting, please sold out R5. Normally the CTRL foot is connected to the Bluetooth MUTE pin. Features:
1.Anti-clipping function 2.Excellent full bandwidth EMI suppression performance 3.Free of filter digital modulation,and it can directly drive loudspeakers 4.Output Power:1.40W (3.6V);2.82W (5.0V);4.71W (6.5V) 5.Good noise suppression performance 6.High Signal Noise Rate:87dB 7.Low Quiescent Current:2.64mA (3.6V);3.26mA (5.0V);4.04mA (6.5V) 8.Low Turn-off Current:0.01uA 9.Overcurrent protection and automatic recovery function 10.Overheat protection function 11.Undervoltage exception protection function Applications: 1.Portable voice box 2.Iphone/Ipad/MP3 docking 3.PMP/MP4/MP5 player 4.Portable game machine 5.PDAs 6.USB voice box 7.Tablet computers 8.GPS 9.Cellphones Package included:
1 x Differential Amplifier Board
