The Huawei AirEngine 6760-X1E is a high-performance indoor access point designed for ultra-dense user environments. Powered by next-generation Wi-Fi 6 (802.11ax) technology, it offers blazing speeds of up to 10.75 Gbps with enhanced capacity and efficiency. With 4x4 MIMO on 2.4 GHz and up to 8x8 MIMO on 5 GHz, this unit supports up to 1,024 users in dual-radio mode.
Ideal for enterprise campuses, stadiums, and high-density office deployments, the AirEngine 6760-X1 comes with smart antenna technology, dual 10GE uplinks, and built-in IoT slots to support future-ready applications including BLE, RFID, and ZigBee integration.
Key Features & Benefits
Wi-Fi 6 (802.11ax) with OFDMA and MU-MIMO for high efficiency and capacity
Delivers up to 10.75 Gbps total throughput with RTU license upgrade
Supports up to 1,024 concurrent users excellent for high-density venues
4x4 MIMO on 2.4GHz and up to 8x8 MIMO on 5GHz via license upgrade
Built-in IoT module slots for ZigBee, RFID, BLE, and other smart applications
Dual high-speed uplink: 1 × 10GE SFP+, 1 × 10GE RJ45, 1 × GE port

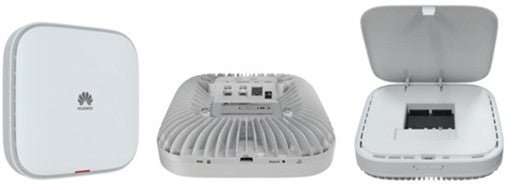

Available in two models: X1 with built-in smart antennas, X1E with external antennas
Fully compliant with IEEE 802.3bt PoE++ for simplified installation
Compact design, enterprise-grade reliability, and flexible deployment options
Ideal Uses
Enterprise and government office buildings with hundreds of users per floor
Education and healthcare facilities requiring reliable high-throughput wireless
Stadiums and event venues needing dense user and device capacity
Smart buildings and IoT-driven environments using BLE, RFID, or ZigBee
Specifications
Condition: unused unit previously unsealed for verification
Brand: Huawei
Model: AirEngine 6760-X1 / 6760-X1E
Technology: Wi-Fi 6 (802.11ax)
MIMO Configuration:
2.4 GHz: 4×4:4
5 GHz:
Base: 6×6:6
RTU License: 8×8:8 or dual 5GHz 4×4:4 + 4×4:4
Maximum Data Rate:
8.35 Gbps (standard)
10.75 Gbps (with license upgrade)
Concurrent Users: 1,024 (dual-radio mode)
Radio Protocols: 802.11a/b/g/n/ac/ac Wave 2/ax

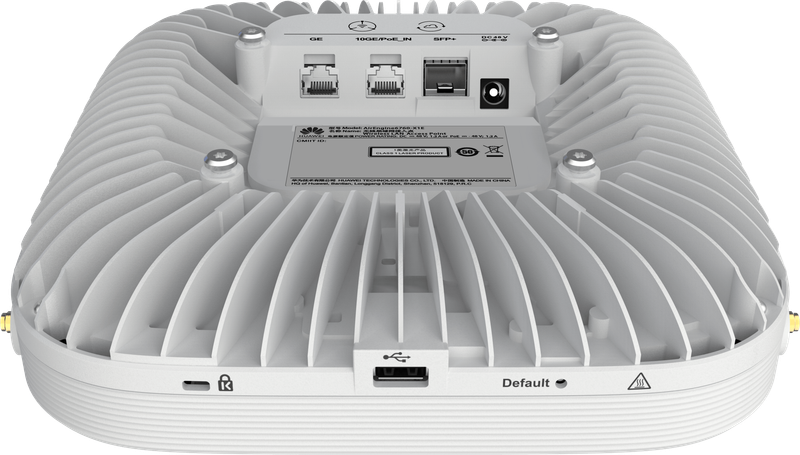

Ports:
1 × 10GE RJ45
1 × GE RJ45
1 × 10GE SFP+
IoT Support: Built-in IoT slots (ZigBee/RFID/BLE)
Antenna Type:
X1: Built-in smart antennas
X1E: External antennas
Power Supply:
DC 48V ±10%
PoE++ (IEEE 802.3bt compliant)
Operating Temperature: 10°C to +50°C
Dimensions (H × W × D): 61 mm × 220 mm × 220 mm
Weight: Not specified
Maximum Power Consumption: Varies based on radio mode and usage
Warranty: 3 Month Carry-In Warranty
What's in the Box: Huawei AirEngine 6760-X1E Access Point Only
