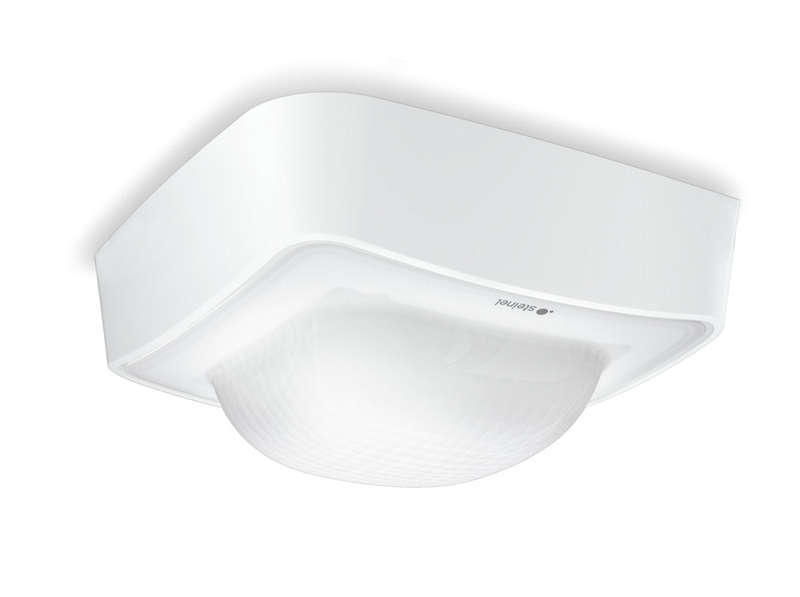

The IR Quattro HD is a high-precision indoor presence detector equipped with passive infrared (PIR) technology, designed for ceiling installation in commercial, industrial, or public spaces. With 13 detection levels and 4,800 switching zones, it ensures accurate presence detection and efficient lighting control across wide areas.
This unit supports master/slave and master/master configurations and offers flexible brightness response settings, making it ideal for smart building automation, energy savings, and lighting control. The unit is unused and fully functional, with minor signs of packaging handling.
Key Features & Benefits
High-Density PIR Sensor with 4,800 switching zones and 13 detection levels for precise motion detection
Large Detection Coverage up to 400 m² tangential, 64 m² presence zone, and adjustable reach
Ceiling-Mount Design with adjustable installation height from 2.5 to 10 meters
Flexible Configuration supports master/master or master/slave setups for scalable installations
Teach-In Function with optional remote control (RC8) for quick and user-friendly setup
IP54 Protection with AP Box for added durability in varied environments
Customizable Brightness Response from 101000 lx or daylight mode
Ideal Uses
Office lighting automation with energy-saving PIR detection
Conference rooms, classrooms, or open-plan spaces requiring zoned presence sensing
Commercial buildings seeking reliable motion-based control solutions
Integration into smart building systems with remote control capabilities
Specifications
Condition: Device is unused and in excellent condition. Packaging may show signs of handling. Fully tested and 100% functional.
Type: Presence Detector
Sensor Type: Passive Infrared (PIR)
Installation: Ceiling Mount (Indoor Use)
Dimensions:
Standard: 120 × 120 × 70 mm
Surface-Mount (AP): 120 × 120 × 65 mm
Detection Zones:
Presence: 8 × 8 m (64 m² max)
Radial: 8 × 8 m
Tangential: 20 × 20 m (400 m² max)
Recommended Install Height: 2.5 to 10 meters
Sensor System: 13 Levels / 4,800 Zones
Adjustable Reach: Yes (Mechanical)
Configurations: Master/Master, Master/Slave
Response Brightness: 101000 lx, / daylight
Response Brightness (DIM version): 1001000 lx, / daylight
IP Rating:
Standard: IP20
With AP Box: IP54
Protection Class: II
Operating Temp Range: -25°C to +55°C
Enclosure: UV-resistant, paintable
Accessories (Sold Separately):
RC5 User Remote EAN: 4007841 592806
RC8 Service Remote EAN: 4007841 559410
Surface-Mount Adapter (AP Box) EAN: 4007841 000363
Guard Cage EAN: 4007841 003036
Warranty: 3 Month Carry-in Warranty
What's in the Box: IR Quattro HD Presence Detector Only
