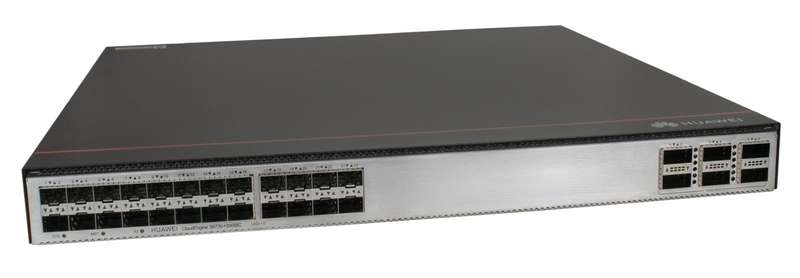

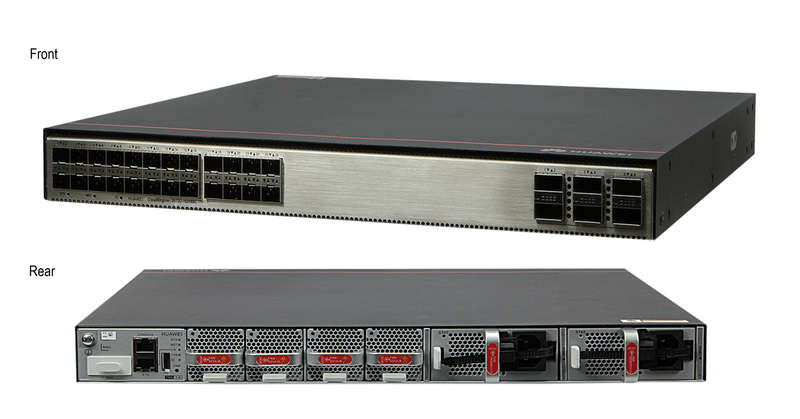

Huawei S6730-H24X6C – 24 x 10G SFP+ & 6 x 100G QSFP28 Layer 3 Ethernet Switch – Refurbished

The refurbished Huawei S6730-H24X6C is a high-performance Layer 3 switch built for enterprise core and aggregation networks. It features 24 x 10G SFP+ ports and 6 x 40/100G QSFP28 uplinks in a 1U rackmount form factor. Designed for high-density deployments, it supports advanced routing, multicast, security, and Ethernet services with hardware-level reliability.

Key Features & Benefits

24 x 10G SFP+ ports and 6 x 40/100G QSFP28 uplinks
Layer 3 routing with static routes, OSPF, IS-IS, and BGP
MAC table supports up to 384K entries
Supports 4K VLANs with MAC-based and port-based assignment
Intelligent fan cooling with adjustable speed and pluggable fan modules
High power efficiency with 231W max power consumption
Built-in surge protection for AC and DC input

Ideal Uses

Enterprise aggregation or core switching
High-bandwidth campus and data center environments
Layer 3 routing with advanced multicast and VLAN control
Scalable deployments requiring 10G and 100G fiber uplinks

Specifications

Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Product Type: Layer 3 Ethernet Switch
Model: Huawei S6730-H24X6C
Fixed Ports: 24 x 10G SFP+, 6 x 40/100G QSFP28
MAC Address Table: Up to 384K entries
VLAN Support: 4K VLANs
Routing Support: Static routes, OSPF, IS-IS, BGP
IPv4 FIB: Up to 256K entries
IPv6 FIB: Up to 80K entries
Multicast Support: IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM
Quality of Service: 8 queues per port, DRR, SP, WRED
ACL Support: Layer 2 to Layer 4 filtering
Security Features: 802.1X, ARP defense, MAC/IP binding
Operating Temperature: 5°C to 45°C
Storage Temperature: 40°C to 70°C
Operating Altitude: Up to 5000 m
Relative Humidity: 5% 95% (non-condensing)
Power Input:
AC: 100240V AC, 50/60 Hz
DC: 48V to 60V DC
Power Consumption: 231W max / 97W min
Input Current:
AC: Max 8A
DC: Max 30A
Surge Protection:
AC: ±6kV
DC: ±2kV differential, ±4kV common
Cooling: 4 pluggable fans with heat dissipation
Noise Level: 65 dB(A)
Dimensions: 442 mm (W) x 420 mm (D) x 43.6 mm (H)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Huawei S6730-H24X6C Switch
