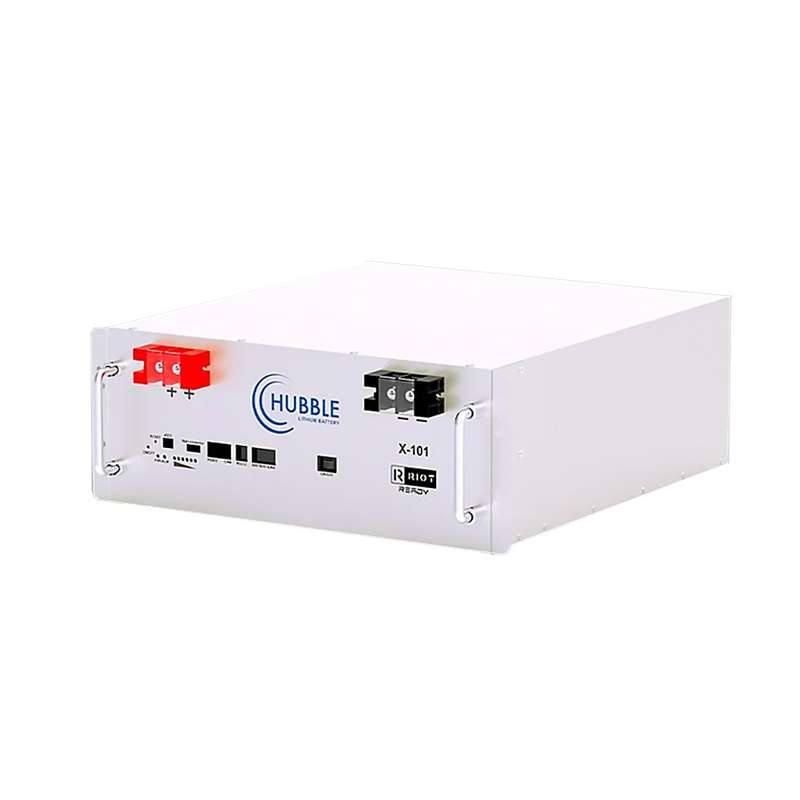

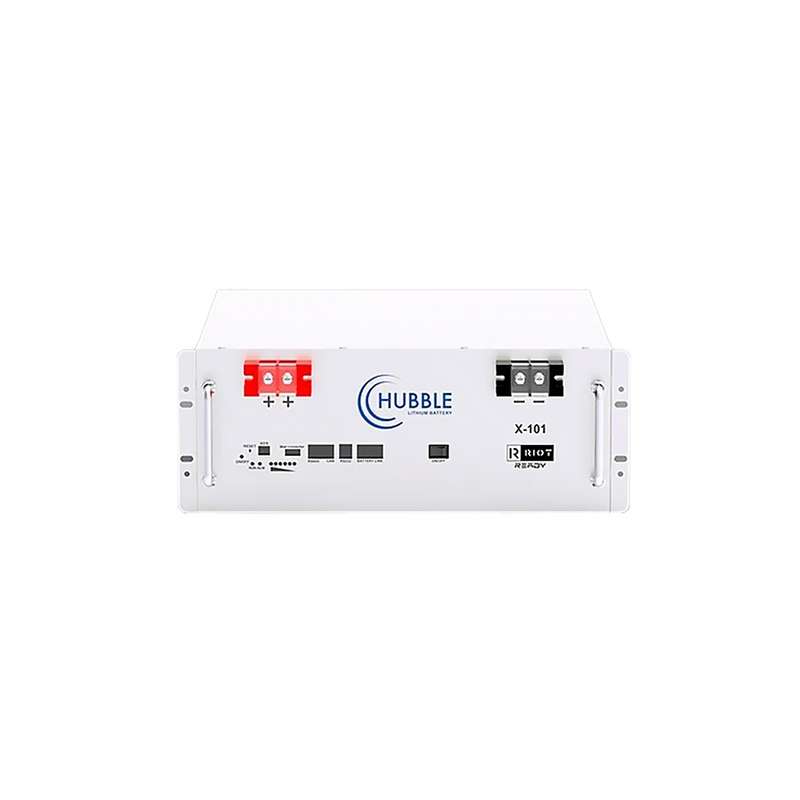

Hubble X-101 51V 5.5kW Lithium Li-Ion Battery - Warranty - 10 Years / 3000 Cycles

** Warranty - 10 Years / 3000 Cycles
** Mounting Brackets NOT included
** 1m Battery Cables Included ( Positive & Negative )

Please note:

Delivery will take 1-2 days extra to any area outside of Gauteng
An additional charge of R395 shipping applies owing to the weight/dimensions of the item
Collection from our Johannesburg office will be at no additional charge

Features

- Lithium pack designed to be easily wall-mounted or shelf installed in a standard rack.
- Parallel connection up to 15 packs with full communications
- +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD

Specifications

- Model Hubble: X-101
- Rated Capacity (5HR): 110 Ah
- Nominal Voltage: 51.0 V
- Discharge Ending Voltage: 42.0 V
- Equalized Charge Voltage: 53.6 V
- Max. Charging Current: 100 A
- Max. Continuous Discharging Current: 100 A
- Cell C Rating: 1.0 C
- Weight: Approx. 42 Kg
- Configuration: 4 U
- Parallel: Parallel connection up to 15 packs with full communication
- Dimensions: (W x D x H)mm 442mm x 495mm x 177.5mm
- Maximum DC Limits: 1x CAN-bus, 2x RS-485 Battery Link ports, 1x RS232
- Cells: New Li-ion Prismatic Cells
- Design Life: +/- 15 years
- Cycle Life @ 1C: +/- 3 000 Cycles @ 100% DOD, Above 6000 cycles @ 50% DOD
- Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
- Outer Package Material: White bake lacquer steel case
- Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
- Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
- Warranty - 10 Years / 3000 Cycles
