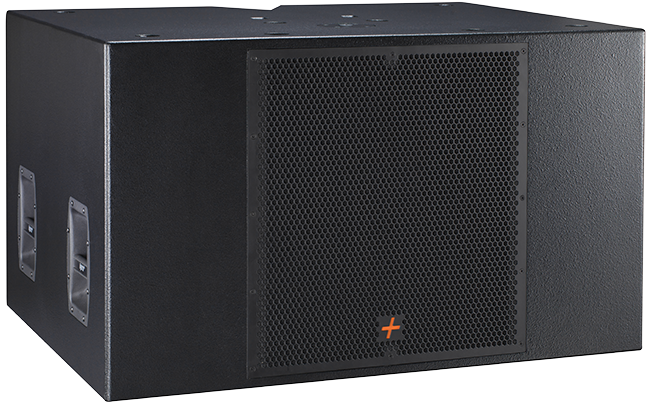

The Hybrid+ HP218X (High-power) is a passive dual 18, birch-plywood enclosed, bandpass horn subwoofer. Owing to its compact size it can be used virtually anywhere from the smallest applications that require sub-bass to large outdoor stages with multiple bass stacks. Thanks to its bandpass horn design, the frequency response is not impacted by its compact size and as such boasts an impressive 28-300Hz range.
It features symmetrical recessed footprints allowing for neat and stable vertical or horizontal stacking for multi bass setups and an M20 mounting socket for mid-high, pole-mounting cabinet applications.
It also includes four strategically placed recessed metal cup handles to allow for easy handling and mobility. Input and speaker loop-thru connections are made using the two NEUTRIK NL4MP panel mount connectors.
The HP218X is protected with a 3-coat, water resistant, hardwearing, environmentally friendly UltraTex (USA) black textured paint. Together with its stylish, custom patterned metal grille, it is beautifully finished and adds eye-catching aesthetics to any venue.
Dual 18 Bandpass horn subwoofer
RMS Power (AES standard): 3000W
Nominal impedance: 4 Ohms
Average sensitivity: 104dB/1W/1m
Maximum SPL (calculated): 140dB RMS/146dB Peak
Frequency response: 28 — 300Hz
Nominal directivity: Omnidirectional
LF: 2 x CELTO Acoustique 18EX1505-8
Woofer chassis: Die-cast aluminum
Woofer voice coil diameter: 4/100mm
Cabinet material: Heavily braced birch plywood
Cabinet finish: 3 coats of UltraTex (USA) texture black coating
Grille: Custom, 1.2mm, black powder coated
Mounting hardware: M20 mounting socket
Connectors: 2 x NEUTRIK NL4MP
Cabinet size (HxWxD): 580 x 990 x 790mm
Cabinet weight: 87Kg
HYBRID is a South African brand with over 30 years' experience in professional audio, stage and lighting. Our brand is aimed specifically at the African market to meet our continent's demands for features, performance and budget.
HYBRID+ is our flagship brand, offering features and performance comparable to world renowned brands and making HYBRID+ one of the best price-to-performance ratio brands.
| * High Power Sub-Bass |
| * Bandpass Horn Design |
| * Low Sub-Bass 28Hz Extension |
| * Loaded with Celto Acoustique Transducers |
| * Heavily Braced Birch Plywood & UltraTex (USA) textured black finish |
| * M12 Threaded Pole Adaptor |
| * Genuine Neutrik Speakon Connectors NL4MP |
| Specifications |
| RMS Power (AES Standard) : 3000 Watt |
| Nominal Impedance: 4 |
| Average Sensitivity: 104dB/1W/1m |
| Max SPL (Calculated): 140dB RMS / 146dB Peak |
| Frequency Response (-6dB): 28Hz - 300Hz |
| Nominal Directivity : Omnidirectional |
| LF Transducer: Celto Acoustique, 2x18EX1505-8 |
| Dimensions (HxWxD)mm : 580x990x790 |
| Weight (Kg) : 87 |
