Hyper SS Nitro RTR w/H-2802T & Turbo Plug 14kg servos 2.4G (Black) ("HB-SS-C28B") - Hobao 5kg

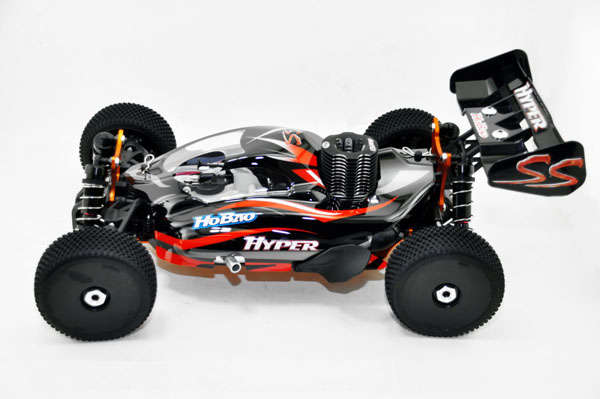

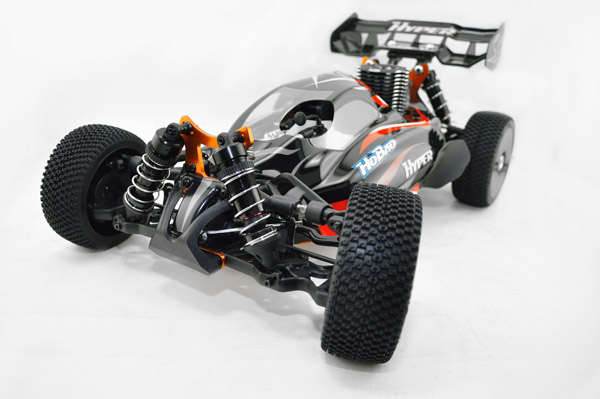

This is the Hobao Glow Powered, Radio Controlled, 1/8 scale,

Ready to Run Hyper SS Off Road Racing Car with Black Body.

FEATURES

Chassis: Aluminum 0.14" (3.5mm), gun metal gray in color, separate plastic side guards

Drive: Four wheel shaft

Engine: Hobao Mac Star 28 with slide valve carb, Hobao T4 turbo platinum glow plug, and large plastic pull-start handle

Exhaust: Aluminum tuned pipe with polished natural finish

Radio: Hobao HT-2.4EF 3-channel 2.4GHz FHSS with dual rate steering and throttle, charge jack on transmitter for optional NiCd batteries, high output digital steering and throttle servos

Suspension: C-hub front, newly designed front and rear lower composite suspension arms, front and rear stabilizer bars

Shocks: Aluminum body 17mm Big Bore oil-filled

Shock Towers: 0.16" (4mm) thick aluminum

Fuel Tank: 5oz (150cc)

Clutch Bell: 15T steel

Tires: Low tread L-pattern with foam inserts, 4.32" (111mm)

Wheels: Revo style, black in color, 17mm hex

Body: Trimmed and painted with black, red, gray and white color scheme

Caster: Adjustable, caster/toe-in refers to the angle of the suspension when viewed from the side of the car in relation to the chassis

Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle

INCLUDES

RTR Hyper SS Off-Road car with .28 cu in (4.6cc) Engine, 3-ch Radio,

Steering and Throttle Servos, black plastic Rear Wing, Decal Sheet painted Body and Instruction Manual

REQUIREMENTS

AA Batteries: Twelve, 8 for radio, 4 for receiver

Nitro Fuel: Car blend with 15-30% nitro content, 30% required for engine break-in

Track and maintenance equipment

SPECIFICATIONS

Vehicle;

Length: 19.8" (510mm)

Width: 12" (308mm)

Height: 7.2" (180mm)

Wheelbase: 12.8" (330mm)

Front Track: 10.33" (265mm)

Rear Track: 10.14" (260mm) distance between outer edges of wheels measured side-to-side

Weight: 7.62lbs (3450g)

Body;

Length: 12.8" (325mm)

Width: 7.5" (190mm)

Height: 3.8" (96mm)

Carburetor Needle Settings;

Factory Default After Break-In

Top End (high speed): 2-1/2 turns out 2-2-1/4 turns out

Bottom End (low speed) 1/2 turn out flush w/ball collar

Mid Range: Flush-do not touch Flush-do not touch

Idle Screw 1mm (1/16" ) 1mm (1/16" )
