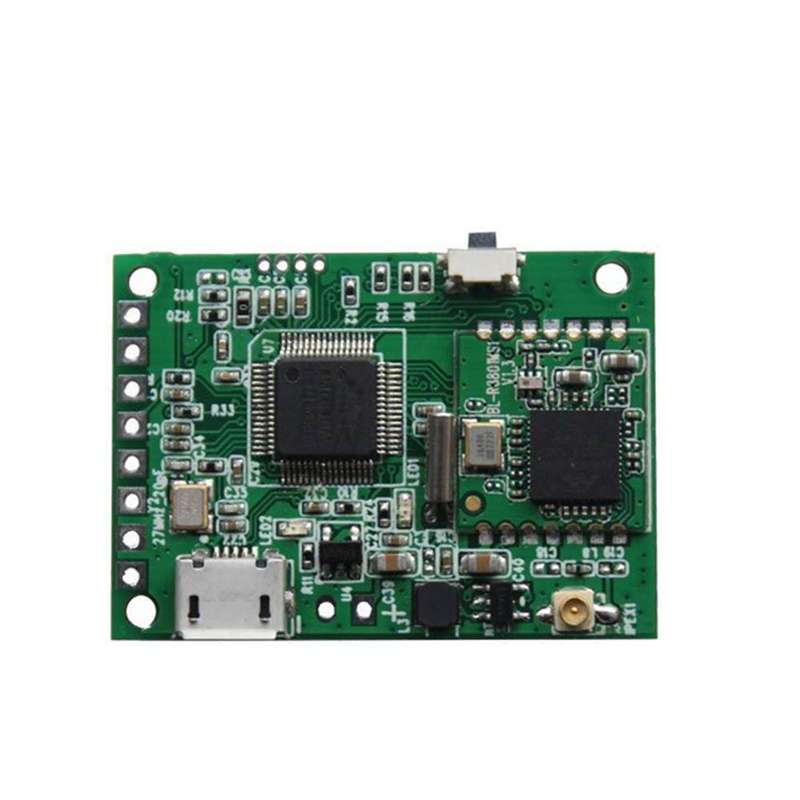

Product introduction: IDC-58WF is a high-performance, low-power, small-sized AV to WiFI wireless video module that complies with the IEEE802.11N standard
and is backward compatible with the IEEE802.11B/G standard, supporting the IEEE802.11i security protocol, and IEEE802. .11e Standard
service quality. Its high compatibility enables fast and easy communication with wireless devices, supports the latest 64/128-bit WEP data
encryption, supports WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanisms, and provides AP mode. In the AP mode, point-to-point
communication between the terminal and the client can be realized, and video synchronous transmission is supported, and the maximum
output resolution is 640x480@25FPS.
?

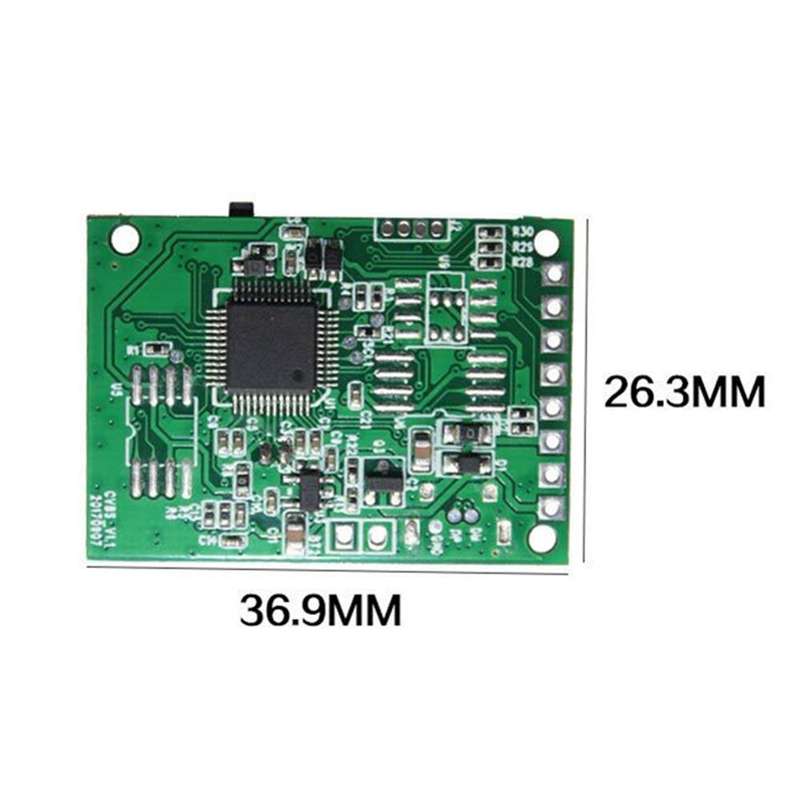

Specification: Name: IDC-59WF Interface Type: CIS/SD/UART/2S/AudioCodec Storage format: .H264 Supply voltage: 3.8V-5.5V (±10%) Module current: 230mA (measured at 5V) Video CIS input: 640x480p@25, data bit width 10bit, frame valid, line valid signal polarity configurable Video output: 640x480p@25 Support N/P AV camera Antenna type External antenna Product size: 37.75mm (length) x 18.85mm (width) x 5.6mm (height) Protocol/Standard: IEEE802.11b, IEEE 802.11g, IEEE802.n (1T1RModes) Frequency range: 2.400~2.4835GHz channel 1~11 (USA, Canada), 1~13 (Europe), 1~14 (Japan) Modulation mode: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Transmit power: 802.11b/g/n: 17±1dbm Working temperature: -10 ?ﾣ C -60 ?ﾣ C Working humidity: 10%-90% RH without condensation
?
Application: Remote control toy, model aircraft Video Surveillance Visualize the doorbell Aerial photography Smart home Magic game Medical microscope Love goods Electronic eyebrow pencil.
?
Features: Support defogging;
Support client video synchronization transmission; The open transmission distance is 100 meters; Support remote storage mode; Support single video recording 802.11n-compliant, up to 150Mbps video and control signals for wireless transmission; Gamma correction, color correction, automatic dead pixel correction, adaptive 3D/2D denoising, privacy masking; Using a high compression rate video compression chip to control the data rate to enhance the transmission distance; Highly integrated design, smaller size and lower power consumption; Low power operation supporting deep sleep and standby modes;
Package included: 1 x?IDC-59WF 5.8G WIFI AV FPV Transmitter Module 3V-5V for RC Drone/Video Surveillance
?
