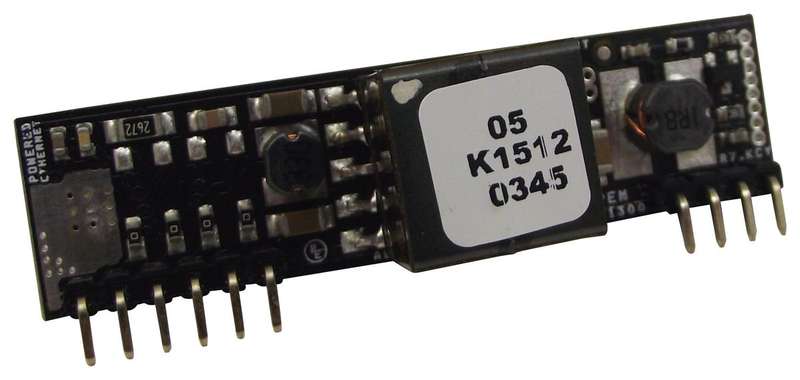

Infomart (PEM1205) Power Over Ethernet PD Module

Power Over Ethernet PD Module, 12.95W, 5VProduct OverviewPEM1205 is a power extraction module, has complete compliance with the IEEE802.3af Power-Over-Ethernet (PoE) standard, and it's designed to extract powerfrom CAT5 Ethernet cable when sourced by a IEEE 802.3af compliant Power SourcingEquipment (PSE). With the increasing demand for Green Power IEEE has emphasizedthe need for power rightsizing. The PEM1205 Powered Device (PD) module providesfull PoE signature and programmable power classification for granular powermanagement. Its high efficiency DC/DC converter provides a well regulated lownoise and low ripple output with in built overload and output short circuitprotection. The PEM1205 provides a quick, easy, and low cost method for Ethernetequipment manufacturers to PoE enable their equipment.Fully IEEE 802.3af compliant12.95W output loadIEEE power class programmable (Green)1500V DC isolation (Input to Output)5V DC output voltage modelCompact package minimum PCB footprintMinimal external components requiredOverload and short circuit protectionWide input voltage (36Vdc to 57Vdc)Low output ripple and noise, low costApplicationsCommunications & Networking, Power Management, Security, Wireless, SystemMonitoring
