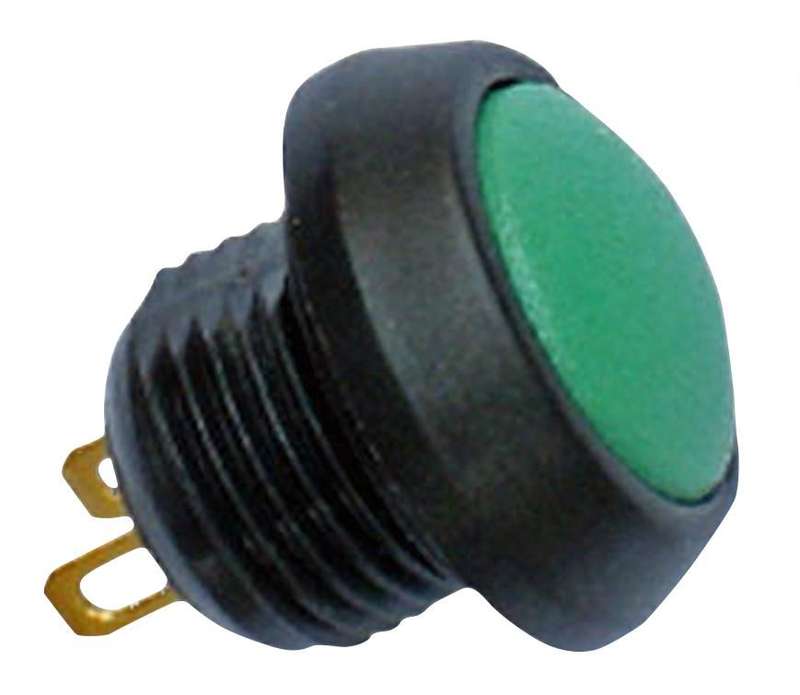

Itw Switches (59-513) Industrial Pushbutton Switch, 59, 13.6 mm

Industrial Pushbutton Switch, 59, 13.6 mm, SPST-NO-DB, Momentary, Round, GreenProduct InformationPushbutton Switch Type: IndustrialProduct Range: 59Panel Cutout Diameter: 13.6mmContact Voltage AC Nom: 50VContact Configuration: SPST-NO-DBContact Voltage DC Nom: -Switch Operation: MomentaryPushbutton Actuator Style: RoundContact Current Max: 400mAActuator / Cap Colour: GreenContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 59-513 is a single-pole single-throw (SPST) miniature sealed PushbuttonSwitch with gold plated brass solder terminals, PBT round bezel body style and agreen PBT button. The 59 series switch has gold plated nickel contacts. Theminiature, momentary action, rugged panel switch mounts easily into panels ofminimum 1.5mm and maximum 3mm thickness. Front panel sealing to IP67 is achievedby the use of a sealing 'O' ring which is fitted behind the bezel of the body ofthe switch before it is inserted into the panel hole cut out. It is held ontothe panel by means of a brass locknut, tightened down by a 14mm spanner, to atorque of between 1.0Nm to 2.0Nm to achieve the correct sealing pressure.Locknut is supplied with each switchNon-spark materialStatus illuminationWide temperature range up to 125°CIP67 Protection rating (panel sealed)ApplicationsCommunications & Networking, Sensing & Instrumentation, Aerospace, Defence,Military
