Itw Switches(49-59121) Industrial Pushbutton Switch, 49-59, 16.1 mm

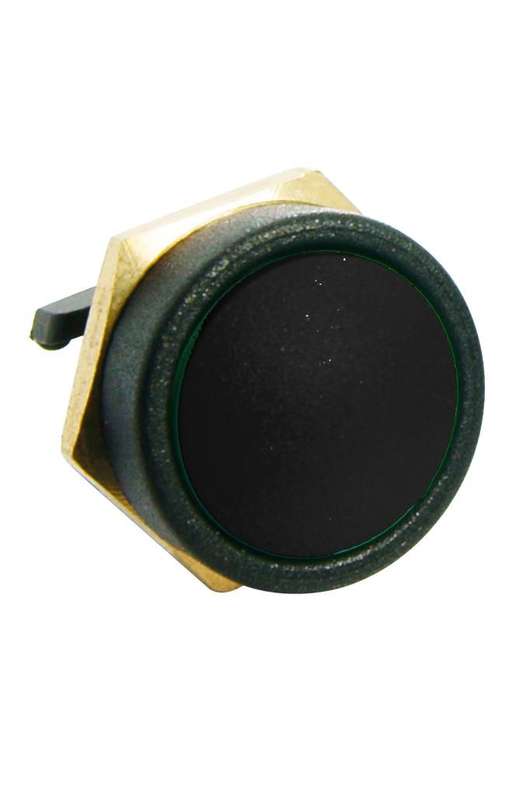

Industrial Pushbutton Switch, 49-59, 16.1 mm, SPST-NO-DB, Momentary, RoundDomed, BlackProduct InformationPushbutton Switch Type: IndustrialProduct Range: 49-59Panel Cutout Diameter: 16.1mmContact Voltage AC Nom: 250VContact Configuration: SPST-NO-DBContact Voltage DC Nom: 50VSwitch Operation: MomentaryPushbutton Actuator Style: Round DomedContact Current Max: 10AActuator / Cap Colour: BlackContact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe 49-59121 is a single-pole single-throw (SPST) momentary action SealedPushbutton Switch with solder terminal, round bezel and a black button. It fitsa 16mm panel cut out. Held in position by a snap fit retaining mechanism, themicroswitch has a maximum current rating of 10A and the advantage of SPDT-DBcontacts to cover all circuit requirements. Being double break, the contactsalso provide reliable switching of DC loads. The body and button are made fromPBT, a hard wearing thermoplastic polyester that is suitable for surface orsublimation printing or engraving. The switch body is fitted from the front ofthe panel and is locked down with an M16 nut using a 20mm spanner. Panel sealingis achieved by the use of a sealing washer which is placed behind the head ofthe bezel. To attain the correct sealing, the nut should be tightened to arecommended torque of between 1Nm and 1.5Nm not exceeding 2Nm.2.3mm Travel (nominal)Wide temperature range up to +105°CIP67 Protection rating (ingress, fully sealed)ApplicationsCommunications & Networking, Sensing & Instrumentation, Aerospace, Defence,Military
