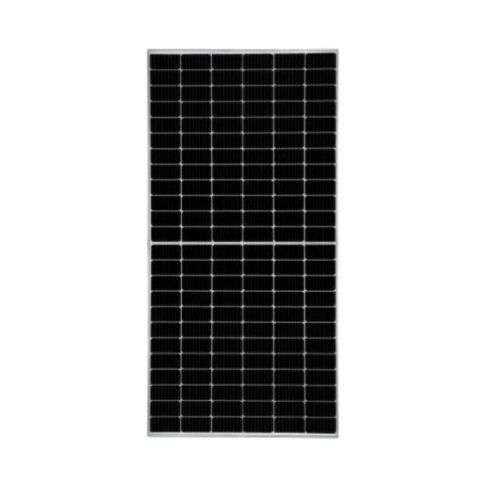

MONO MBB Half-Cell modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.
Features:
- High Power Output
- Lower LCOE
- Less shading and lower resistive loss
- Better mechanical loading tolerance
Specifications:
- Cell Type - MBB mono Half-Cell
- Power Output - Higher than Conventional Modules
- Number of Cells - 144 Modules
- Junction Box - IP68, 3 diodes
- Connector - MC4
- Maximum System Voltage - 1000V/1500V DC
- Safety Glass - Class II
- Operating Temperature - -40'C to + 85'C
Electrical Parameters :
- Rated Max Power: 460W
- Open Circuit Voltage: 50.01V
- Max Power Voltage: 42.13V
- Short Circuit Current: 11.45A
- Operating Power Current: 10.92A
- Power Selection: 0-+5 W
What's in the box
1 x 460w Solar Panel
