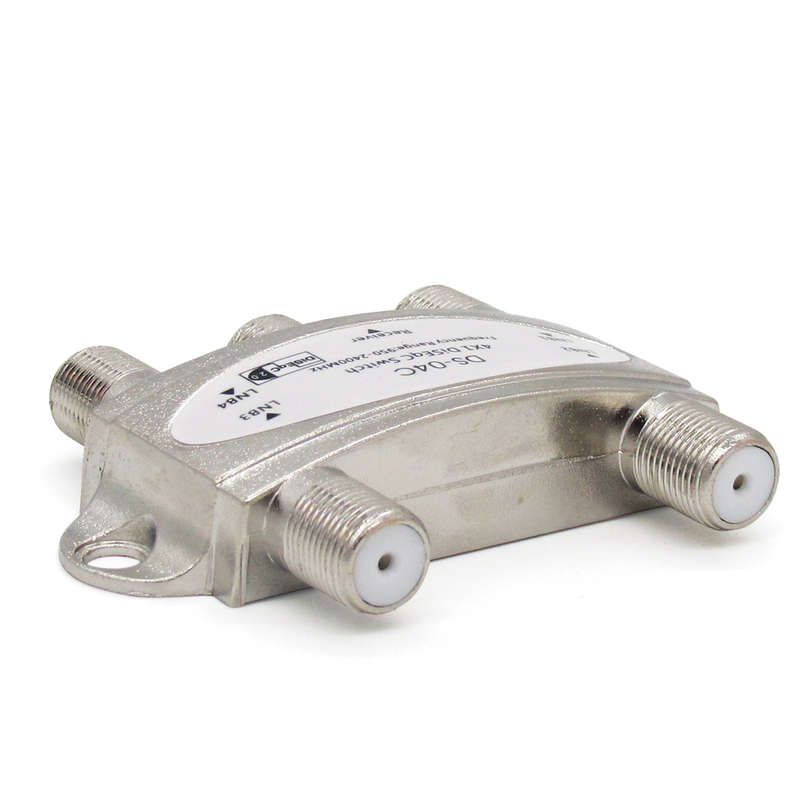

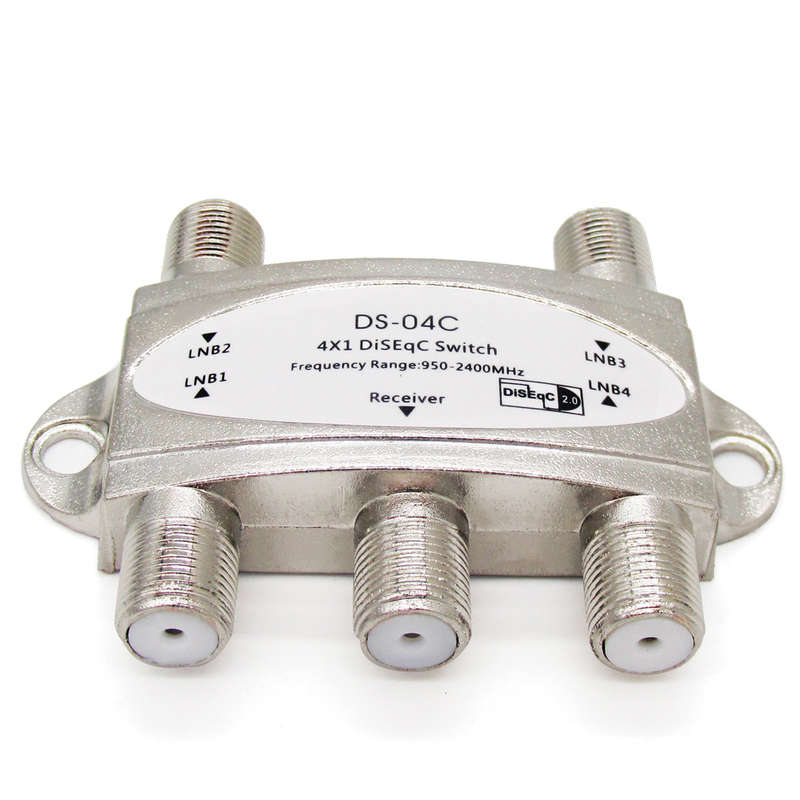

Jasen DS-04C 4 in 1 4x1 DiSEqC Satellites FTA TV LNB Switch

Features:
Zinc die-cast housing, nickel-plated Excellent quality component , professional circuit design and low loss Excellent quality chip , professional program design and compatible with more types of satellite receiver Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached DiSEqC 2.0 , support bi-directional DiSEqC full control functions Select one of two satellite signals through DiSEqC commands supplied from satellite receiver Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously Support DiSEqC astandbya commands

Specifications:

Item	Specification	Item	Specification
FrequencyRange	950-2400(MHz)	NormalWorkingVoltage	12-20(V)
InsertionLoss	3(dB)	DCPowerConsumption	10(mA)
Isolation	20(dB)	DCMaxPowerPassing	500(mA)
ReturnLoss	8(dB)	Impedance(allports)	75()

Package Included:

1 xJasen DS-04C Switch
