JB Systems VX 700II Power Amplifier

JB Systems VX 700II Power Amplifier

The JB Systems VX700 II receiver is a professional amplifier designed for all-around sound reproduction. It features a signal-to-noise ratio of 85 dB, a damping factor of 200, and an RMS power output per channel of 350W at 4 Ohms and 200W at 8 Ohms. In bridge mode, it can deliver 700W per channel at 8 Ohms.

For protection, the receiver includes features such as short circuit protection, DC current protection, and high temperature protection. It is equipped with forced fan cooling to prevent overheating during long periods of use. The built-in limiters help to prevent distortion and ensure consistent audio quality.

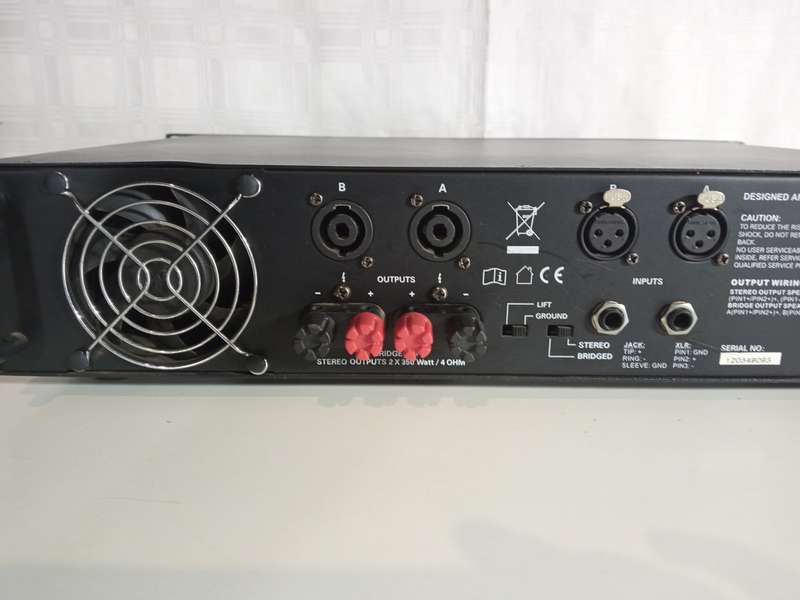

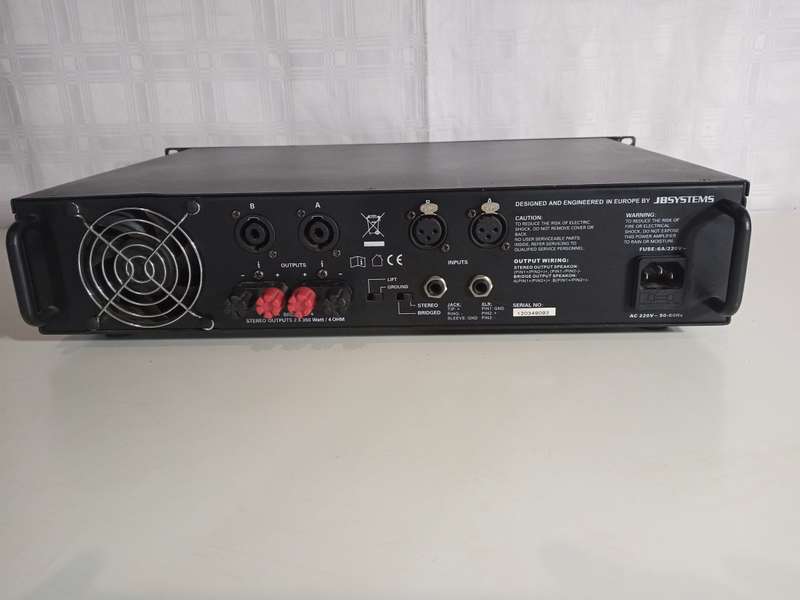

The JB Systems VX700 II also offers balanced XLR and Jack inputs, as well as a ground/lift switch for added versatility. Speaker outputs are compatible with Speakon® connections and binding post outputs with screws for secure connections. The receiver is housed in a strong aluminum 19-inch front panel, adding to its durability and professional appearance.

Overall, the JB Systems VX700 II receiver is a reliable and versatile option for those seeking high-quality sound reinforcement in various professional audio applications.

Technical data JB-Systems VX700 II

Power Stereo 4 Ohm: 2 x 350 Wrms

Power Stereo 8 Ohm: 2 x 200 Wrms

Power bridged 8 Ohm: 1 x 700 Wrms

Built-in peak limiter: yes

Frequency response: 10 - 50,000 Hz

Input sensitivity: 0.77V / 26dB / 1.4V

Input impedance: 20 kOhm

Signal to noise ratio: > 85 dB

Damping factor: > 200

Dimensions: 88 x 483 x 260 mm

Weight: 15 kg

Download Manual
