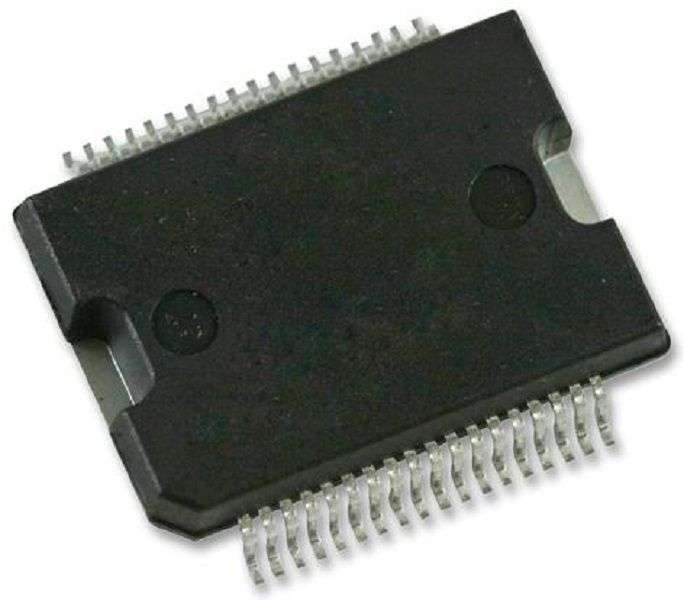

Stmicroelectronics (STA518) Audio Power Amplifier, 24 W, AB, 4 Channel

Audio Power Amplifier, 24 W, AB, 4 Channel, 10V to 36V, PowerSSO, 36 PinsProduct OverviewThe STA518 is a monolithic quad half-bridge Digital Audio Amplifier inmulti-power BCD technology. The device can be used also as dual bridge orreconfigured, by connecting the CONFIG pin to the Vdd pin, as a single bridgewith double current capacity. The device is particularly designed to make theoutput stage of a stereo all-digital high-efficiency (DDX) amplifier capable ofdelivering an output power of 24W x 4 channels at 10% THD at VCC 30V into 4Wload in single-ended configuration. The input pins have a threshold proportionalto the VL pin voltage.Minimum input output pulse width distortionCMOS-compatible logic inputsThermal protectionThermal warning outputUnder-voltage protectionShort-circuit protectionApplicationsAudioProduct InformationAmplifier Class: ABNo. of Channels: 4 ChannelOutput Power: 24WSupply Voltage Range: 10V to 36VAmplifier Case Style: PowerSSONo. of Pins: 36PinsLoad Impedance: 8ohmOperating Temperature Min: -40°COperating Temperature Max: 90°CMSL: MSL 3 - 168 hours
