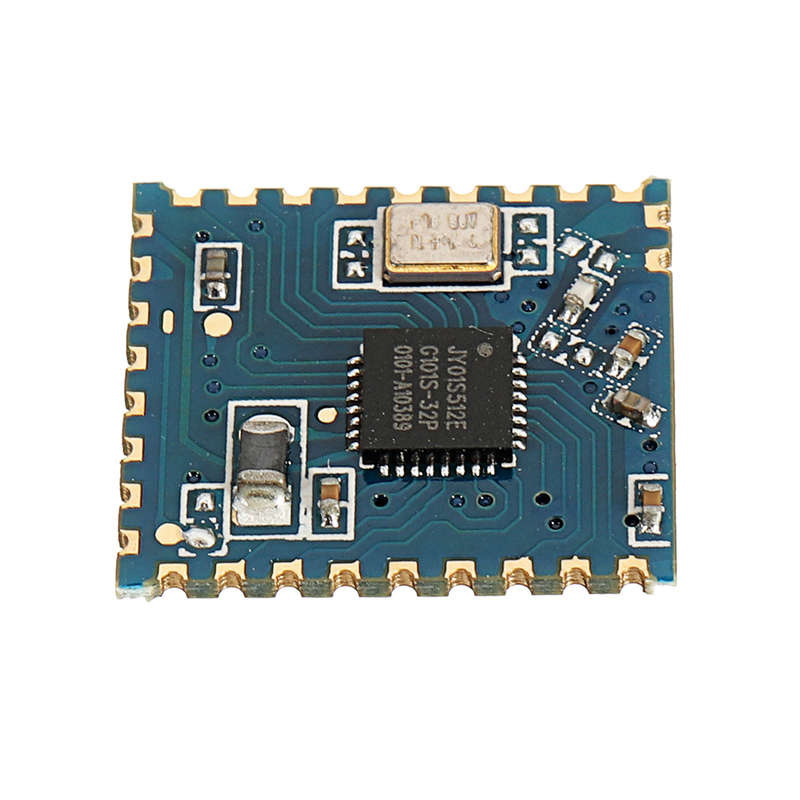

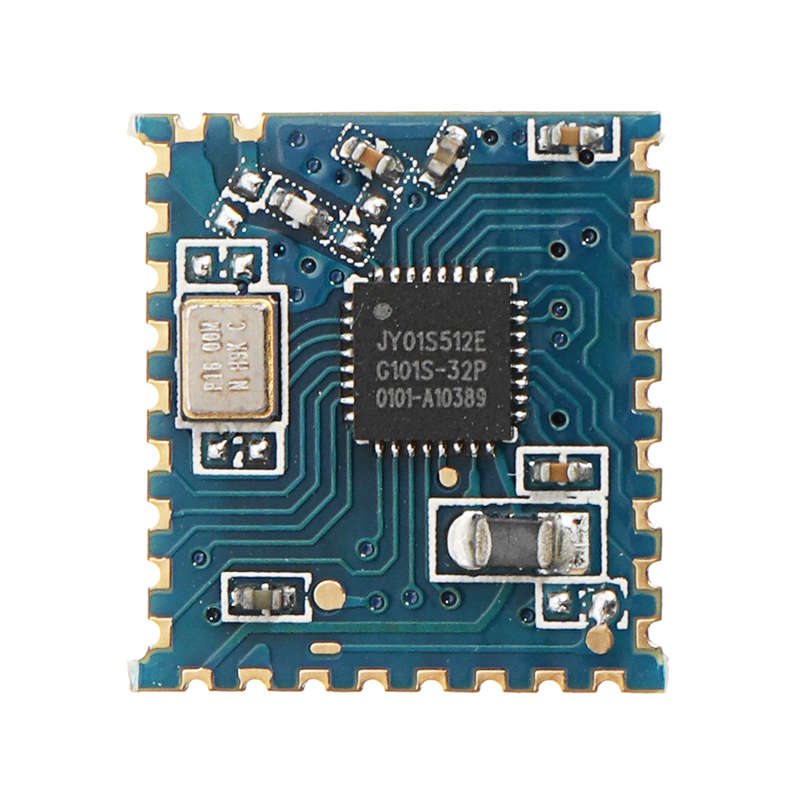

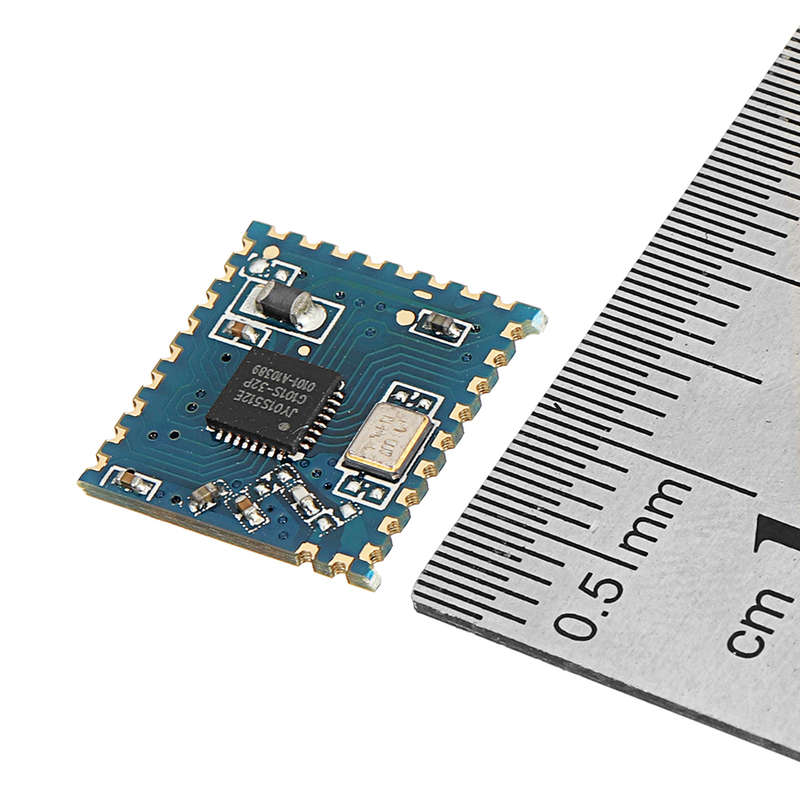

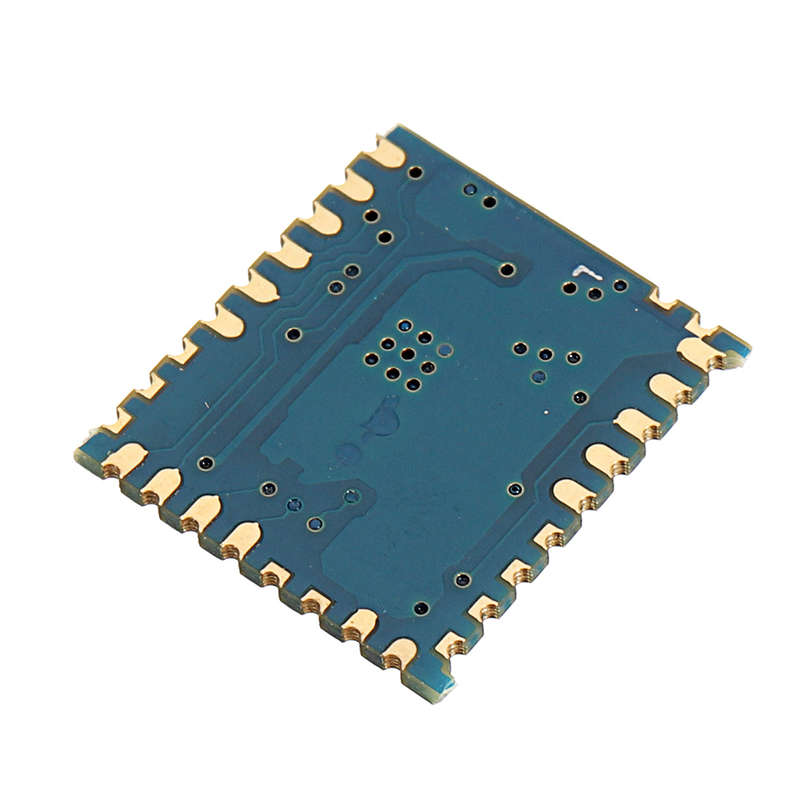

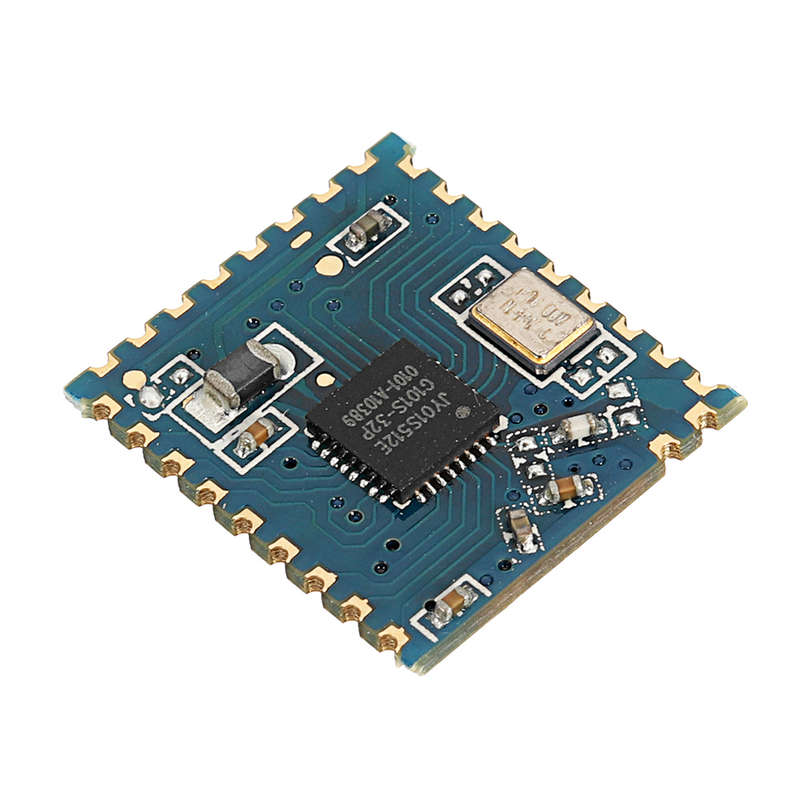

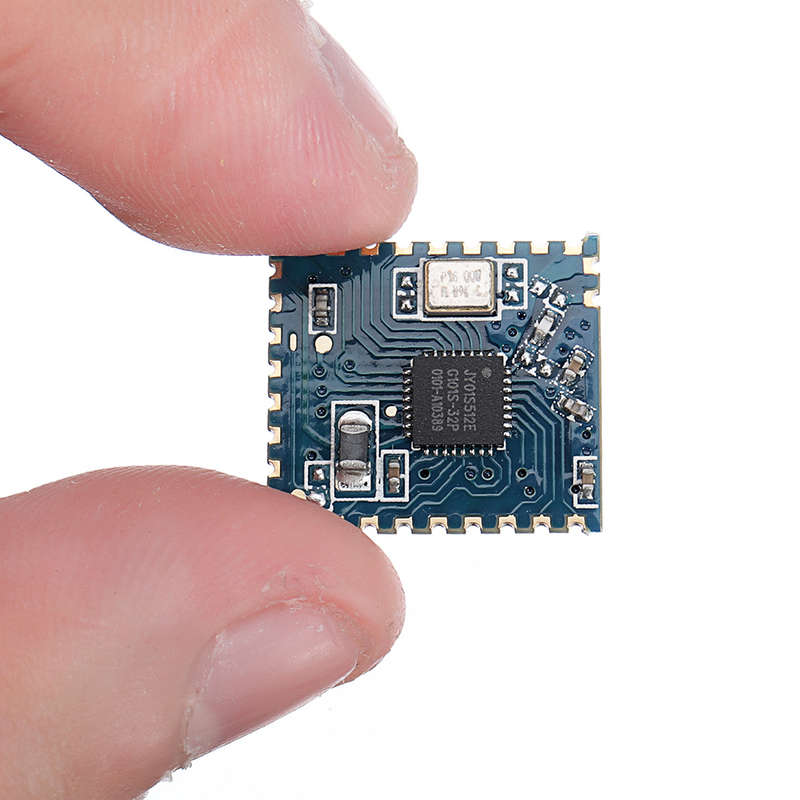

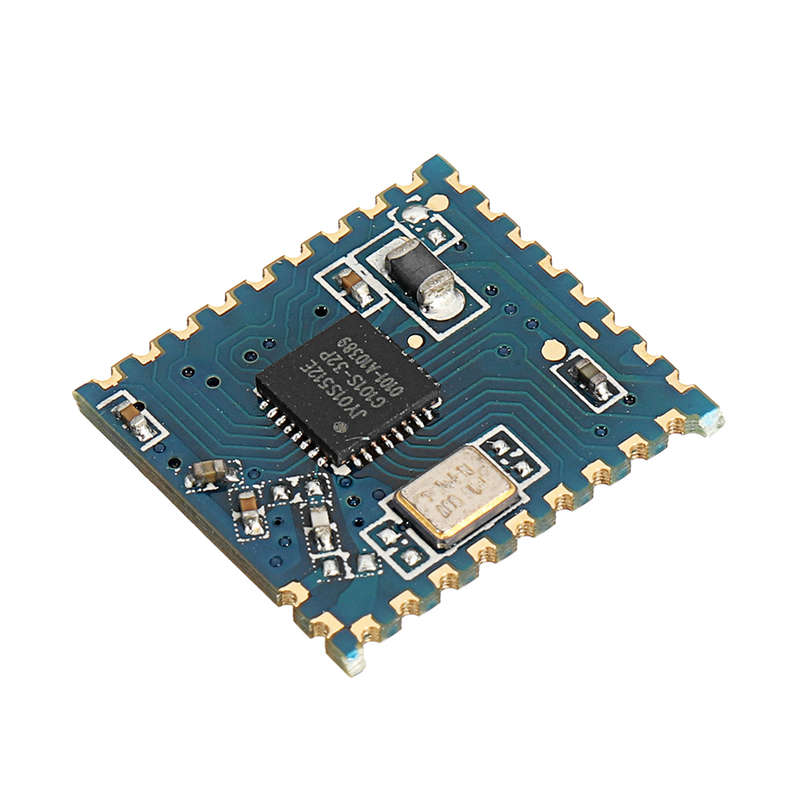

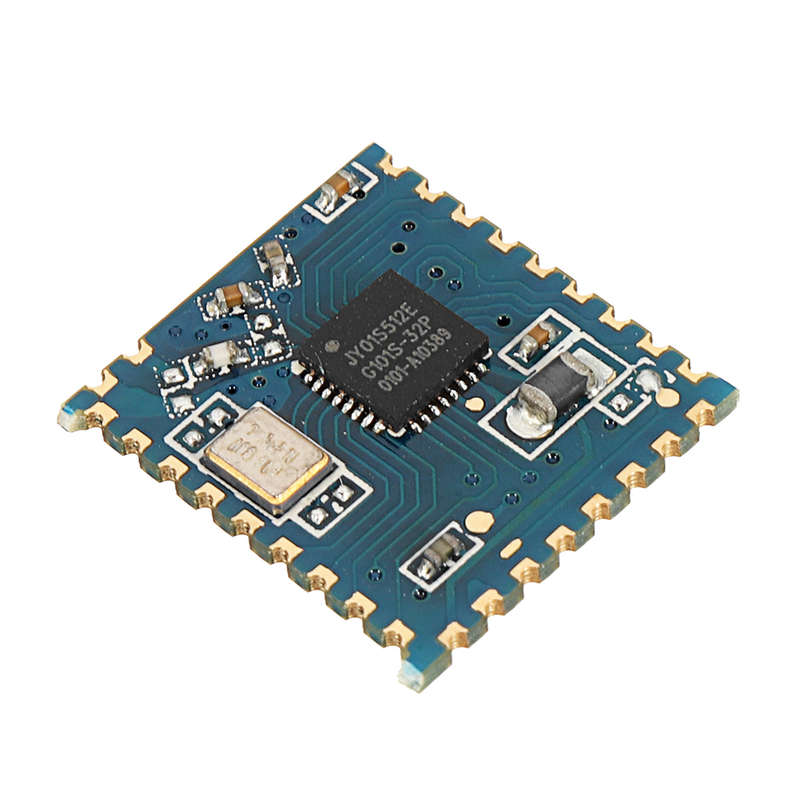

JDY-22 4.2 Ultra Low Power BLE bluetooth Module Serial Transmissions External Antenna

JDY-22 sleep pattern description:

Sleep pattern	Instructions	Functional description
Start wake-up	AT+STARTEN1	Mode 1: wake up call, users need sleep can be controlled by AT+SLEEP command, wake up can be awakened by PWRC pin low level.
Start sleep	AT+STARTENO	Mode 0: the power is very low underthis mode.The connection calls the permeable transmission current at 900uA, disconnects the connection current below 200uA (can set the broadcast interval current to 30uA), this mode PWRC pin wake up, such as the serial port in 10 seconds without data or will not be connected to sleep automatically again into sleep

Common problem description:

Problem	Answer to the question
1: howMCU disconnects the bluetooth connection in the connection state	In the connection state, the PWRC pin is pulled down, and the serial port sends AT+DISC to disconnect.
2: how much is the current when the module wakes up	All mode work current is not more than 1mA
3: How much data can be written to serial port once	No byte limit at 9600 baud rate
4: After theserial port is configured, do you need to restart it to take effect	It is recommended to restart the module when the parameters are set
5: How to test the depth of sleep current in the test module	It is recommended to test the current of VCC and GND pins

Default parameter configuration used in factory:

Sequence	Function	Factory default parameters	Instructions
1	Serial port baud rate	9600	AT+BAUD4
2	Sleep pattern	Start wake-up	AT+STARTEN0
3	Broadcast name	JDY-21	AT+NAMHJDY-21
4	Broadcast interval	200MS	AT+ADVIN1

Packageincluded:

1 x JDY-22 4.2 Ultra Low Power BLE bluetooth Module Serial Transmissions External Antenna
