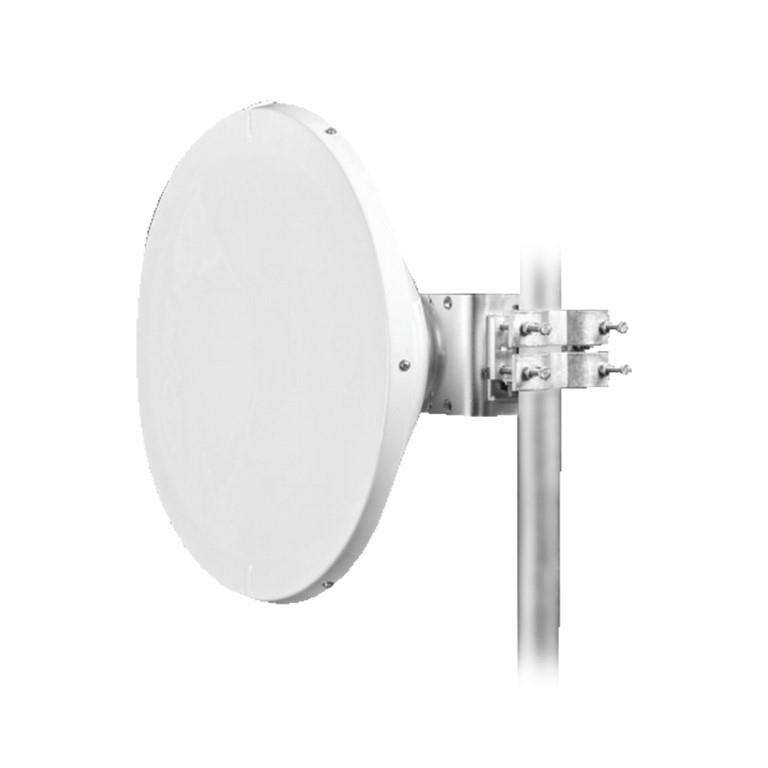

Jirous 680mm 34.1dBi 10-12GHz Parabolic Antenna JRME-680-11

Features

• Deep parabola and added collar with extra hight resistance to interference and high mechanical strength

• Extra high front to back ratio

• High neighboring links isolation

• Radom included

• Massive bracket JDMW-900 with accurate elevation and azimuth setting

• Right and left side mounting

• Extreme wind stability

Design for MW units:

• Mimosa

• Racom

• Alcoma

• Summit

• UBNT AF-11 - necessary to use JXAF-11 adapter

• Other adaptors on request

Technical parameters

Frequency range: 10.0 - 12 GHz

Gain Low band: 34.1 ± 1 dBi

Gain High band: 36.0 ± 1 dBi

Beamwidth -3 dB: 3.0° ± 0.5°

Return loss: 18 dB(10.3 - 11.7 GHz)

Front to back ratio: 61 dB

FCC standard: US FCC Part 101A (10.0-10.7 GHz); US FCC part 101B (10.7 - 11.7 GHz)

ETSI EN 302-217-4-2: Class 3

ACMA-RALI FX3: Grade B

XPD: 32 dB

Polarization: depends on the Unit installation; linear - horizontal and vertical

Parabola: ø 680 mm - Aluminium alloy, powder coated

Cover: UV steady plastic ABS

Conection: waveguide ø 19 mm

Installation on mast: ø 40 - 120 mm

Operating wind load: max. 180 km/h

Survival wind load: max. 240 km/h

We recommend mounting on the mast with minimal ø 50 mm in the areas with the expected occurrence of the strong winds.

Package

Assembled antenna (1pcs)

Massive bracket JDMW-900 is supplied in a separate pack
