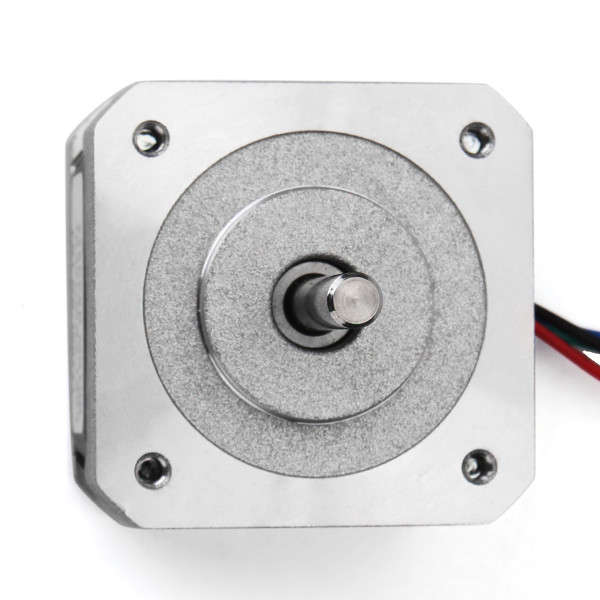

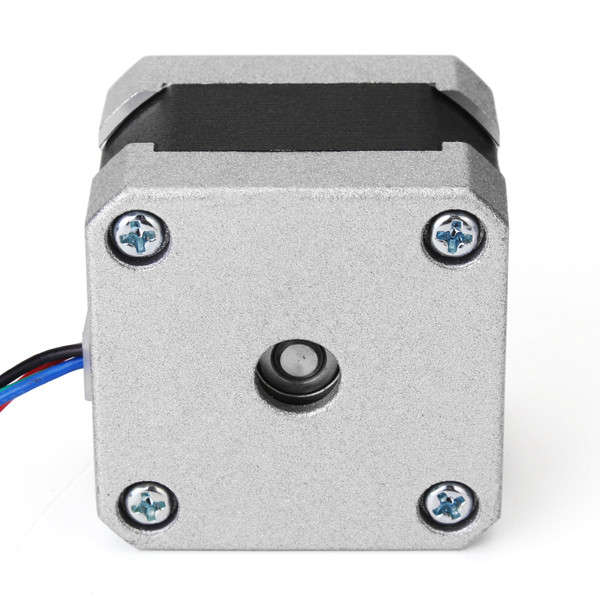

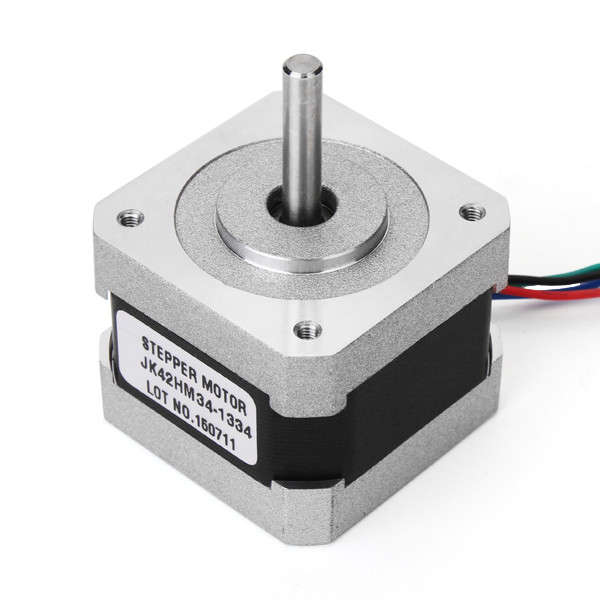

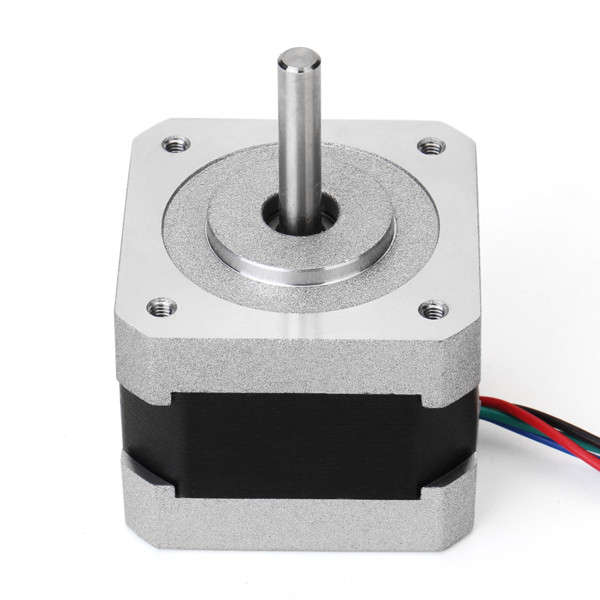

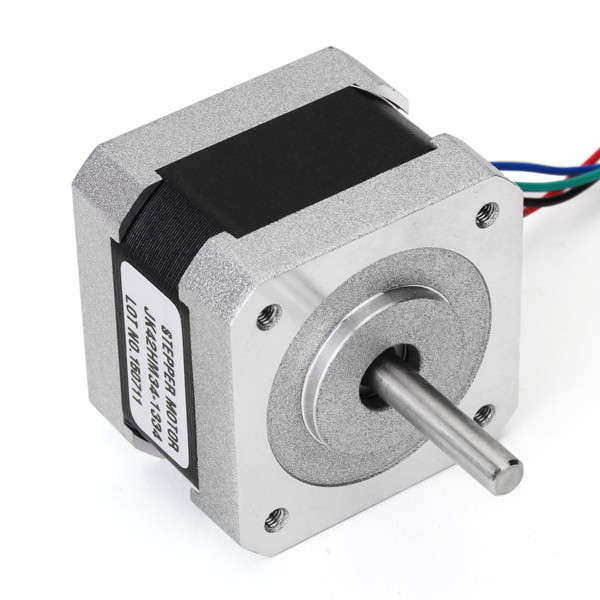

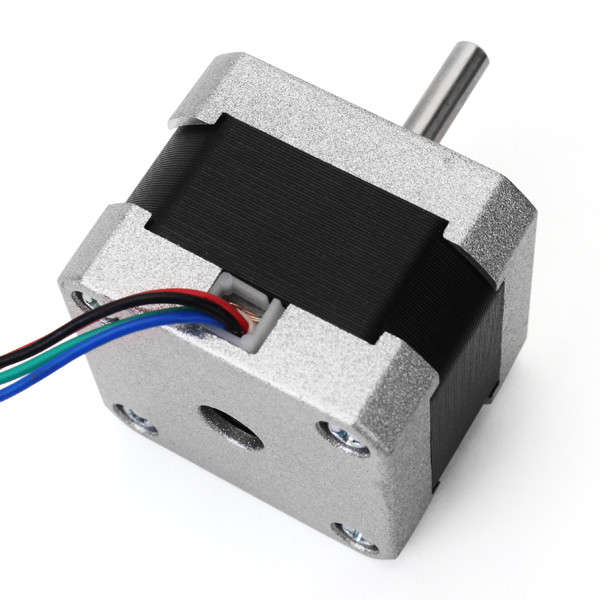

JKM NEMA17 0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC

New

20 available

R534.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3923

92.43 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651231145

Description: JKM NEMA17 0.9 Degree 42mm Two Phase Hybrid Stepper Motor 1.33A 34mm For CNC Specification:

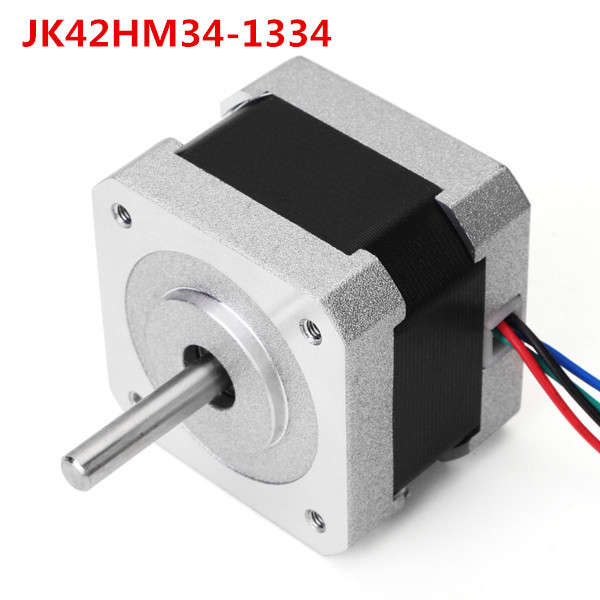

Brand: JKM Model Number:JK42HM34-1334 Diameter of axle: 5mm Motor length: 34mm Boundary Dimension:42*42mm Size: 42mm x 42mm x 34mm
Holding Torque:2.2Kg.cm Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect. Genaral Specification:

Item	Specifications
Step Angle	0.9ﾣ
Temperature Rise	80amax
Ambient Temperature	-20a~+50a
Insulation Resistance	100 M Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specification:

Model No.	Step Angle	Motor Length	Rate Voltage	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass

	( ﾣ)	(L)mm	V	A		mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HM34-1334	0.9	34	2.8	1.33	2.1	4.2	2.2	4	200	35	0.22
