JKM NEMA17 1.842 Hybrid Stepper Motor Two Phase 60mm 7.3kg.cm 1.7A Step Motor

New

20 available

R742.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3913

92.64 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651231147

Description:

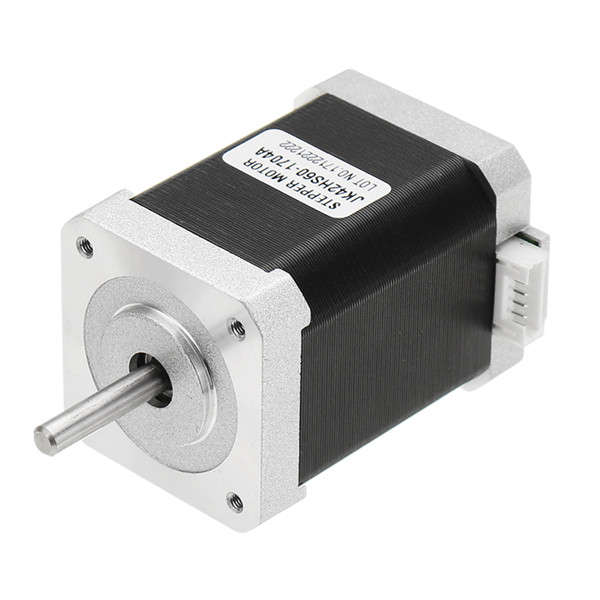

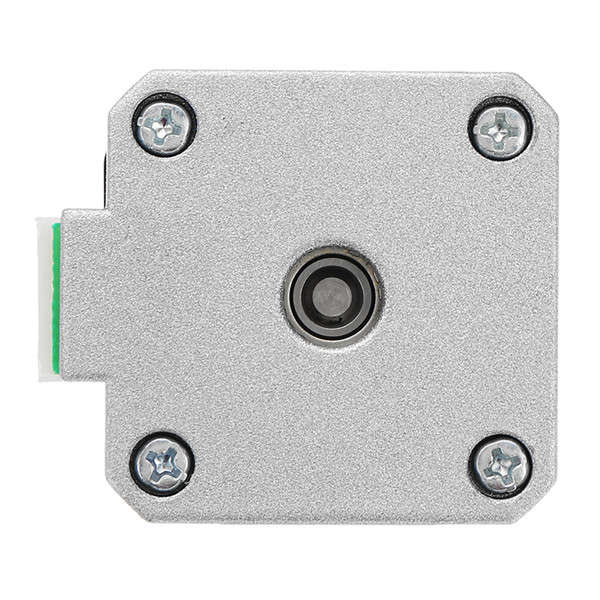

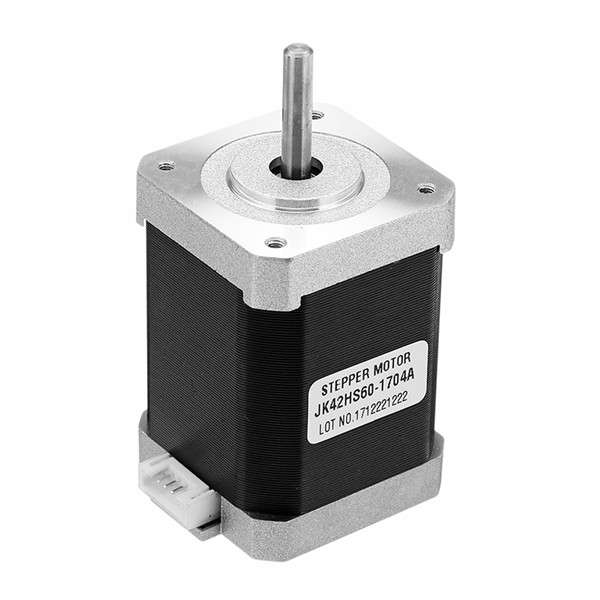

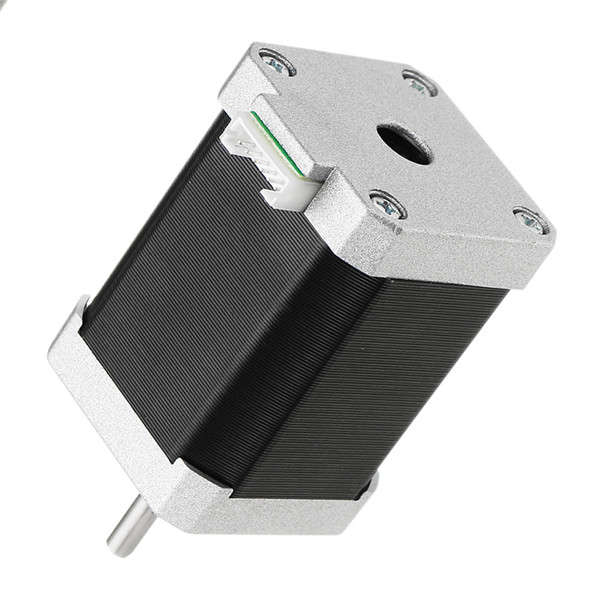

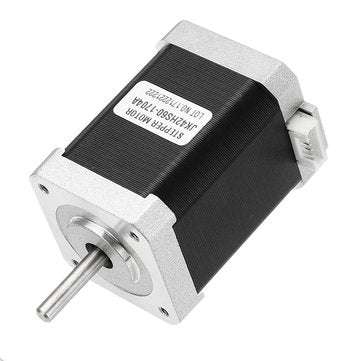

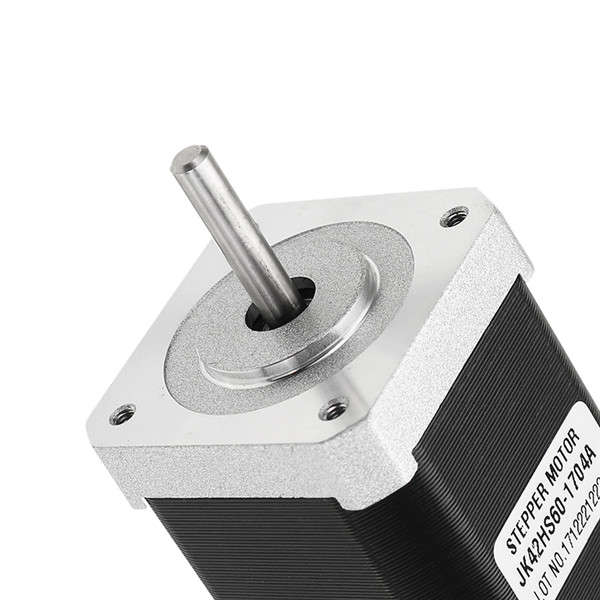

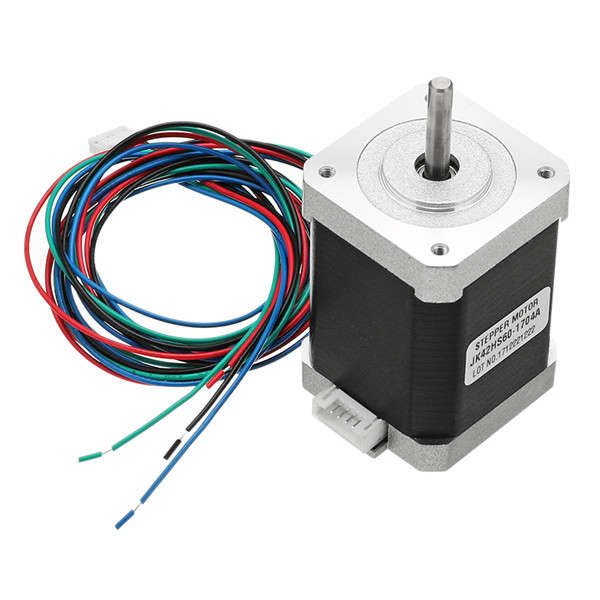

JKM NEMA17 1.8ﾣ42 Hybrid Stepper Motor Two Phase 60mm 7.3kg.cm 1.7A Step Motor

Specification:

Brand	JKM
Model	42HS60-1704A
Motor length	60mm
Diameter of axle	5mm
The front shaft length	24mm
Size	42x42x60mm
Holding Torque	7.3 kg.cm

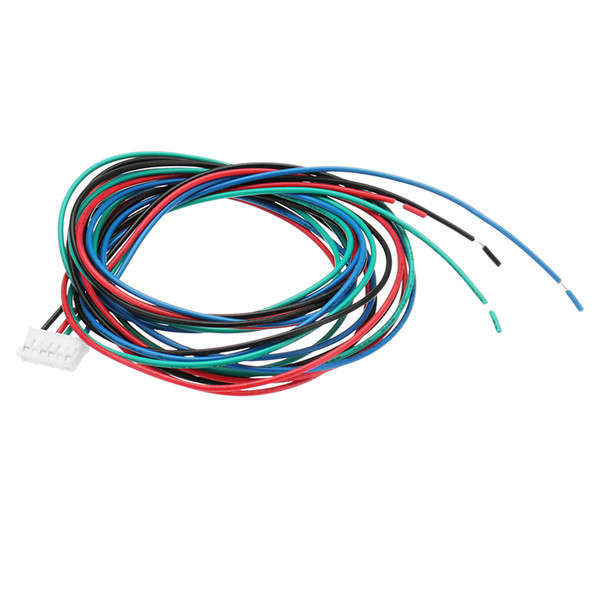

Outgoing line	1000mm
Certification	Certification: CE,ROHS
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8ﾣ
Temperature Rise	80amax
Ambient Temperature	-20a~+50a
Insulation Resistance	100 MMin. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rate Voltage /Phase	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Mass
Model No.	( ﾣ)	(L)mm	V	A		mH	kg.cm	No.	Kg
42HS60-1704A	1.8	60	5.1	1.7	3.0	6.2	7.3	4	0.55
