JKM NEMA17 42 Hybrid Stepper Motor 2 Phase 1.8 Degree 40MM for CNC Router

New

20 available

R565.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4022

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654101156

Description:

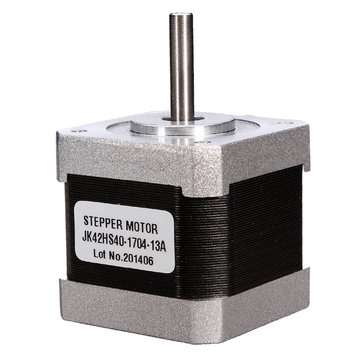

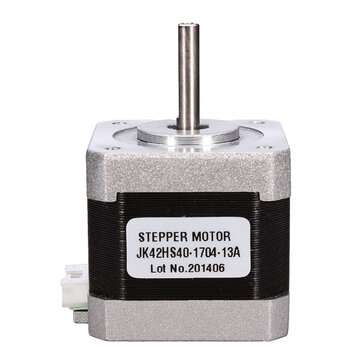

JKM NEMA17 42 Hybrid Stepper Motor 2 Phase 1.8ﾣ40MM For CNC Router Milling Machine

Brand Name: JKM
Model: JK42HS40-1704
Motor length: 40mm
Voltage: 2.55V
Diameter of axle: 5mm
The front shaft length: 24mm
Static torque: 4.2kg.cm
Wire: 4, Red B+, Blue B-, Black A+ ,Green A-
Size: 42mm*42mm*40mm
Outgoing line: 300mm (Plug is not included)
Certification : CE , ROHS
Scope: Widely used for 3D printers,monitor equipment,medical/textile/packaging machinery,stage lighting,ect

Technique parameter:

Item	Specifications
Step Angle	1.8ﾣ
Temperature Rise	80amax
Ambient Temperature	-20a~+50a
Insulation Resistance	100 MMin. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max.Radial Force	28N (20mm from the flange)
Max.Axial Force	10N

Technique Specification:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	Leads	Detent Torque	Rotor Inertia	Mass
Model No.	(ﾣ)	(L)mm	A		mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS40-1704	1.8	40	1.7	1.5	2.3	4.2	4	150	54	0.32
