JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

New

20 available

R548.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4026

92.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654101157

Desctiption:
JKM NEMA17 Two Phase Hybrid Stepper Motor 40mm 3.6kg.cm 1.68A

Specification:

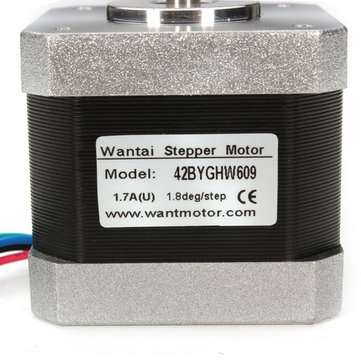

Model: 42BYGHW609
Motor length: 40mm
Diameter of axle: 5mm
The front shaft length: 24mm

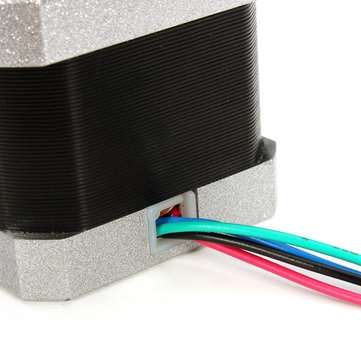

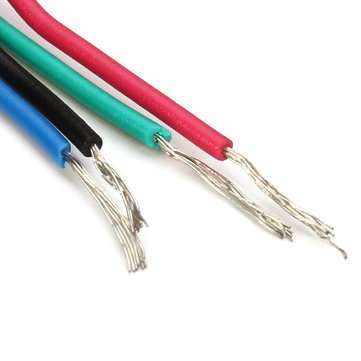

Outgoing line: 300mm (Plug is not included)

Electrical Specifications:

Model	Step Angle ( ﾣ )	Motor Length (mm)	Rate Voltage (V)	Rate Current (A)	Phase Resistance ()	Phase Inductance (mH)	Holding Torque (kg.cm)	Lead Wire (NO.)	Detent Torque (g.cm)	Motor Weight (KG)
42BYGHW609	1.8	40	3.4	1.68	1.65	3.2	3.6	4	150	0.28

General Specifications:

Step Accurency	Temperature RIse	Ambient Temperature Range	Insulation Resistance	Dielectric Strength
&pm;5%	80a Max.	20 a ~+50a	100M Min.50V DC	500V AC 1minute

Features:
High Start Speed.
Offline command input terminal.
High holding torque at high speed.
Average current control, 2-phase sinusoidal output current drive.
A stepper motor is an electric motor that is able to create sharp movements.
It is widely used in 3D printer, precision telescope, pick and place machines, linear actuators,etc.

Package Included:
1x Stepper Motor
