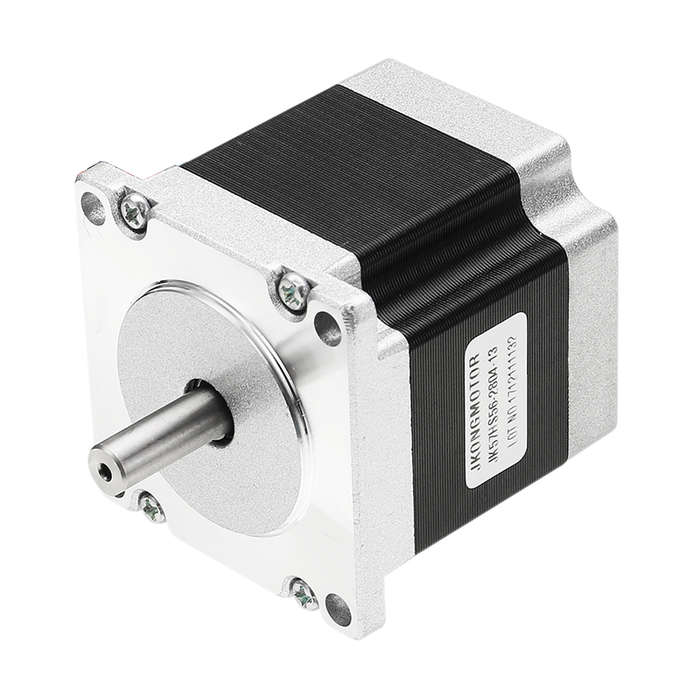

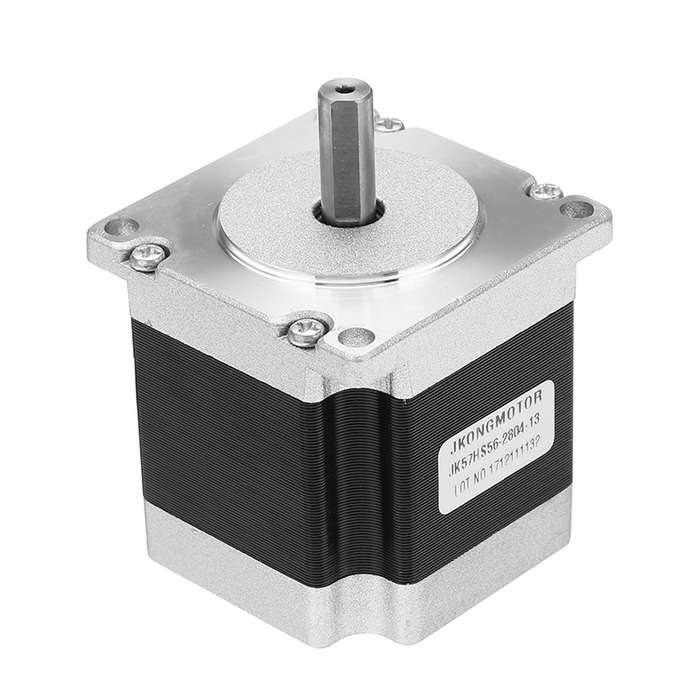

JKM NEMA23 1.857 Hybrid Stepper Motor Two Phase 56mm 12kg.cm 2.8A Step Motor

New

20 available

R868.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651231153

Description:
JKM NEMA23 1.8ﾣ57 Hybrid Stepper Motor Two Phase 56mm 12kg.cm 2.8A Step Motor

Specification:

Brand	JKM
Model	57HS56-2804-13

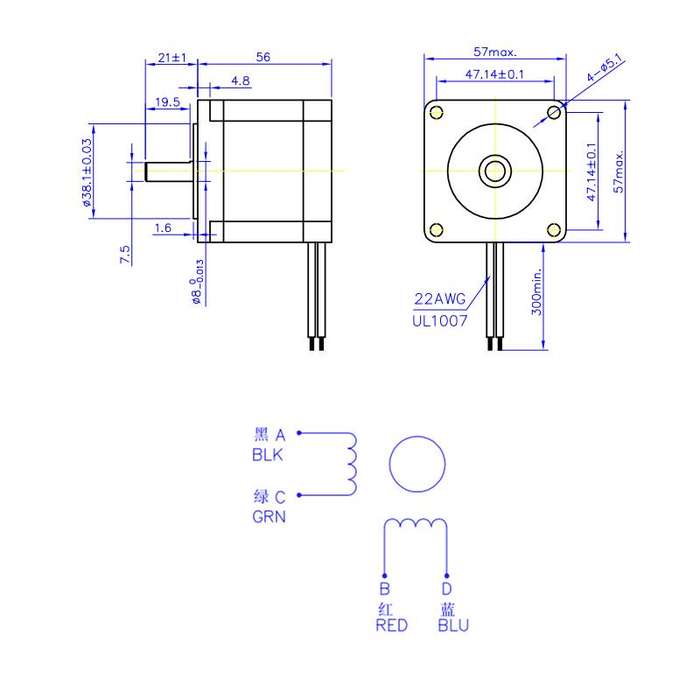

Motor length	56mm
Diameter of axle	8mm
The front shaft length	21mm
Size	57x57x56mm
Holding Torque	12kg.cm
Outgoing line	300mm
Certification	Certification: CE,ROHS
Scope	3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting,ect.

Genaral Specification:

Item	Specifications
Step Angle	1.8ﾣ
Temperature Rise	80amax
Ambient Temperature	-20a~+50a
Insulation Resistance	100 MMin. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Electrical Specifications:

Model No.	Step Angle	Motor Length	Rate Voltage /Phase	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.	( ﾣ)	(L)mm	V	A		mH	kg.cm	No.	g.cm	g.cm	Kg
57HS51-2804	1.8	56	3	2.8	0.9	2.5	12	4	350	280	0.68
