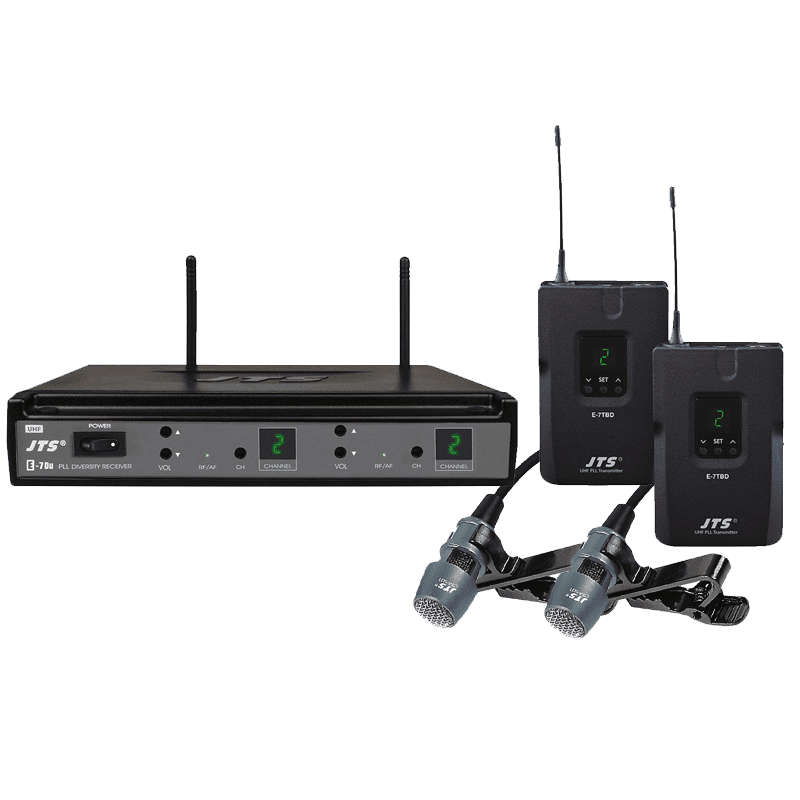

JTS E-7Du/E-7TB +CM-501×2 DUAL LAPEL MICROPHONE DIVERSITY UHF 518-542MHz

The E-7Du wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

Frequency Preparation : PLL Synthesized Control

Carrier Frequency Range : 470~960 MHz

S/N Ratio : >100dB

T.H.D. : <0.6%@1KHz

Display : Contents Channel, RF/AF Status

Controls : Power On/Off, Channel Selecting, Audio Level

Audio Output Level : -15dB

AF Output Impedance : 600

Squelch : Pilot Tone & Noise Mute

Operation Voltage : 12V 150mA (E-7R) / 12V 250mA (E-7Du)

Output Connector : 1 Ø6.3mm balanced phone jack

Dimension : (mm) 210mm(W)* 40mm(H)* 170mm(D)
