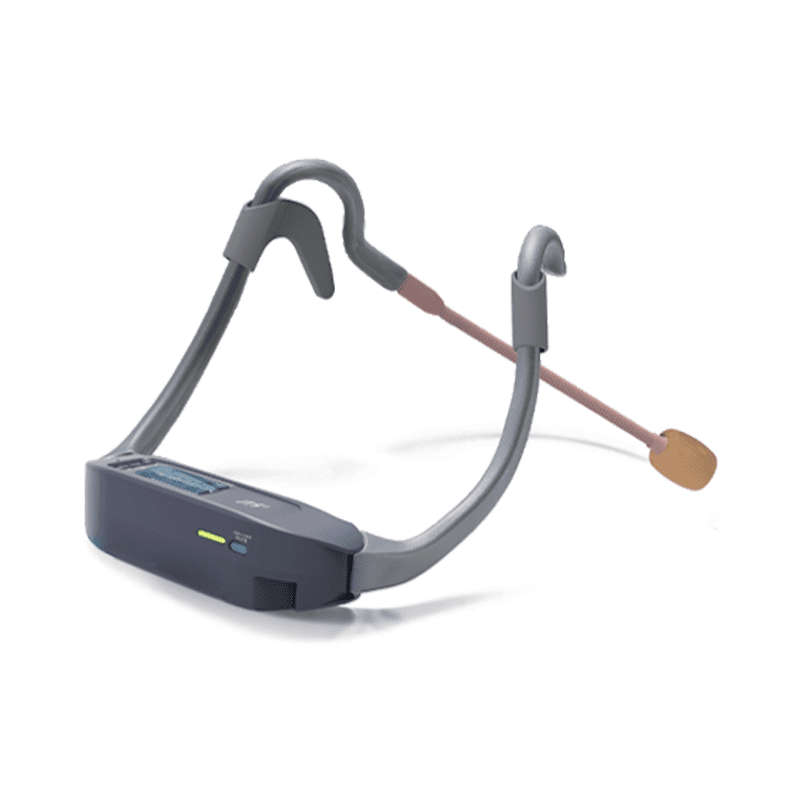

JTS HW-3 UNIVERSAL UHF HEADSET MICROPHONE 614-650 Mhz

Single Ear-hook Sub-miniature Omni-directional Microphone

Frequency Preparation : PLL Synthesized Control

Carrier Frequency Range : 470~960 MHz

RF Outputs Maximum : 10mW

Stability Frequency : ±10KHz

Frequency Deviation : ±48KHz

Display : LCD

Dual 7-Segment Display: Channel

Spurious Emissions : <-50 dBC

Function Power : ON/OFF, Mute, Channel, Group, Sensitivity, Key Lock

Audio FR : 50~17,000 Hz

Controls Power : On/Off, Mute, Channel

Battery : AM4, AAA 1.5V Alkaline x1 or MiNH Rechargeable Battery x1

Dimension : 30.5mm(W)*28(H)*95mm(D)

Selectable Frequencies : Group (MAX) : 9 , Channel (MAX) : 9
Type : Condenser

Sensitivity (1KHz) : 62±3 dB x (0.8mV) x 0dB=1V /bar
