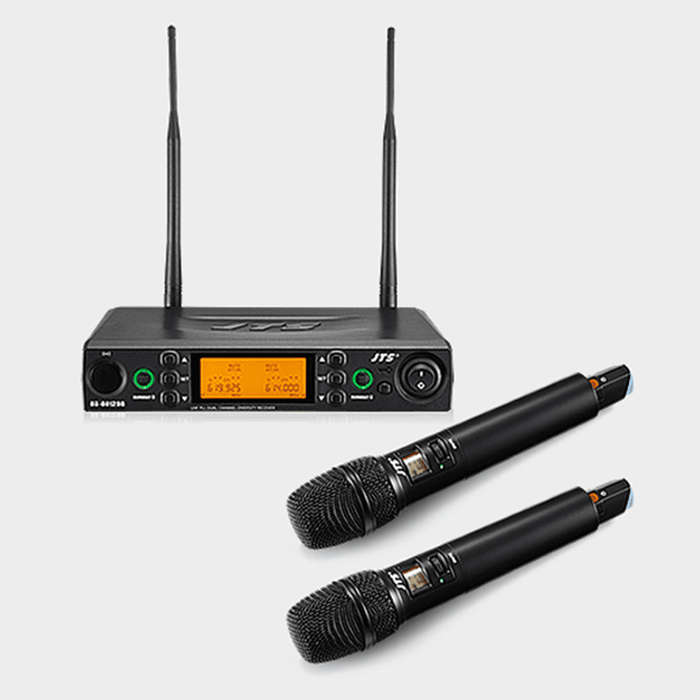

The best selling RU-8012DB offers a feature rich solution at a fantastic price. The large LED display shows all of the important information required to guarantee rock solid RF. The REMOSET technology allows the Scanned channel to be sent to the receiver with the touch of a button. Supplied with a RU-G3TH Condenser transmitter, this is a complete handheld system for the discerning singer.

Available in three frequency ranges, 606.5 - 642 MHz where a license is required or 823-865 MHz where you are able to choose to use a license or use within the 863 - 865 MHz license free range or purely license free using 863-865MHz.

Frequency Preparation : PLL Synthesized Control

Carrier Frequency : Range 470~960 MHz

Frequency Setting : Ultrasonic / REMOSET (Transmit)

Receiving Mode : Antenna Diversity

Bandwidth : 36MHz

S/N Ratio: >105dB(A)

T.H.D: <0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB

Rejection Ratio : >80 dB

Frequency Response : 50Hz~16KHz±2dB

Antenna Type : BNC Socket

Antenna Booster Power: DC12~15V/100mA

Display: LCD

Audio Output Impedance : 600

Squelch : Pilot Tone & Noise Mute

Output Connector : 2 independent balanced XLR and 2 Ø6.3mm unbalanced

Power Supply : DC12~15V/500mA

Dimension (mm) : 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes: Acutal product specifications may vary depending on model and region
RU-850LTH Frequency Preparation PLL Synthesized Control

Carrier Frequency : Range 470~960MHz

Frequency Setting : REMOSET U(Receive)

RF Outpus : Low / High

Stability : <±10KHz@Fc

Frequency Deviation : ±48KHz

Spurious Emissions : <-50dBc

Function: Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display : LCD+LED

Controls : Power, Mute, Group, Channel
Frequency, Gain Adjust, Auto Power Off, Key
Lock

Battery : UM3, AA x2
