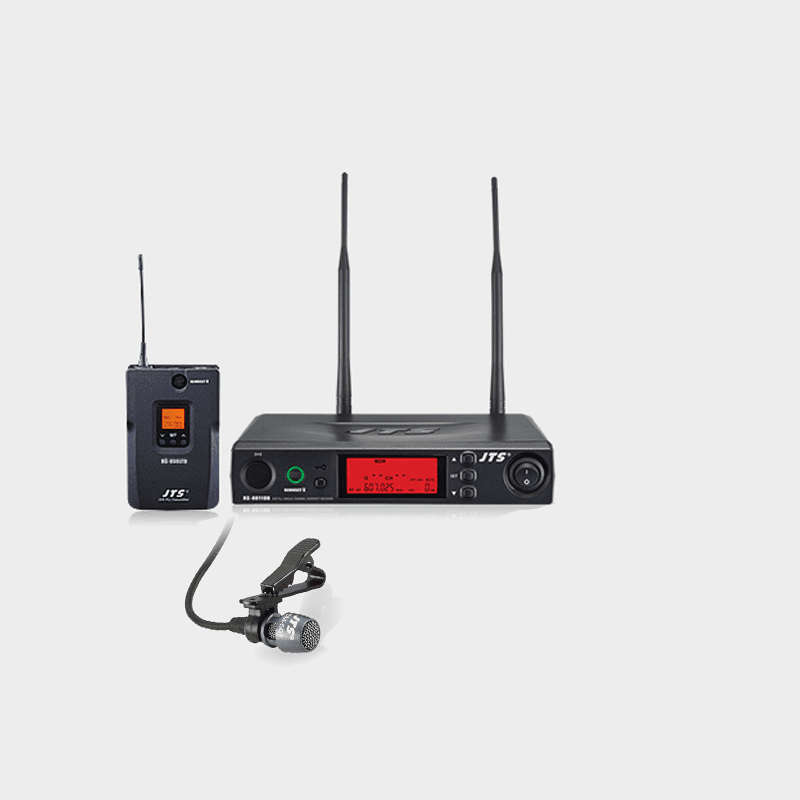

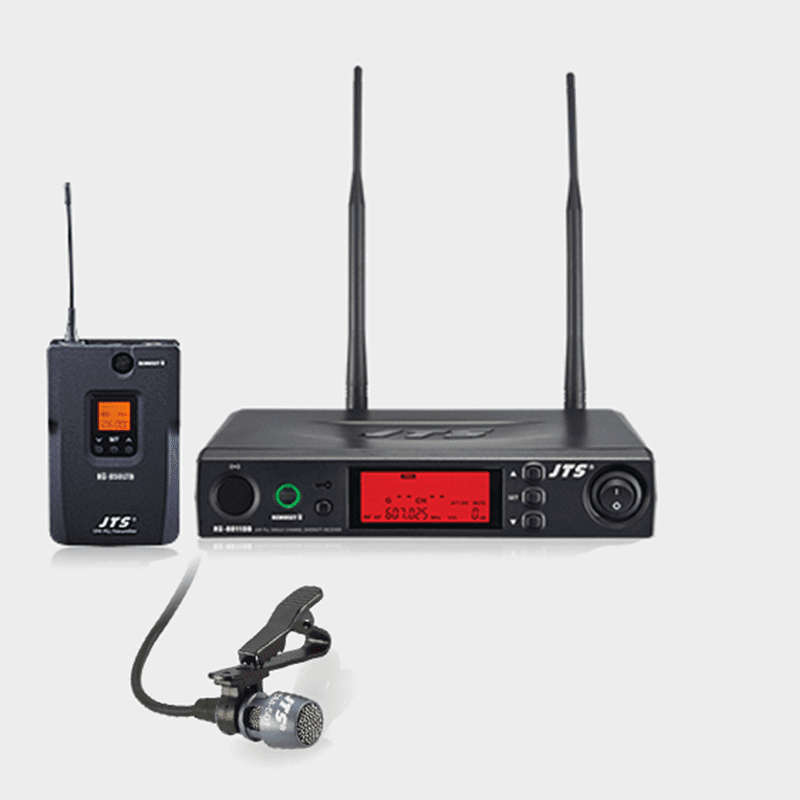

This product is a full feature version of RU-8011D / RU-8011DT. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

Frequency Preparation: PLL Synthesized Control

Carrier Frequency : Range 470~960 MHz

Frequency Setting : REMOSET U

Receiving Mode : Antenna Diversity

Bandwidth : 36MHz

S/N Ratio : >105dB(A)

T.H.D : <0.6%@1KHz
Sensitivity: -95dBm,S/N>80dB

Rejection Ratio: >80 dB

Frequency Response: 50Hz~16KHz±2dB

Antenna Type: BNC Socket

Antenna Booster Power: DC12~15V/100mA

Display : LCD

Display Contents : Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF

Meter: Frequency Scan, Audio Level, Volume

Controls : Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output

Attenuaiton(XLR),: Frequency Scan(ON/OFF)

Audio Output: Level Ref/ ±22.5KHz Dev@1KHz Tone

6.3 Phone Jack/ -10dBV

XLR : Jack/ -4dBV(Line) -24dBV(MIC)

Audio Output Impedance: 600

Squelch: Pilot Tone & Noise Mute

Output Connector: 1 independent balanced XLR and one Ø6.3mm unbalanced

Power Supply: DC12~15V/300mA

Dimension (mm) : 212.3mm(W)* 38.3mm(H)* 144mm(D)

Notes: Acutal product specifications may vary depending on region

Frequency Setting: REMOSET U(Receive)

RF Outpus : Low / High

Stability: <±10KHz@Fc

Frequency Deviation : ±48KHz

Spurious Emissions : <-50dBc

Function: Mute, Auto Power Off, Sensitivity Adjust, Low Battery

Display : LCD+LED

Controls : Power, Mute, Group, Channel

Frequency, Gain Adjust, Auto Power Off, Key
Lock

Battery : UM3, AA x2
