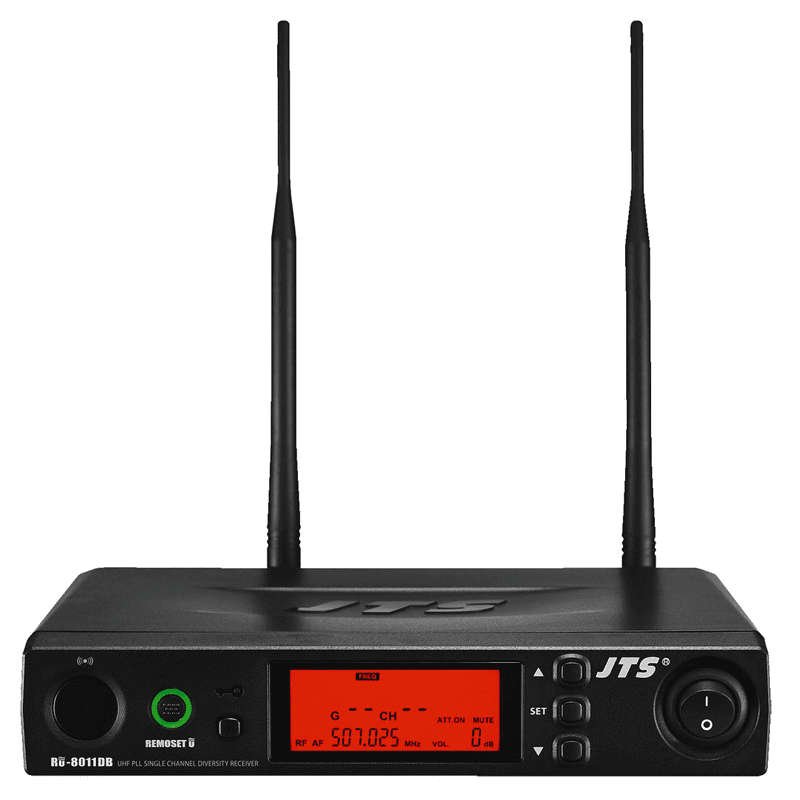

JTS RU-8011DB SINGLE RECEIVER DIVERSITY UHF 614-650 MHz

This product is a full feature version of RU-8011D / RU-8011DT. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application.

Frequency Setting: REMOSET U

Receiving Mode: Antenna Diversity

Bandwidth: 36 MHz

S/N Ratio: >105 dB(A)

Total Harmonic Distortion (T.H.D): <0.6% @ 1 kHz

Sensitivity: -95 dBm, S/N > 80 dB

Rejection Ratio: >80 dB

Frequency Response: 50 Hz ~ 16 kHz ±2 dB

Antenna Type: BNC Socket

Antenna Booster Power: DC 12~15V / 100 mA

Display: LCD (shows Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume)

Controls: Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuation (XLR), Frequency Scan (ON/OFF)

Audio Output Impedance: 600

Squelch: Pilot Tone & Noise Mute

Output Connector: 1 balanced XLR and 1 Ø6.3mm unbalanced

Power Supply: DC 12~15V / 300 mA

Dimensions: 212.3 mm (W) × 38.3 mm (H) × 144 mm (D)

Notes: Actual product specifications may vary depending on region
