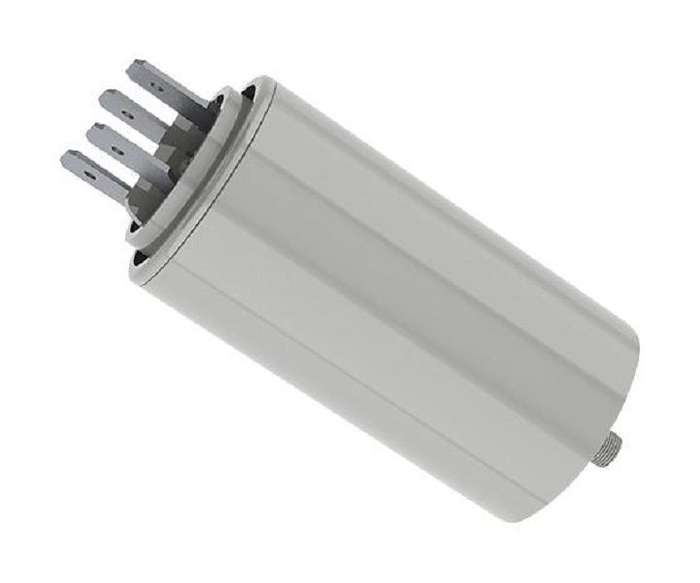

Kemet (C274AC35350AA0J) Motor Run Capacitor, Metallized PP, Can, 35 µF

Motor Run Capacitor, Metallized PP, Can, 35 µF, ± 5%, Stud Mount - M8, 470 VProduct InformationDielectric Type: Metallized PPCapacitance: 35µFCapacitor Case Style: CanCapacitor Case / Package: CanCapacitance Tolerance: ± 5%Capacitor Mounting: Stud Mount - M8Voltage(AC): 470Vdv/dt Rating: 20V/µsCapacitor Terminals: Quick ConnectHeight: 95mmStud Size - Metric: M8Lead Spacing: 13.4mmOperating Temperature Min: -25°CProduct Range: C27 SeriesOperating Temperature Max: 85°CProduct Height: 95mmProduct Diameter: 50mmSeries Name: C27Product OverviewThe KEMET C27.4 series are plastic can packaged film capacitors for AC motorapplications. These capacitors are used in series with the start winding of thesingle phase electric motor, allowing its starting and increasing the torqueduring operation. Main application fields include air fans, pumps, circulatorsand low power electric motors. The choice of the capacitor depends on expectedlife length and the mechanical connection of the user.Capacitance value ranges from 1µF to 60µFPolypropylene is used as a dielectricOperating temperature range -25 to +85°CRated voltage of 470VAC±5% standard toleranceSafety Class P0, UL94-V0 diskClass A: 30,000 hrs @ 420VacClass B: 10,000 hrs @ 470Vac
