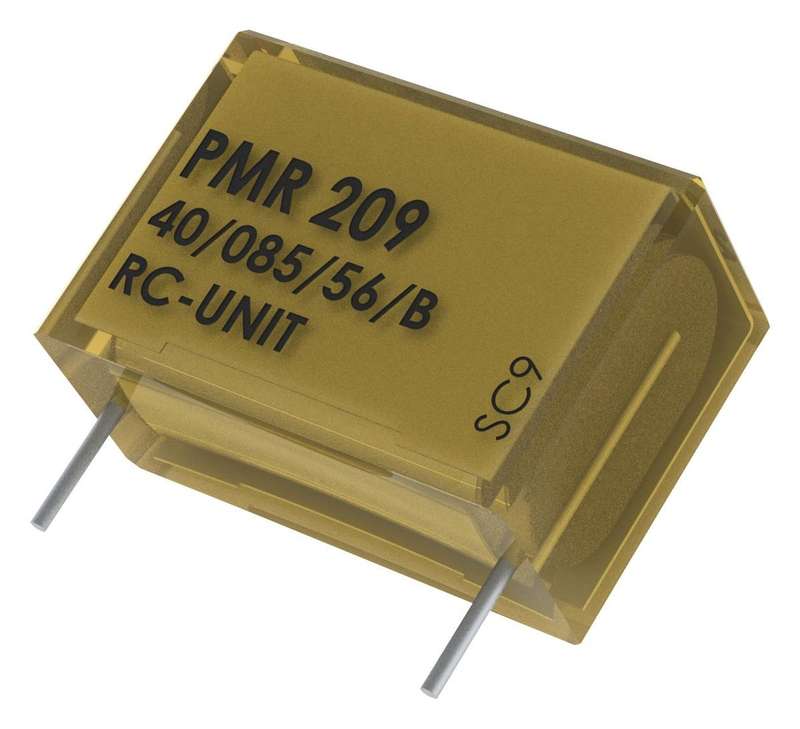

Kemet (PMR209MB5470M047R30) Safety Capacitor, Metallized Paper

Safety Capacitor, Metallized Paper, Radial Box - 2 Pin, 47000 pF, ± 20%, X2,Through HoleProduct InformationDielectric Type: Metallized PaperCapacitor Case / Package: Radial Box - 2 PinCapacitance: 47000pFSuppression Class: X2Voltage Rating Y: -Capacitor Mounting: Through HoleCapacitor Dielectric Type: Paper (MP)Capacitance Tolerance: ± 20%Voltage Rating X: 250VACdv/dt Rating: -Humidity Rating: GRADE II (Test Condition A)Lead Spacing: 15.2mmOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: PMR209 SeriesSeries Name: PMR209Qualification: -Product OverviewThe PMR209 Series are radial leaded, class X2 RC units. These are single layermetalized paper with integrated resistor for use in DC and AC application. Theimpregnated paper ensures excellent stability by giving outstanding reliabilityproperties in applications having continuous operation. PMR209 series ensureslong life even when subjected to frequent overvoltage's. These RC units haveexcellent self healing properties and good resistance to ionisation due toimpregnated dielectric.Small dimensionsHigh dU/dt capabilitySelf extinguishing encapsulationResistance range from 22ohm to 470 ohm and capacitance range form 0.047µF to0.47µFResistive tolerance of ±30% and capacitive tolerance of ±20%Rated voltage of 250VAC and 630VDCOperating temperature range -40°C to 85°CCompliant to UL standardsCompliant to climatic category IEC 40/085/56/BApplicationsIndustrial, Power Management, Consumer Electronics, Portable Devices
