Keyes 2.13 Inch 250*122 E-Ink Dispaly Screen LCD Module Black &White color

20 available / new

R730.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3533

93.40 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643382244

Introduction:

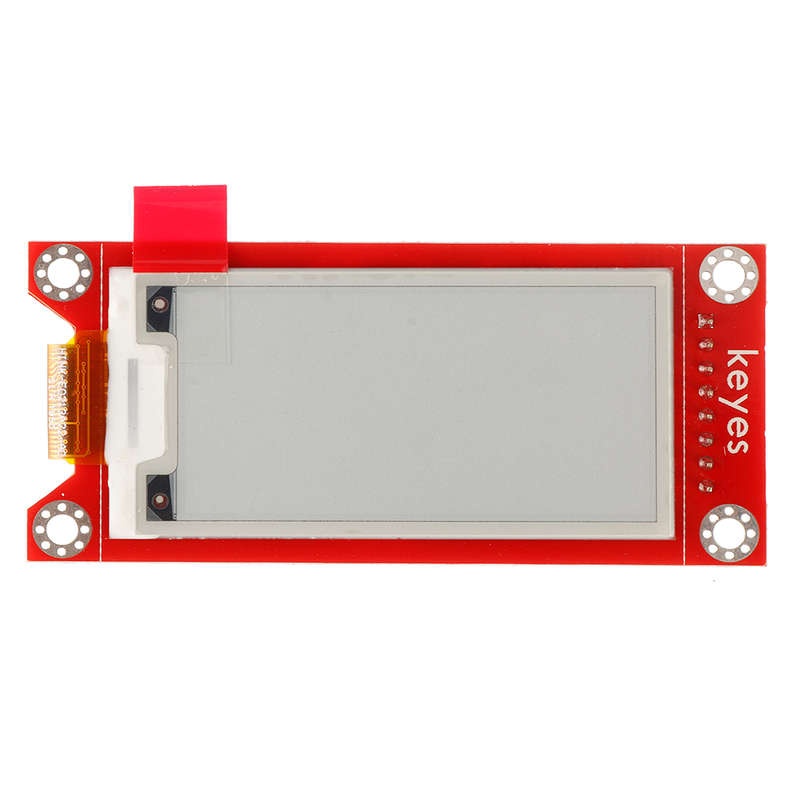

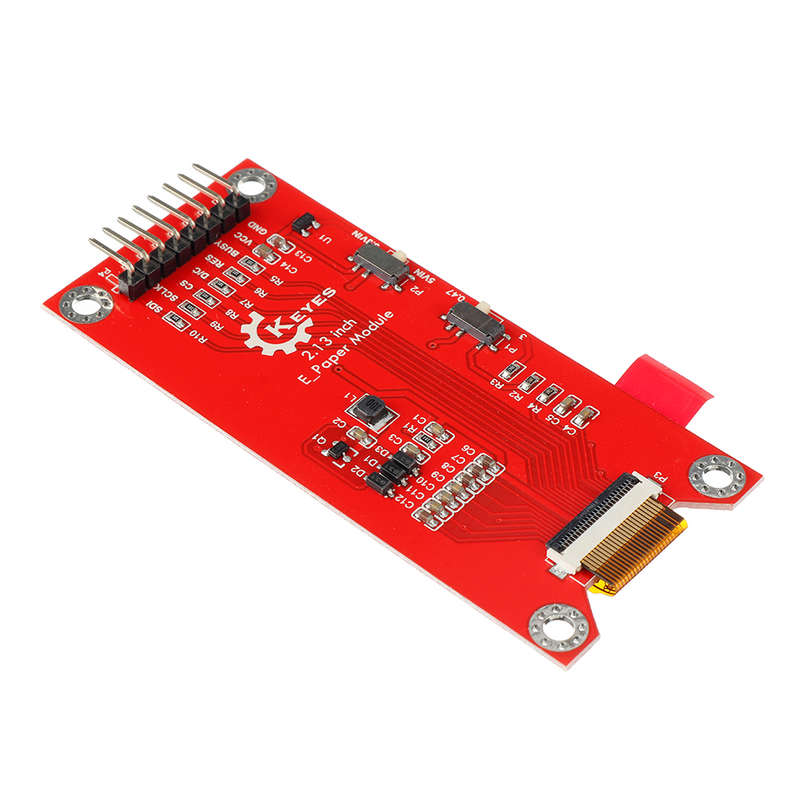

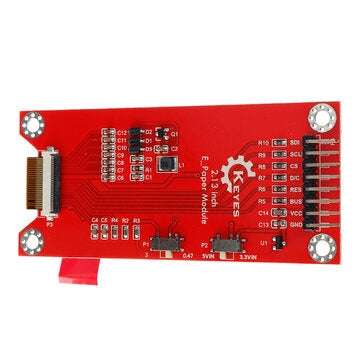

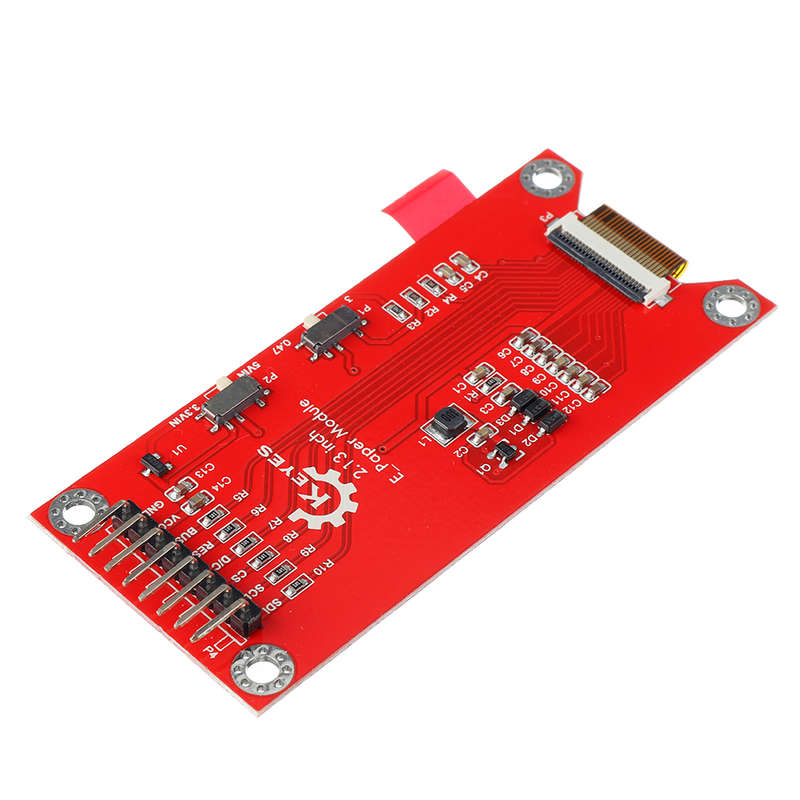

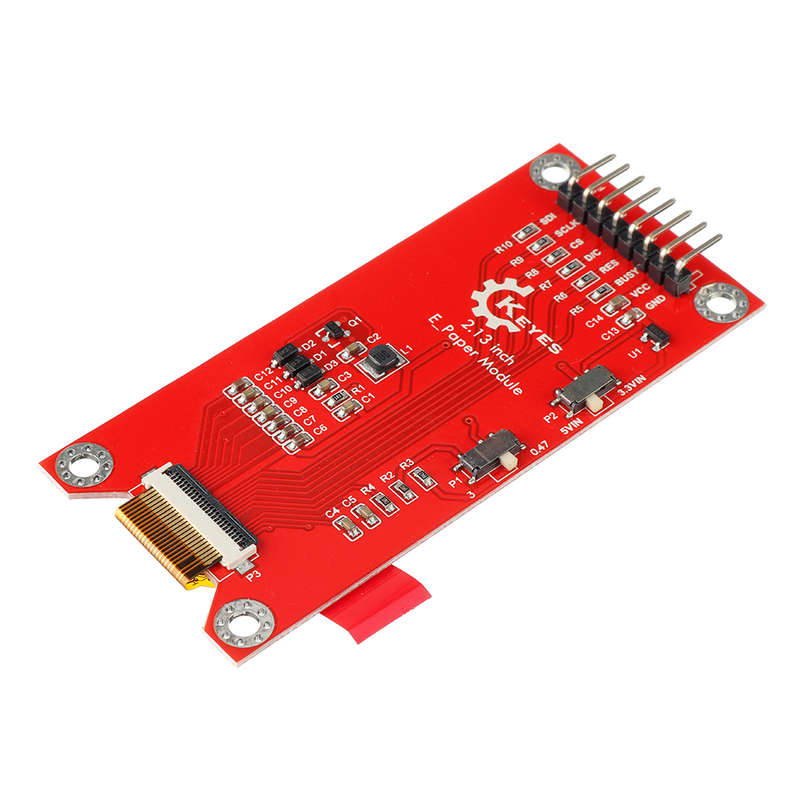

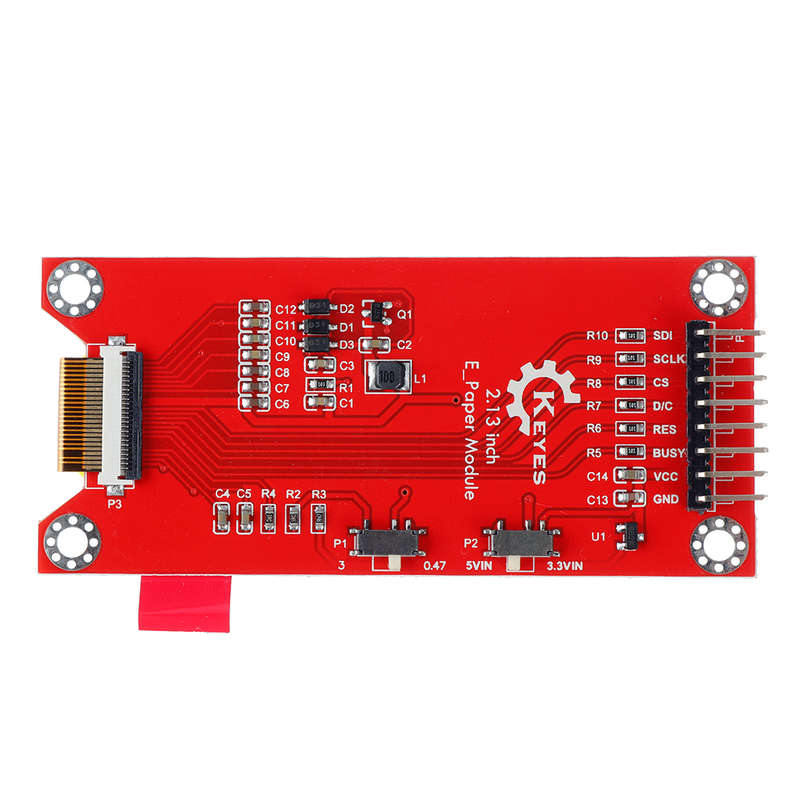

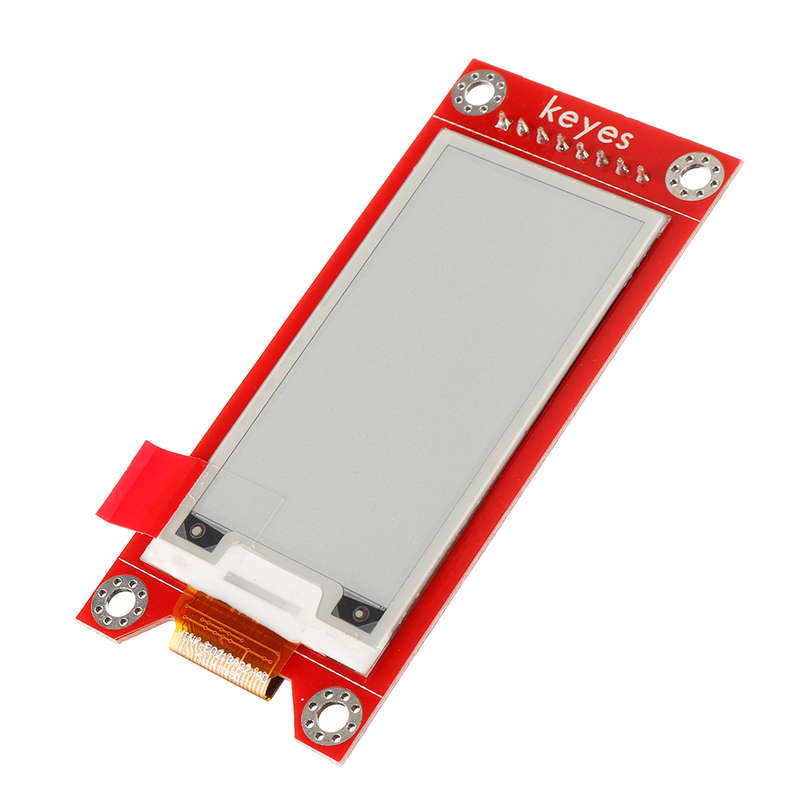

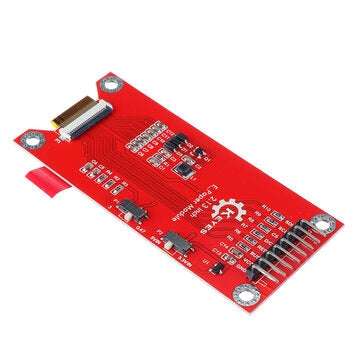

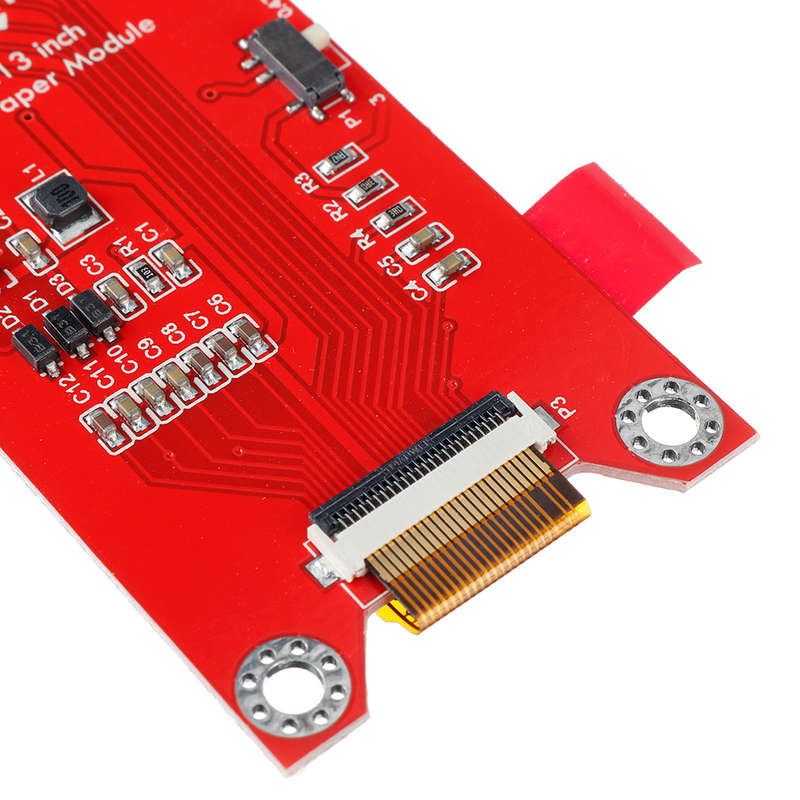

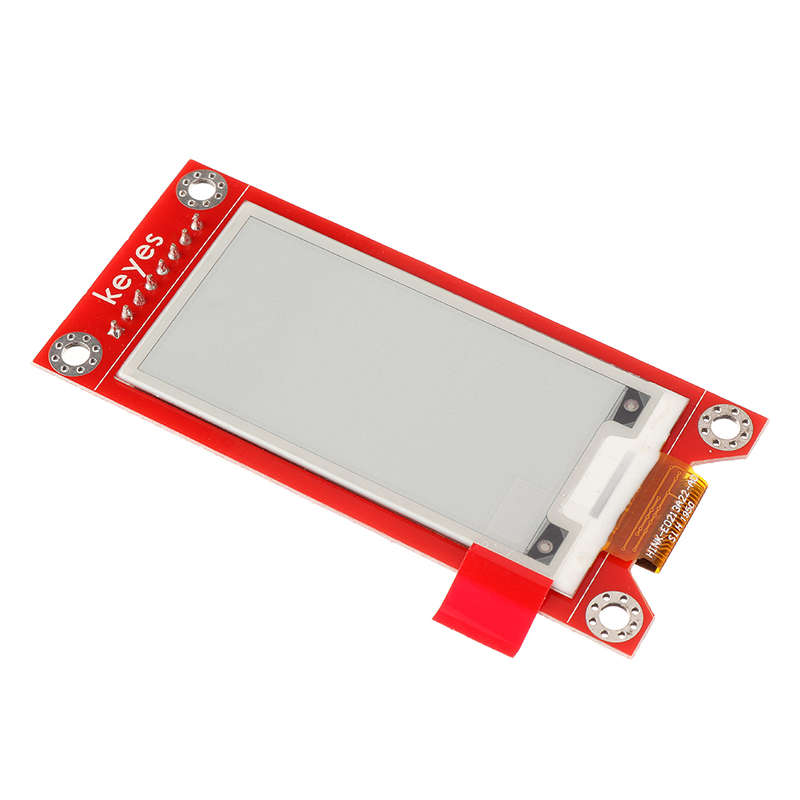

When doing DIY experiments, we often need to use the display. The Keyestudio electronic ink screen module has a 2.13-inch display with a black and white color and a resolution of 250*122. The module dynamically displays the pattern via SPI communication. There are 2 slide switches on the back. The P1 slide switch is for adjusting the display brightness. Sliding to a0.47a position, the display is brighter; sliding to a3a position, the display is darker. The P2 DIP switch is used to adjust the power supply voltage. Sliding toa5VINa position, the power supply voltage is 5V; sliding to a3.3VINa, the power supply voltage is 3.3V. The module comes with two positioning holes with a diameter of 3mm, easy to fix it on other devices . For your convenience, we also provide detailed methods for using the display module and the microcontroller. Special Note: When testing, we use the IDE software 1.8.9 version; if you use other versions of the IDE, source code may be incompatible.
Technical Details:

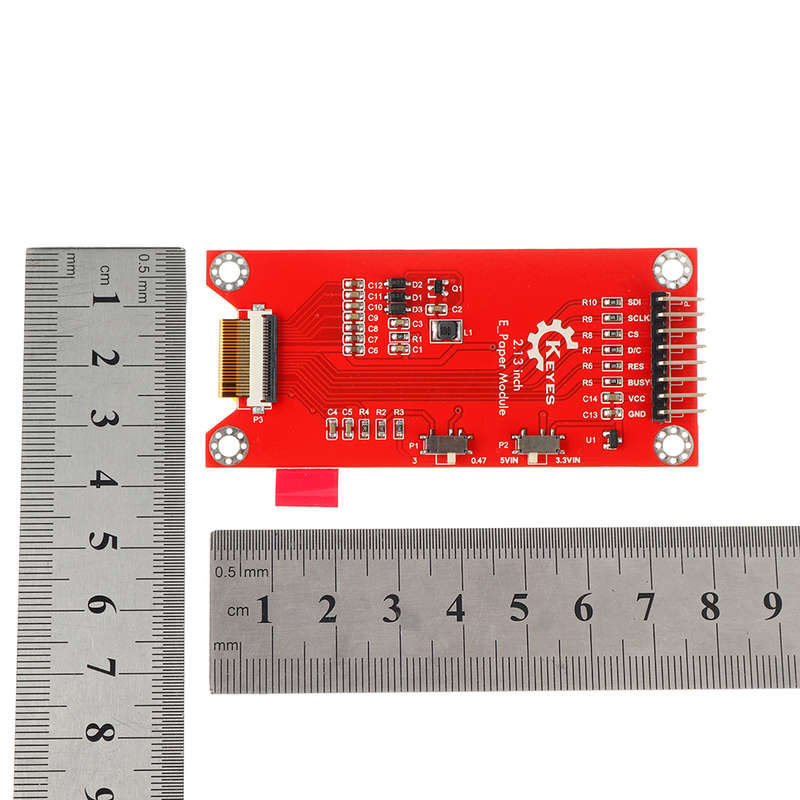

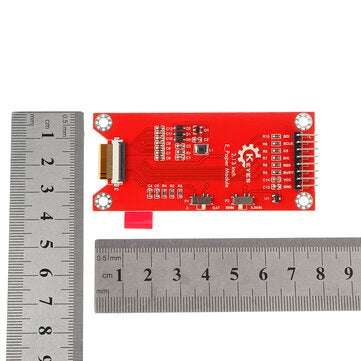

Operating voltage: DC 3.3 or 5V (slide switch control) Working current: 100mA Maximum power: 0.8W Display color: black and white Display size: 2.13 inches Display resolution: 250*122 Interface type: 8pin pin header with 2.54mm pitch Operating temperature range: -20a to +60a Positioning hole size: diameter 3mm Dimensions: 76.4*34.5mm Environmental attributes: ROHS
Package includes:
1 x 2.13 inch screen board
