Introduction:

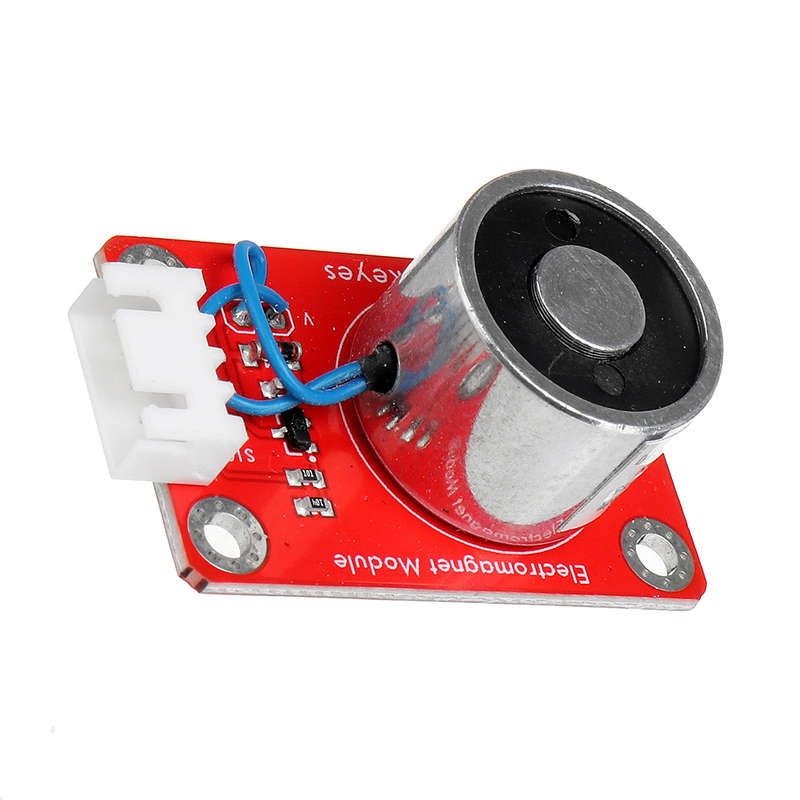

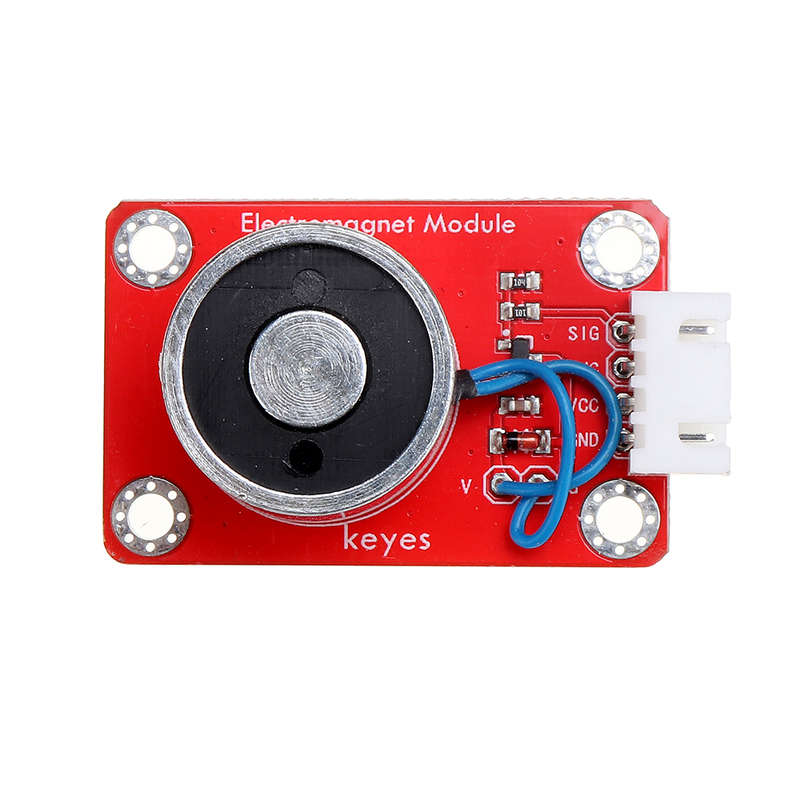

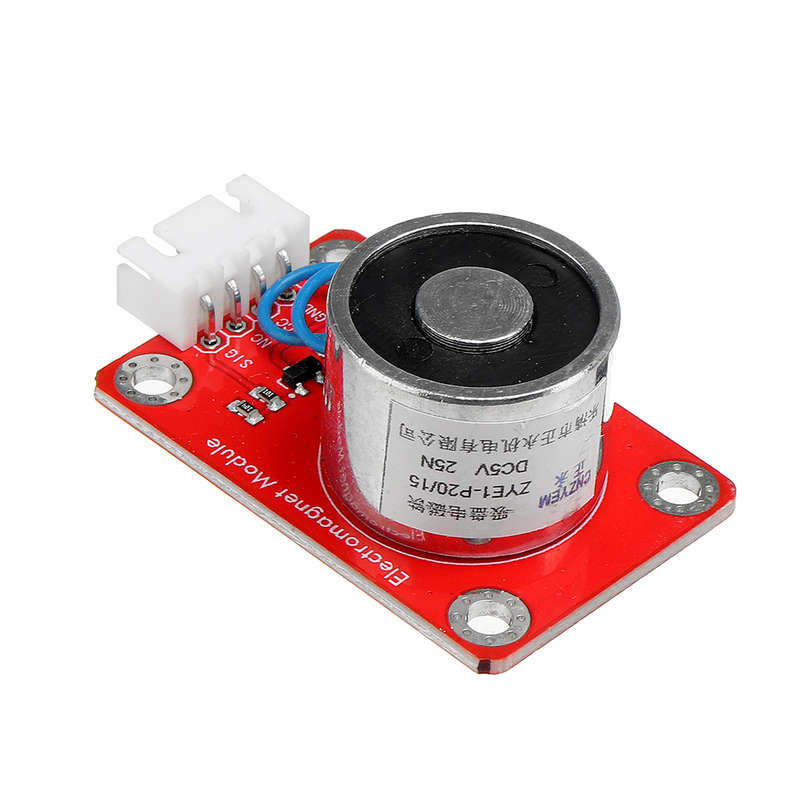

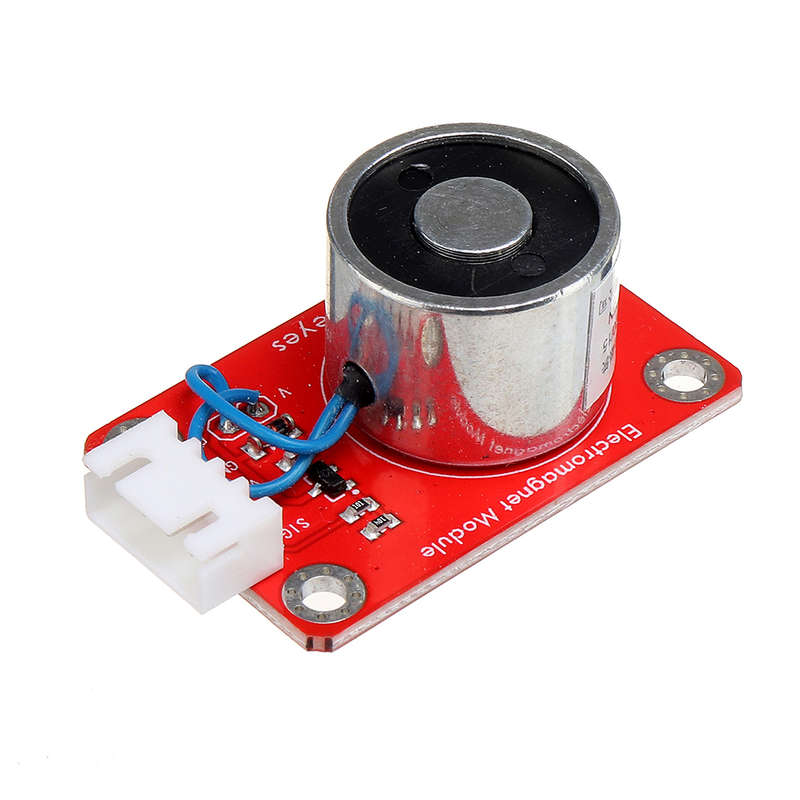

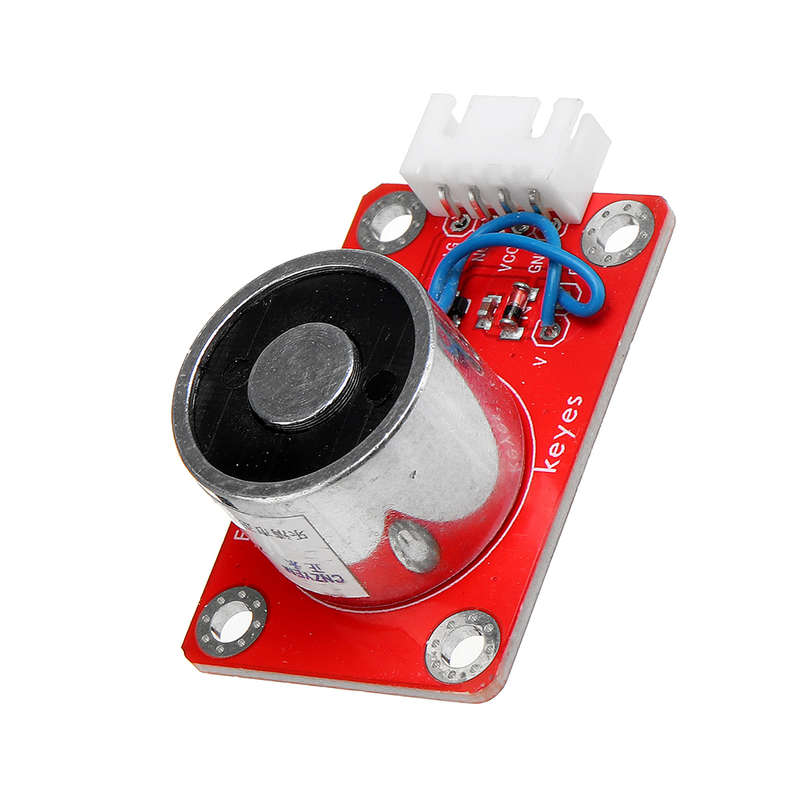

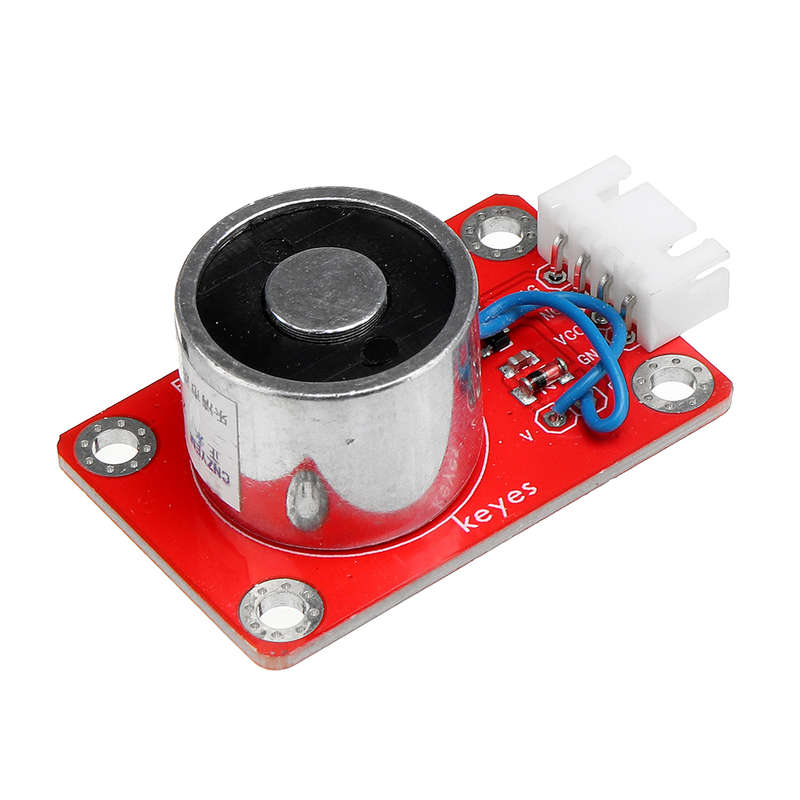

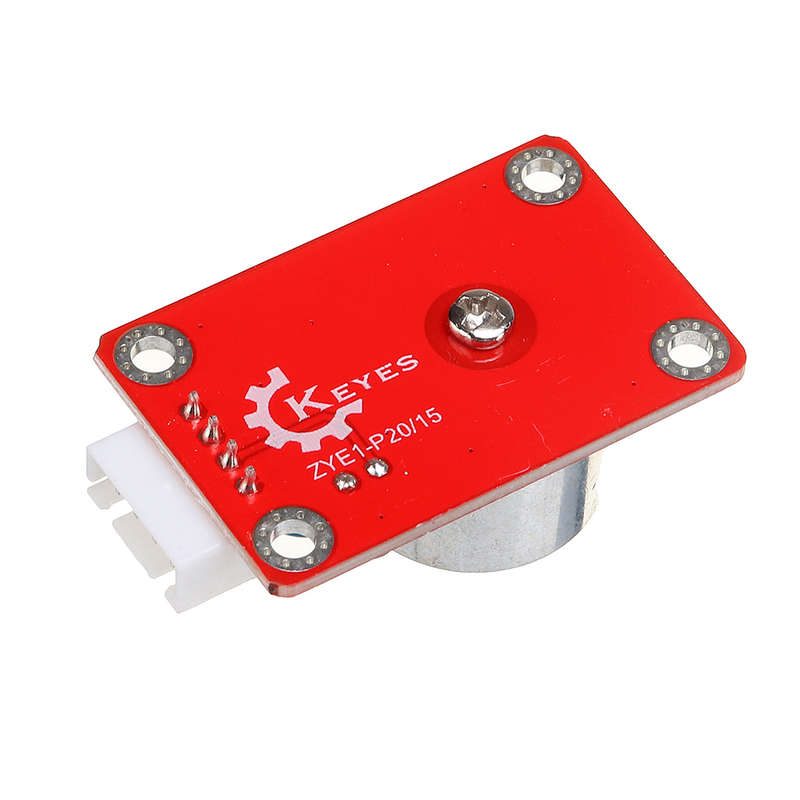

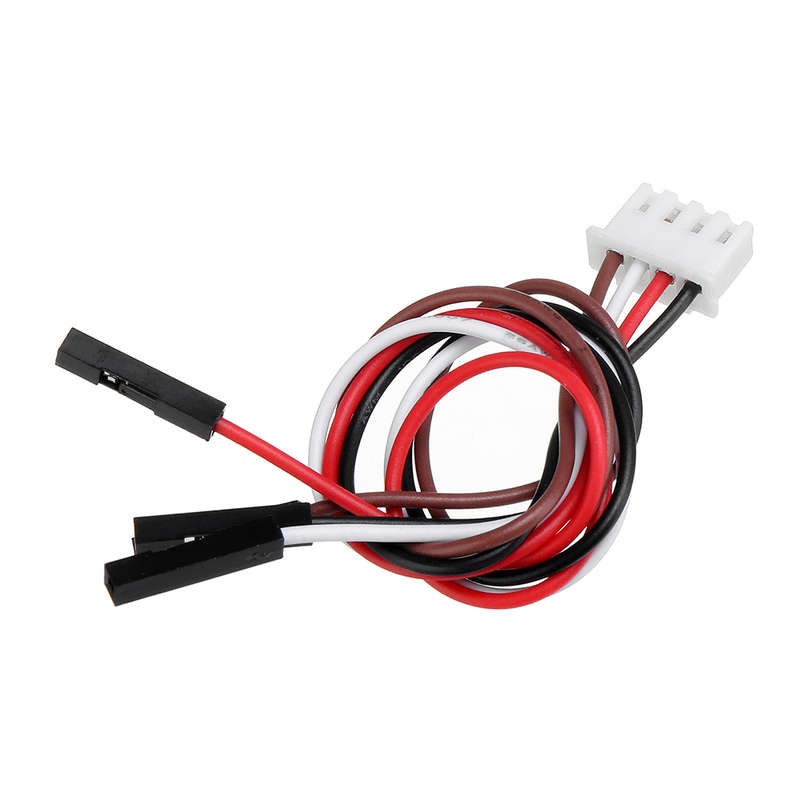

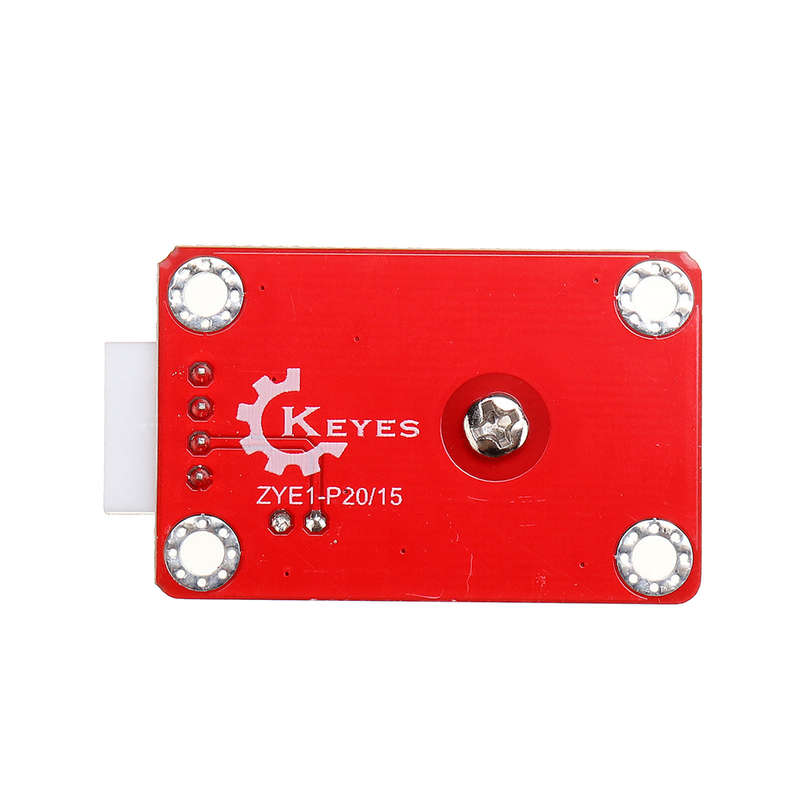

ZYE1-P20/15 electromagnet module mainly contains an electromagnet, which is a kind of magnet that generates a magnetic field by current. It uses the principle of electromagnetism, and a straight metal wire is used to pass current, then a circular magnetic field will be generated in the space around the wire. In order to concentrate the magnetic field, the coil in the electromagnet is wound into a coil, and many wires are arranged side by side, so that all the magnetic field of the coil passes through the center of the coil, forming a strong magnetic field there, enabling it to absorb 1 kg of ferromagnetic material . When in use, we can control the on and off of the electromagnet by controlling the high and low levels of the signal terminal of the module. Also connect the SIG terminal of the module to the PWM port of the arduin board, set the PWM value, and adjust the magnetic field of the module. The larger the PWM value, the larger the magnetic field. For wiring, we also distribute a 4pin wire, one end of the line is a white anti-reverse insertion interface (matching with the anti-reverse insertion white terminal on the module), and the other end is a 4pin Dupont wire female interface.
The module is compatible with various microcontroller control boards, such as arduin series microcontrollers. When using, we can stack a sensor expansion board on the microcontroller. The module is connected with its own wire and then connected to the sensor expansion board, which is simple and convenient. At the same time, the module comes with 4 positioning holes with a diameter of 3mm, which is convenient for you to fix the module to other equipment.
Feature:
Wire length: 200mm
Working voltage: DC 5-12V
Interface: 2.54mm 4pin anti-reverse interface
Location hole size: 3mm in diameter
Working current: 0.3A (maximum)
Maximum power: 3W

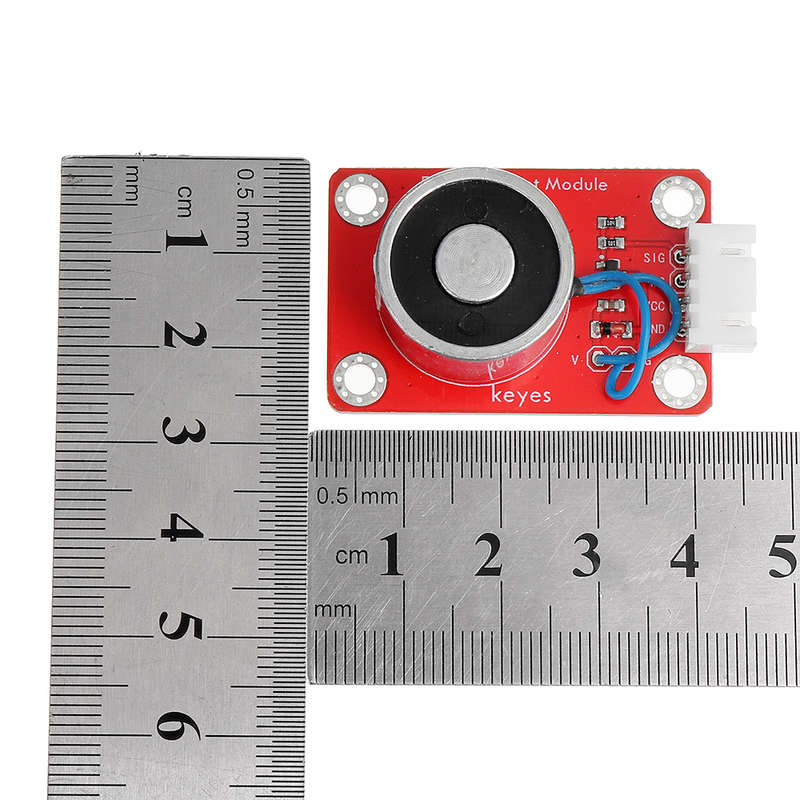

Size: 44*26*18mm
Weight: 26.4g
Package includes:
1 x ZYE1-P20/15 electromagnet module with cable
