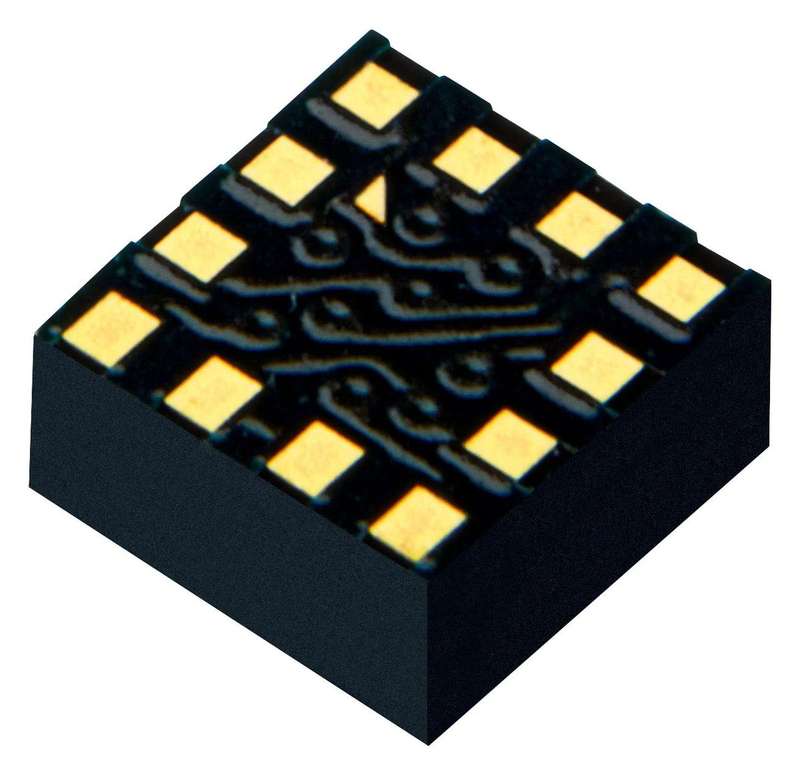

Kionix (KX132-1211) MEMS Accelerometer, Digital, 1.7 V

MEMS Accelerometer, Digital, X, Y, Z, ± 2g, ± 4g, ± 8g, ± 16g, 1.7 V, 3.6 V, LGAProduct OverviewTri-axis 16bit ± 2g/4g /8g /16g accelerometer featuring a user-configurable3-stage Advanced Data Path (ADP) consisting of a low-pass filter,low-pass/high-pass filter and RMS calculation engine. The accelerometer isavailable in a 2 x 2 x 0.9mm LGA 12-pin plastic package operating from a 1.7V to3.6V (VDD) / 1.2V to3.6V (IO_VDD) DC supplies.High resolution wake-up/back-to-sleep functions with threshold configurable downto 3.9mgUser accessible manufacturer and part ID registersSelf-test functionIntegrated free fall, directional-tap/double-tap and device-orientationalgorithmsImproved ODR accuracy in low power mode overtemperatureEmbedded 512byte FIFO buffer continues to record data even when being readUser-selectable low power or high-performance modesInternal voltage regulatorDigital I2C up to 3.4MHz and digital SPI up to 10MHzExcellent temperature performance with high shock survivabilityProduct InformationMEMS Sensor Output: DigitalMeasurement Axis: X, Y, ZAcceleration Range: ± 2g, ± 4g, ± 8g, ± 16gSupply Voltage Min: 1.7VSupply Voltage Max: 3.6VSensor Case Style: LGANo. of Pins: 12PinsSensitivity Typ: 2048counts/g, 4096counts/g, 8192counts/g, 16384counts/gSensitivity Min: 1925counts/g, 3850counts/g, 7700counts/g, 15401counts/gSensitivity Max: 2171counts/g, 4342counts/g, 8684counts/g, 17367counts/gMSL: MSL 3 - 168 hours
