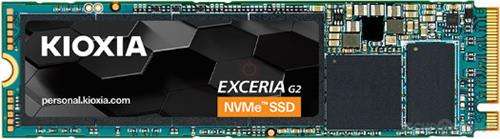

Kioxia Exceria 500GB M.2 PCIe NVMe SSD - 500GB capacity with 10% overprovisioning (46.3GB). Uses BiCS FLASH TLC 112-layer 3D NAND technology, PCIe 3.0 x4 interface with NVMe 1.3 protocol, Sequential read speed up to 2,100 MB/s and write speed up to 1,700 MB/s, Random read/write IOPS 360,000/400,000. Endurance rated at 200 TBW, MTBF 1.5 million hours, with SLC write cache and charge trap topology, Form factor M.2 2280 single-sided, dimensions 80.15 x 22.15 x 2.23 mm. Operates 0-85°C, Retail Box, 1 year warranty
Product Overview
The Kioxia Exceria 500GB M.2 PCIe NVMe SSD offers high-speed storage performance in a compact form factor. With sequential read speeds of up to 2,100 MB/s and write speeds of 1,700 MB/s, it's ideal for boosting your system's responsiveness.
Specifications
Product code: LRC20Z500GG8
Description: Kioxia Exceria 500GB M.2 PCIe NVMe Solid State Drive
Capacity: 500 GB
Overprovisioning: 46.3 GB / 10.0 %
Part Number: LRC20Z500GG8
Sequential Read: 2,100 MB/s
Sequential Write: 1,700 MB/s
Random Read: 360,000 IOPS
Random Write: 400,000 IOPS
Endurance: 200 TBW
MTBF: 1.5 Million Hours
Drive Writes per Day (DWPD): 0.2
SLC Write Cache: Yes
Form Factor: M.2 2280 (Single-Sided)
Interface: PCIe 3.0 x4
Protocol: NVMe 1.3
Name: BiCS5
Type: TLC
Technology: 112-layer
Speed: 1066 MT/s
Capacity: 4 chips @ 1 Tbit
Toggle: 4.0
Topology: Charge Trap
Dies per Chip: 2 dies @ 512 Gbit
Planes per Die: 2
Word Lines: 128 per NAND String
87.5% Vertical Efficiency
Read Time (tR): 56 µs
Program Time (tProg): 484 µs
Die Read Speed: 571 MB/s
Die Write Speed: 66 MB/s
Page Size: 16 KB
Block Size: 1344 Pages
Plane Size: 448 Blocks
Manufacturer: Phison
Name: PS5012-E12S-32
Architecture: ARM 32-bit Cortex-R5
Core Count: Quad-Core
Frequency: 667 MHz
Foundry: TSMC
Process: 12 nm
Flash Channels: 8 @ 667 MT/s
Chip Enables: 4
Controller Features: DRAM
TRIM: Yes
SMART: Yes
