Description: 1. Function ? The external temperature detector can detect the temperature Set the start and stop temperature Cycle timing, start and stop time, timer switch It is widely used in intelligent control, such as carbon heating, aquaculture,greenhouse, home life and other places. ?
2. Technical parameters ? Voltage 100-250V AC 50Hz Max Load: 16A(2) 3680W.u? Temperature Range: -40~120?ﾣC Accuracy: +/- 1% Timing Accuracy: MAX 10 minutes Type:?EU Type
Open circuit (or less than -40?ﾣC), the first row of the screen flashes display E1, -40~-45?ﾣC, display -40?ﾣC Short circuit( or more than 120?ﾣC ), the first row of the screen flashes displaty E2, 121-129?ﾣC display? 120?ﾣC Lower than -10?ﾣC, or higher than 100?ﾣC, it will not display value behind the decimal point Refrigeration mode, start temperature > Stop temperature Heating mode, start temperature < stop temperature ?
3. Mode button ? Press MODE. LCD display: temperature control mode Timing mode F01-F04
F01 Cycling timing mode, start time(ON)/stop time(OFF) cycling timing.
F02 Count down ON mode, now Ti.s OFF, delayed(start time) ON
F03 Count down OFF mode, now Ti.s ON, delayed(stop time) OFF, countdown completion, turn off the output and exit the run
F04 Count down ON Count down OFF mode, now Ti.s OFF, delayed(start time) ON, After starting delayed ( Stop time )OFF, Stop the time to finish the countdown, close out the output and exit the operation ?
Temperature correction function? ? Long press mode button on electricity, real time temperature? calibration after 2 seconds Real time temperature correction range: -9.9~9.9?ﾣC Long press the SET for 5 seconds to automatically exit, do not save modification Long press MODE button to exit, save the cuttent correction modification ?
Screen lock protection function ? Press the RESET to restore the screen for one second, and restore the factory settings. Long press MODE for 5 seconds, Then the heating or the coolling mode will flash, then it can work ?
Memory function after power off ?
Package included: ? 1 x Thermostat Timer Socket with temperature sensor 1 x Box

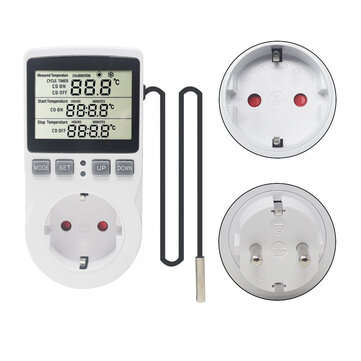

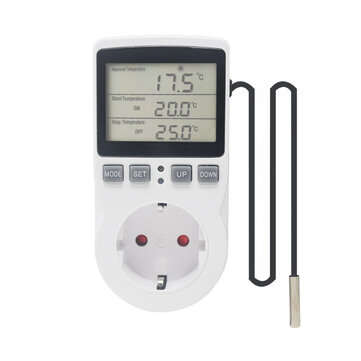

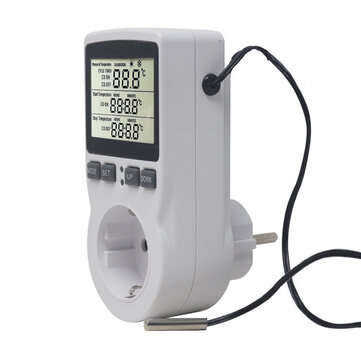

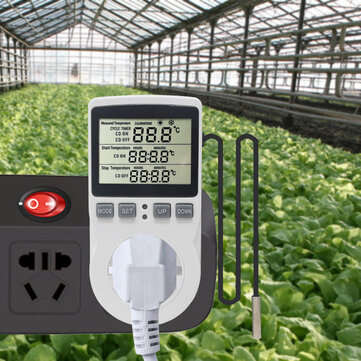

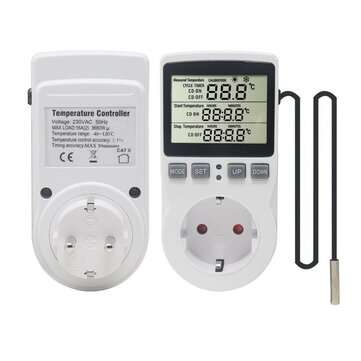

Details Pictues:
