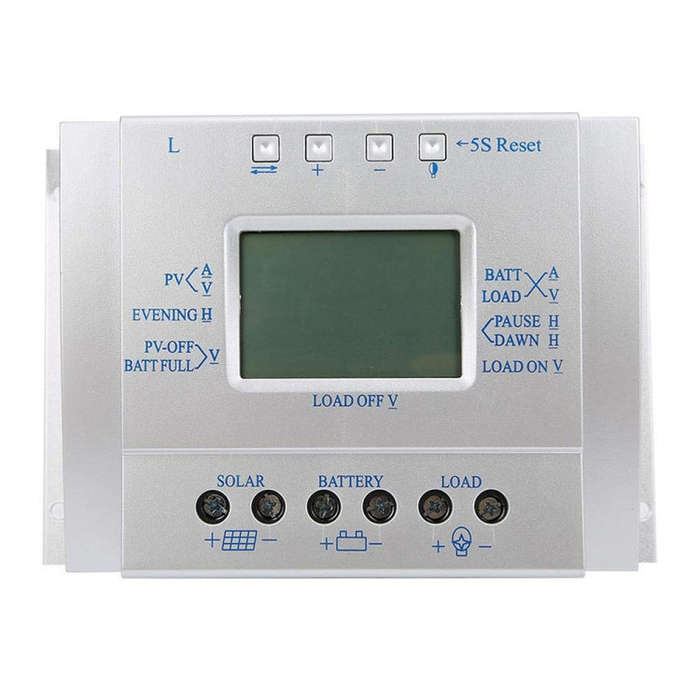

L60 12V/24V 60A Solar Controller Power Voltage Current LCD Display Solar Charge Controller
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD05577830
Bob Shop ID
607119235
parameter:
1. Rated voltage: 12/24V lead-acid battery voltage
2. Maximum charge and discharge current: 60A
3. Solar panel input voltage range: maximum 18V-750W/36V-1500W
4. Load working time setting: 1-24 hours adjustable
5. Charging mode: PWM
6. Overvoltage protection: 17V/34V
7. Fully disconnected: 13.8V/27.6V adjustable
8. Undervoltage disconnection: 10.8V/21.6V adjustable
9. Over-discharge recovery voltage: 12.2V adjustable
10. Wiring specification: less than or equal to No. 3 AWG (22 square millimeters)
11. Working environment temperature: -25-55 degrees Celsius
Features:
1. This controller is used for solar off-grid systems or solar street lights, solar power generation systems, etc., to adjust charging and discharging. It can prevent the battery from over-discharging and causing damage.
2. 12V/24V automatic identification of lead-acid battery voltage, maximum charge and discharge current 60A

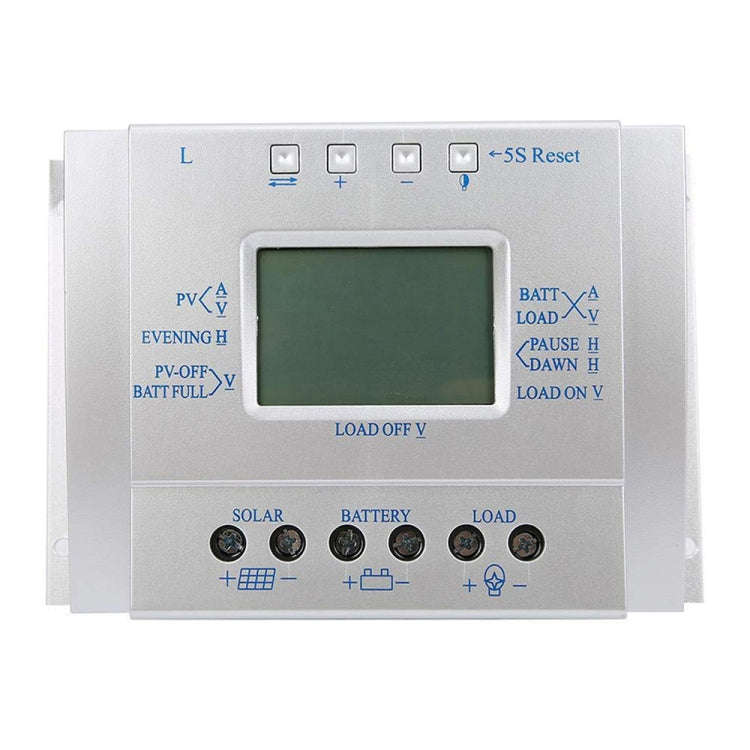

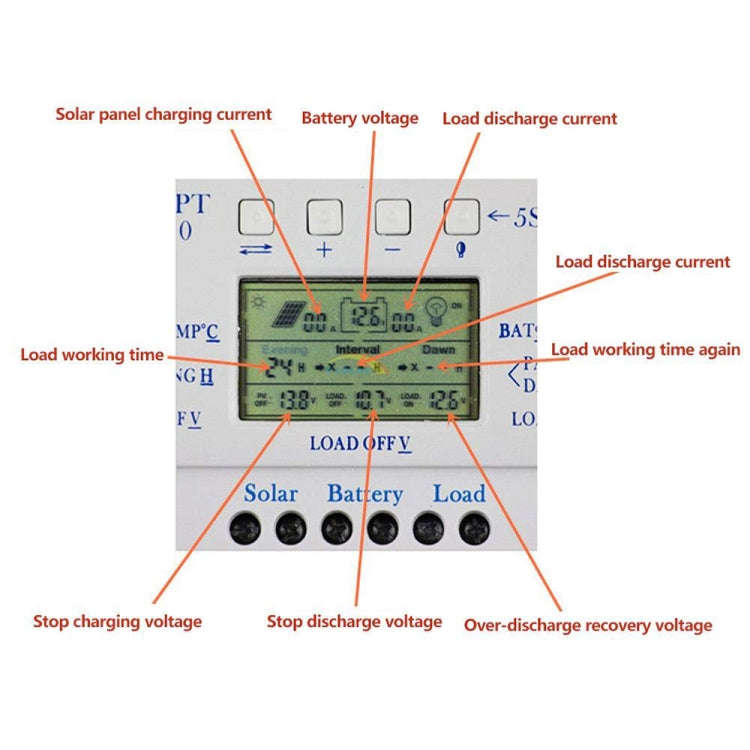

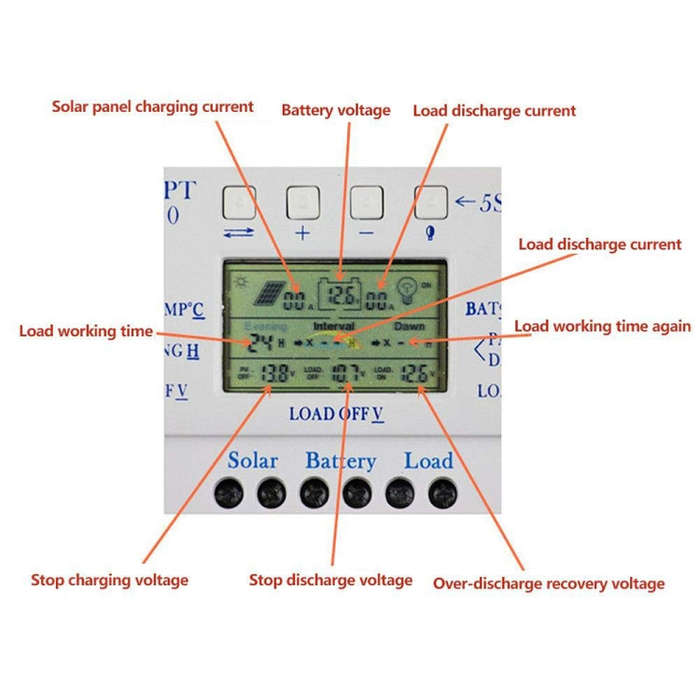

3. Vivid LCD graphic symbol LCD display, simple button mode.
4. Intelligent micro-processing with automatic temperature compensation according to the pulse width PWM charging method.
5. Adjustable charge and discharge control parameters, load working mode that can be set
6. Various protection functions such as battery reverse discharge, undervoltage, and reverse connection protection
7. Polarity reverse connection protection, overload protection, overcharge protection, short circuit protection.
8. Has a wide range of applicability, automatic recognition of day/night
9. The timing period of street lamps is adjustable from 1 to 24 hours, with dual period load discharge setting function
10. Unique dual time control enhances the flexibility of the street light system
11. Adopt temperature compensation, automatically adjust charging and discharging parameters, and improve battery life
