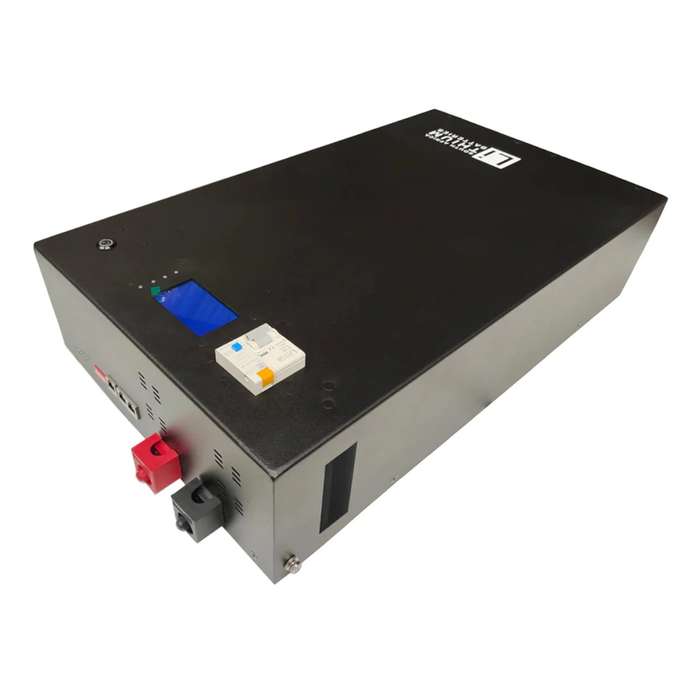

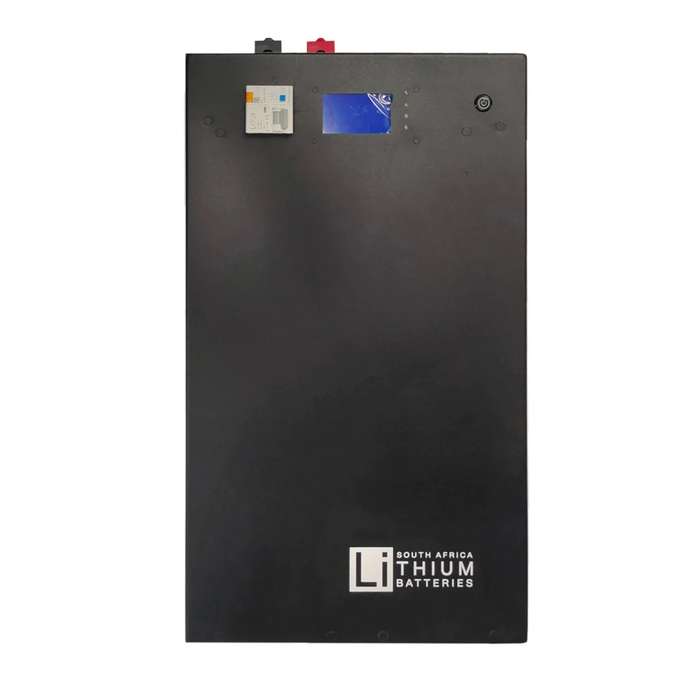

The LBSA 5.1 kWh lithium iron phosphate battery pack is a household renewable energy storage solution developed and produced by Lithium Batteries SA.
When fully installed, it is a low-voltage DC battery system with an operating voltage of 51.2V and works with a low-voltage inverter to realize the goal of energy storage for home applications.
The battery pack supports parallel connection to expand capacity, which can meet various capacity requirements.
It has a built-in battery management system (BMS), which can manage and monitor the pack and cell information - including voltage, current, and temperature.
What's more, the BMS can balance cell charging and discharging to extend cycle life.
Cycle life
- 7000 cycles @ 100% DoD @ 0.5C @ 25°C until 70% (70Ah) capacity retention
Capacity
- 5.2 kWh @ 40A Load
- 5.1 kW Max Continuous Load
Features
- The battery cell is a 3.2V 105Ah aluminum case prismatic cell.
- The battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life.
- BMS has over-discharge, over-charge, over-current, and high and low-temperature warning and protection functions.
- BMS monitors the charge and discharge state and balances the current and voltage of each cell.
- Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches.
- Working temperature range is from -20 °C ~50 °C (Charging 0 °C ~50 °C ; discharging -20 °C ~50 °C ) with excellent discharge performance and cycle life.
Details
- CAN Bus Comms: Victron, Growatt, Sunsync
- Bulk + Absorption: 56V
- Float: 54V
- Low Voltage Cut Off: 44V
- Continuous Charge/Discharge For Single Unit: 100A
- The charge for Parallel Units: (100A * No of units in parallel) / 2
- Discharge for Parallel Units: 100A * No of units in parallel (Auto when comms to Victron)
Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity: 105Ah(>105Ah)
- Nominal Power: 5.2KWh @ 0.4c (Tested)
- Dimensions: 408 x 362 x 191 mm
- Weight: 49 kg
- Discharge Cut-off Voltage: 44V
- Charge Voltage: 56V
- Max Charge/Discharge Current (A): 100A
- Communication Interface: CAN, RS485
- Configuration: 16S1P
- Working Temperature: 0~50°C(Charge), -20~50°C(Discharge), -20~55°C(Storage)
- Cell Chemistry: Lithium iron phosphate (LiFePO4)
- Cycle Life: 80% capacity state after 4800 cycles at 0.5C, 25°C, 100% DOD
- IP Level: IP 20
