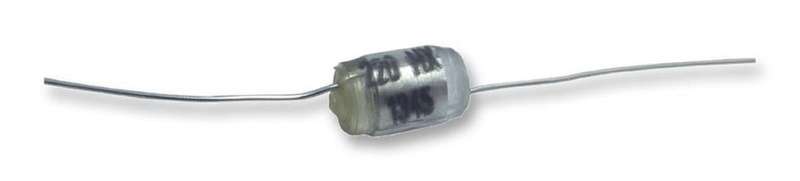

Lcr Components (FSC 160V 220PF 2.5%) General Purpose Film Capacitor

General Purpose Film Capacitor, Film / Foil PS, Axial Leaded, 220 pF, ± 2.5%,160 VProduct InformationDielectric Type: Film / Foil PSCapacitor Case / Package: Axial LeadedCapacitance: 220pFCapacitance Tolerance: ± 2.5%Voltage(AC): -Voltage(DC): 160VCapacitor Mounting: Through HoleCapacitor Terminals: PC PinHumidity Rating: -Lead Spacing: -Product Length: 8mmProduct Width: -Product Height: -Product Range: FSCOperating Temperature Min: -40°COperating Temperature Max: 85°CQualification: -Product OverviewThe LCR Components FSC series are axial leaded, polystyrene capacitors. Thesecapacitors have polystyrene as a superior dielectric material with exceptionallyhigh insulation resistance and low loss. Aluminium foil electrodes are used andterminal wires are welded to them to ensure satisfactory performance at lowvoltage and high frequency. The FSC series polystyrene capacitors are mainlyused in I. F transformers, tuned circuits, pulse networks, laboratory standards,timing circuits, analogue and digital computing circuits.Capacitance value ranges from 25pF to 2µF±20%, ±10%, ±5%, ±2.5%, or ±1pF tolerancesAvailable in 30V, 63V, 160V, 400V, 630VDC voltagesOperating temperature range -40°C to +85°CSmall physical sizeLow Temperature coefficientExtreme capacitance stabilityLow power factorHigh quality factorApplicationsIndustrial, Consumer Electronics, Portable Devices, Power Management
