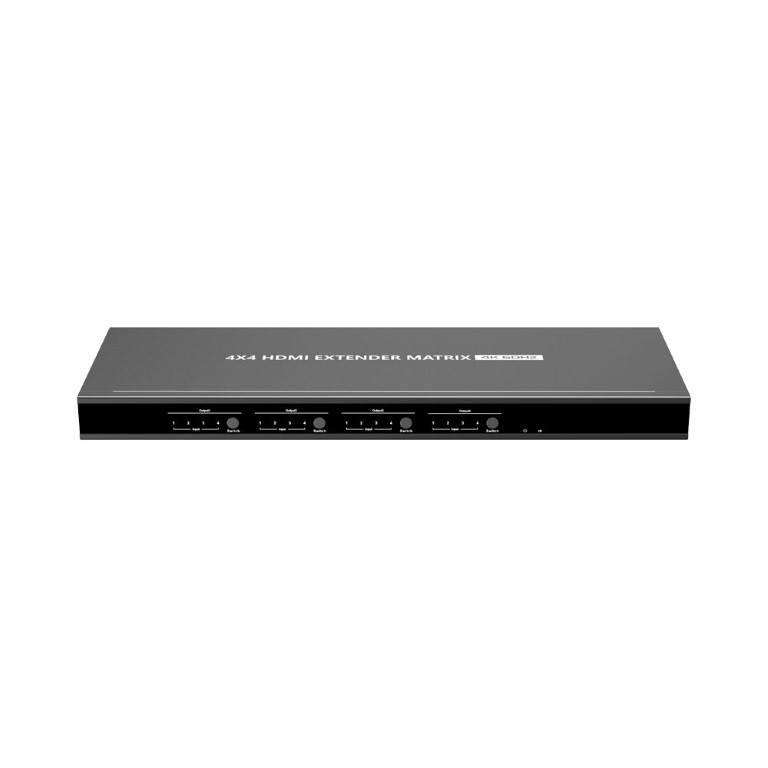

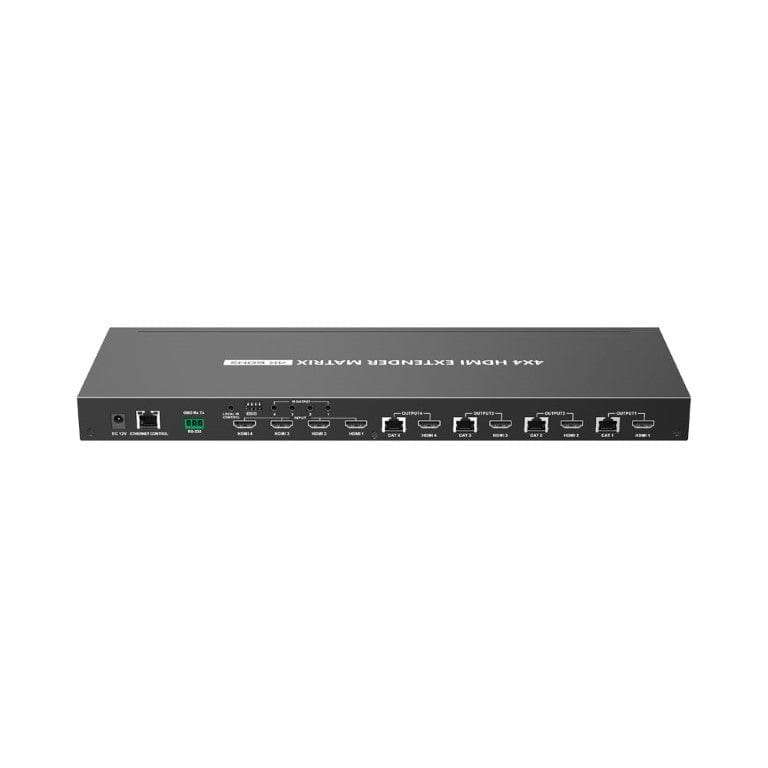

Lenkeng 4K 4x4 HDMI Matrix Extender Switch

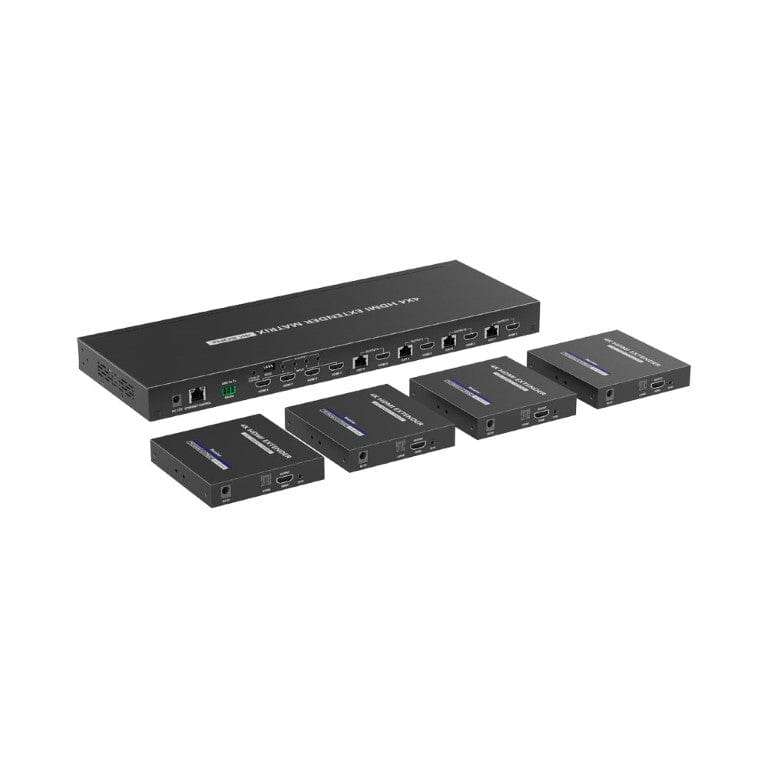

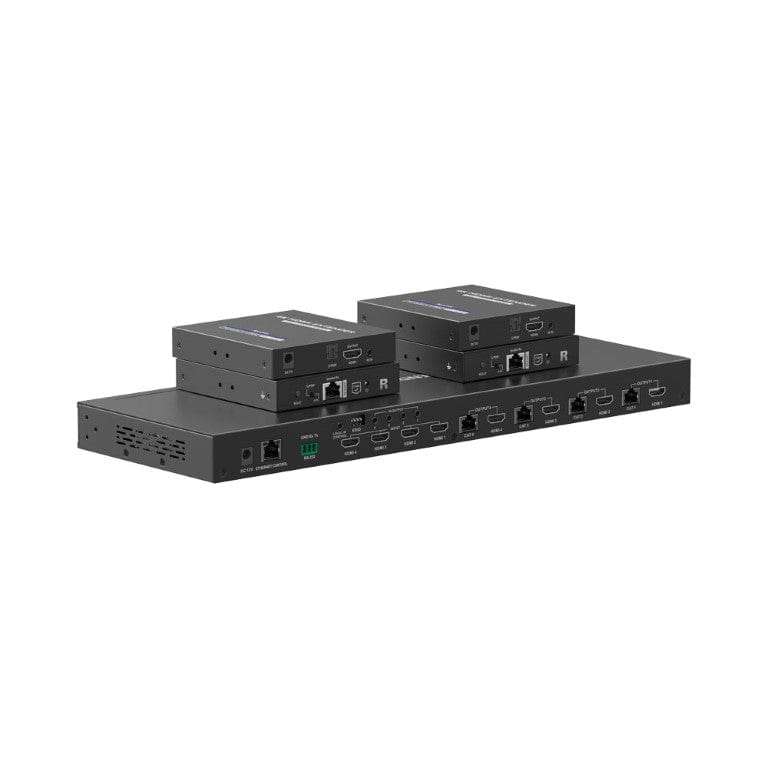

Lenkeng 70m 4×4 4K HDR HDMI Matrix Over CAT6/6A/7 Extender with PoC
This 4×4 HDMI matrix extender over network cable includes 4× HDMI inputs, 4× RJ45 outputs and 4× HDMI loop-outs. 4× HDMI outputs send high-definition audio/video signals to 4× UHD displays at the local site. At the same time, 4× RJ45 outputs transmit and extend the audio/video signals to 4× UHD displays, up to 70 meters away, via 4× receivers. RS-232 control, ethernet control, button control and remote control make switching/setting the input and output easy.
Features:
- ipcolor IMAGE
- 4× HDMI Sources to 4× HDMI Displays
- 4× HDMI Loop-Outs
- Distance up to 70m - 4K -60Hz (4:4:4)
- IR Passback Function
- Power Over Cable
- Multiple Control Methods
Specifications:
- HDMI version: HDMI 2.0
- HDCP version: HDCP 2.2, HDCP 1.4
- Transmission media: CAT6 / CAT6A / CAT7
- Transmission distance: 70m
- Video bandwidth: 600MHz (18Gbps)
- HDR10: Yes
- HDMI loop-out: TX: Yes
- Audio format supported: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH / Dolby Atmos
- Input TMDS signal: 0.5~1.2Vp-p
- Input DDC Signal: 5Vp-p
- RS-232 control: Yes
- Ethernet control: Yes
- Remote control: Yes
- Power over cable (PoC): TX to RX
- HDMI interface: Type-A 19-Pins, Female
- Case material: Metal
- Weight: TX :1530g, RX: 243g
- Colour: Black
- Power supply: DC12V 3A
- Consumption: TX+RX 30W
- Working temperature: -20~60°C
- Storage temperature: -30~70°C
- Humidity (no condensation): 0～90%RH (no condensation)
Resolution supported:
3840 × 2160 -24/25/30/50/60Hz, 4096 × 2160 -24/25Hz, 1080i -50/60Hz, 1080p -50/60Hz, 720p -50/60Hz, 576i -50Hz, 576p -50Hz, 480i -60Hz, 480p -60Hz, 3440 × 1440, 2560 × 1440, 2560 × 1080, 2048 × 1080, 1920 × 1440, 1280 × 960, 1280 × 800, 1280 × 768, 1680 × 1050, 1360 × 768, 1366 × 768, 1600 × 900, 1024 × 768, 800 × 600
Protection
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Lightning protection, Surge protection
