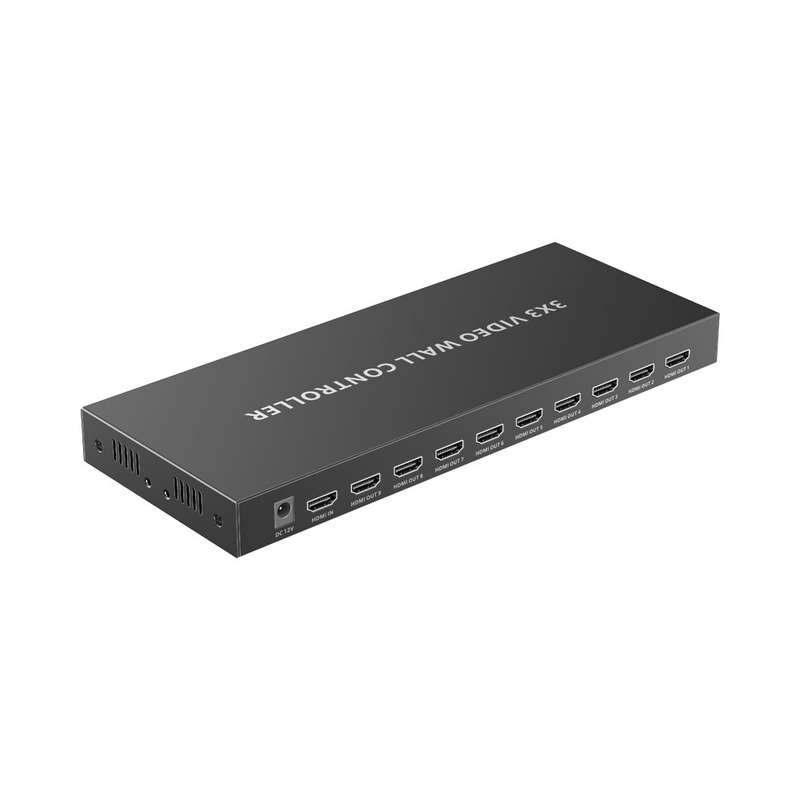

LENKENG LKV109VW-V2.0 | 3×3 Video Wall Controller
This product is a 1-in-9-out video wall controller, supporting one HDMI source input and nine HDMI outputs. It supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3 splicing modes, which can be set by RS232 or dip switch. Equipped with 3.5mm audio output, S/PDIF audio output and 180-degree rotation of the display image.
FEATURES:
SPECIFICATIONS:
Video signal | HDMI Input | 1x HDMI |
HDMI Output | 9x HDMI | |
Compatibility | HDMI 2.0 | |
HDCP 1.4/HDCP 2.2 | ||
Resolutions | Input: | |
4096×2160 @24/25/30/50/60Hz | ||
3840×2160 @24/25/30/50/60Hz | ||
3440×1440 @60Hz | ||
2560×1600 @60Hz | ||
2560×1440 @60Hz | ||
2560×1080 @60Hz | ||
2048×1536 @60Hz | ||
1920×1200 @60Hz | ||
1080p @24/25/30/50/60Hz | ||
Output: | ||
1080p @30/60Hz | ||
Audio signal | 3.5mm Output | PCM |
S/PDIF Output | PCM | |
HDMI Output | PCM | |
Splice Settings | Mode | 1×2/1×3/1×4/2×2/2×3/3×2/2×4/4×2/3×3, etc. |
DIP Switch | ||
RS232 (GND/RxD/TxD) | Baud rate: 9600 The mode can be switched using RS232 only when the DIP switch is set to 1111 | |
Power | Power Supply | DC12V 2A |
Power Consumption | <18W | |
Operating Environment | Working Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C | |
Humidity | 0~90%RH (No Condensation) | |
Physical Properties | Housing | Iron |
Weight | 775g | |
Colour | Black | |
Dimensions (L × W × H) | 265 × 105 × 25mm | |
Protection | Lightning, Surge and ESD Protection |
