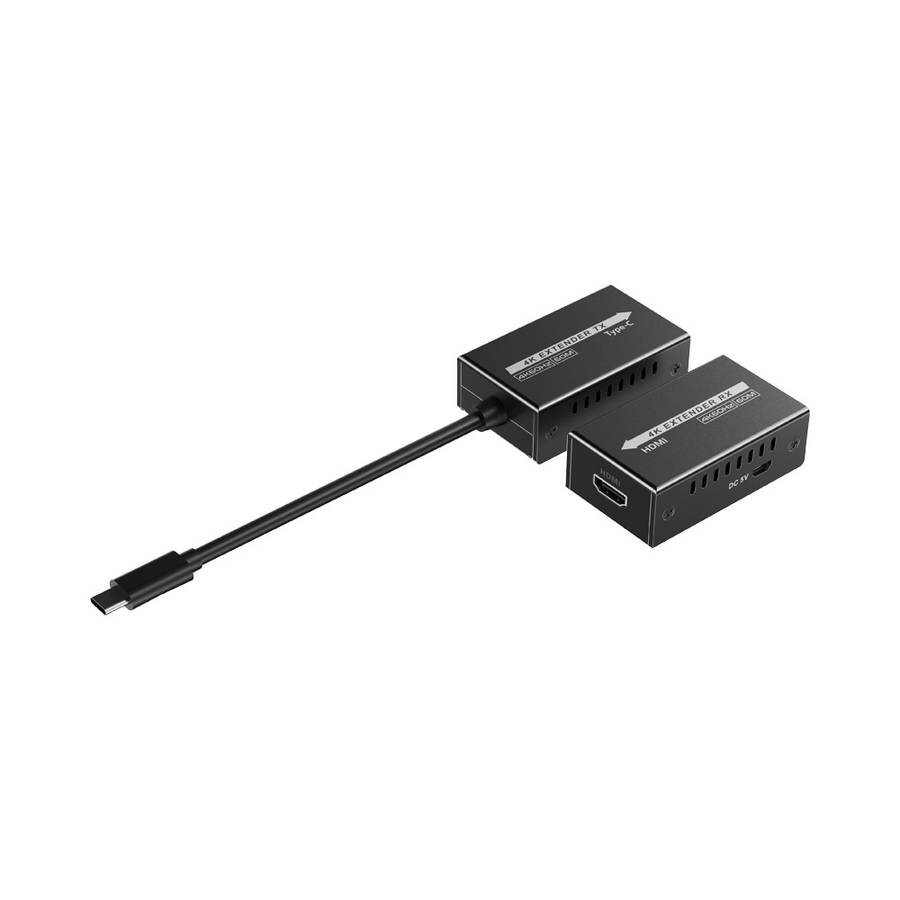

Lenkeng LKV600TH-L | 60m 4K @60Hz Type-C to HDMI Extender
FEATURES:
SPECIFICATIONS:
Voltage | TX: Powered by the signal source |
RX: DC 5V 500mA | |
Power consumption | TX: < 3W |
RX: < 3W | |
HDMI version | HDMI 2.0 |
HDCP version | HDCP 2.2, HDCP 1.4 |
Max transmission rate | 18Gbps |
Resolution | 1280 × 720, 1280 × 960, 1366 × 768, 1440 × 900, 1680 × 1050, 1920 × 1080, 1920 × 1200, 720p @50/60Hz, 1080i @50/60Hz, 1080p @24/25/30/50/60/ 120Hz, 2560 × 1440 @50/60/120/144Hz, 3840 × 2160 @24/25/30/50/60/100/120Hz, 4096 × 2160 @24/25/30/50/60Hz |
TMDS signal | 0.7~1.2Vp-p (TMDS) |
DDC signal | 5Vp-p (TTL) |
CAT6/6A/7 Transmission distance | 4K @60Hz 60m |
2560 × 1440 @120/144Hz 30m | |
4K @100/120Hz 25m | |
Audio formats | PCM, DTS, Dolby |
HDR10 | Supported |
HDMI 3D | Supported |
EDID passthrough | Supported, auto downscaling |
Working temperature | -20~55°C |
Storage temperature | -30~60°C |
Humidity | 0~90%RH (no condensation) |
Material | ABS |
Colour | Black |
Dimension (L × W × H) | 67 × 38 × 21mm |
Weight | TX: 85g |
RX: 72g | |
ESD protection | 1a Contact discharge level 2 (±4KV) |
1b Air discharge level 3 (±8KV) | |
Implementation of the standard: IEC61000-4-2 |
