LILYGO 3.71 inch Ink Screen No Touch Function for Raspberry Pi LILYPI Btb Interface Board

20 available / new

R804.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3628

92.95 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

645879477

Feature:

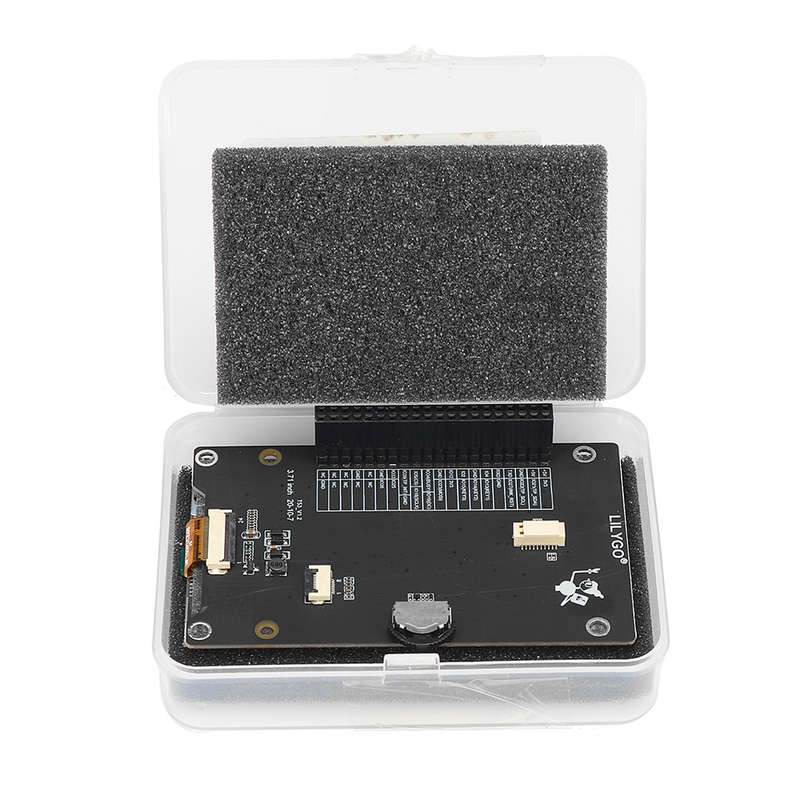

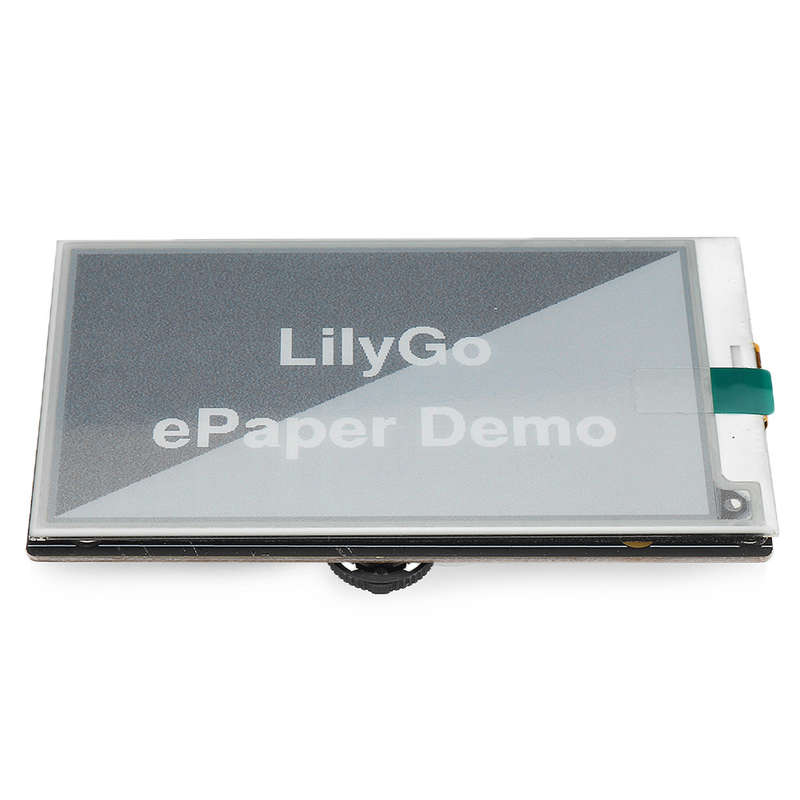

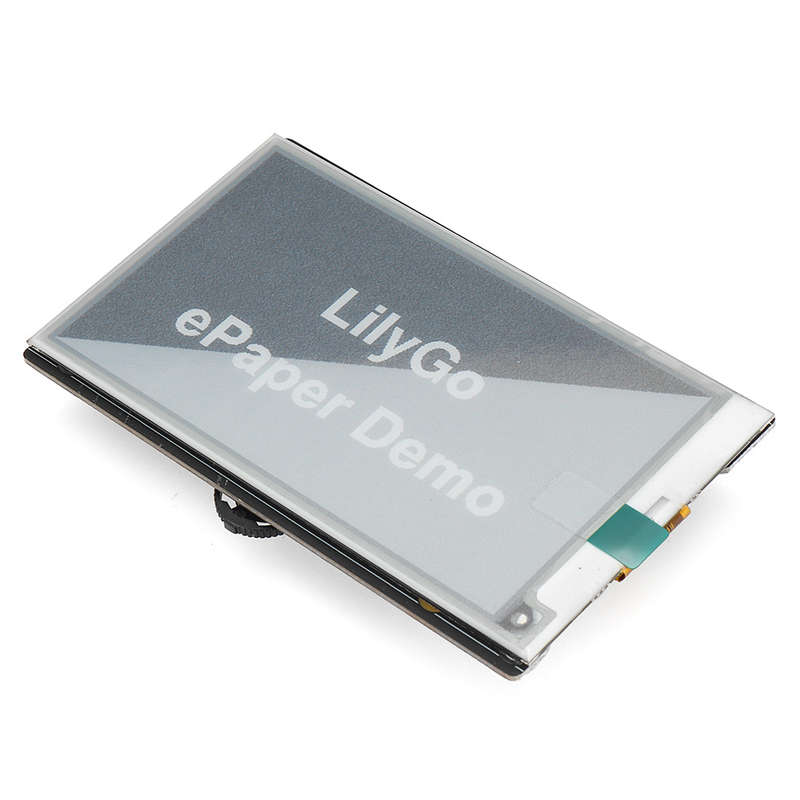

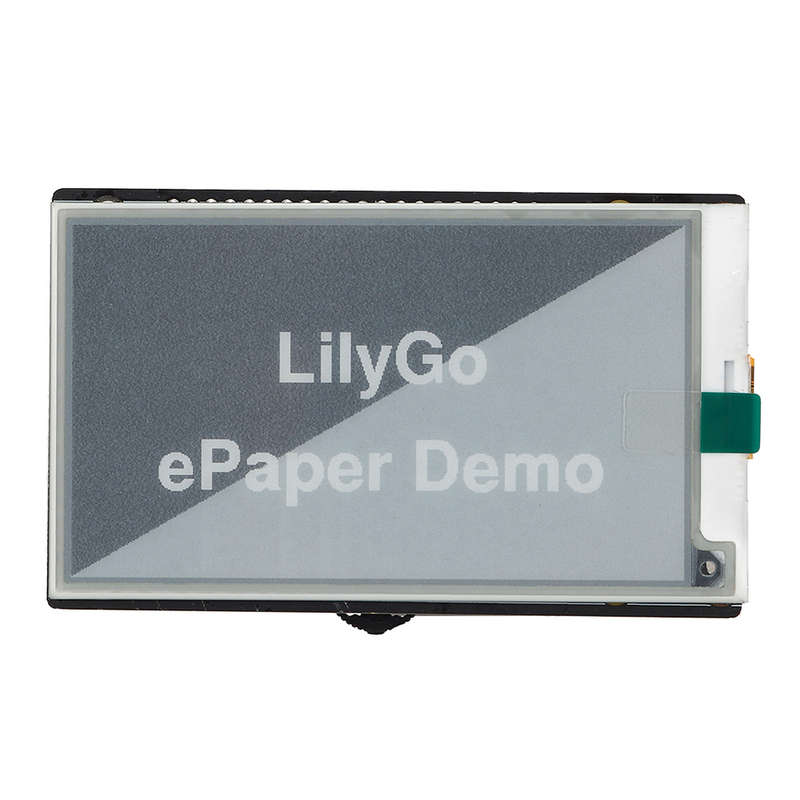

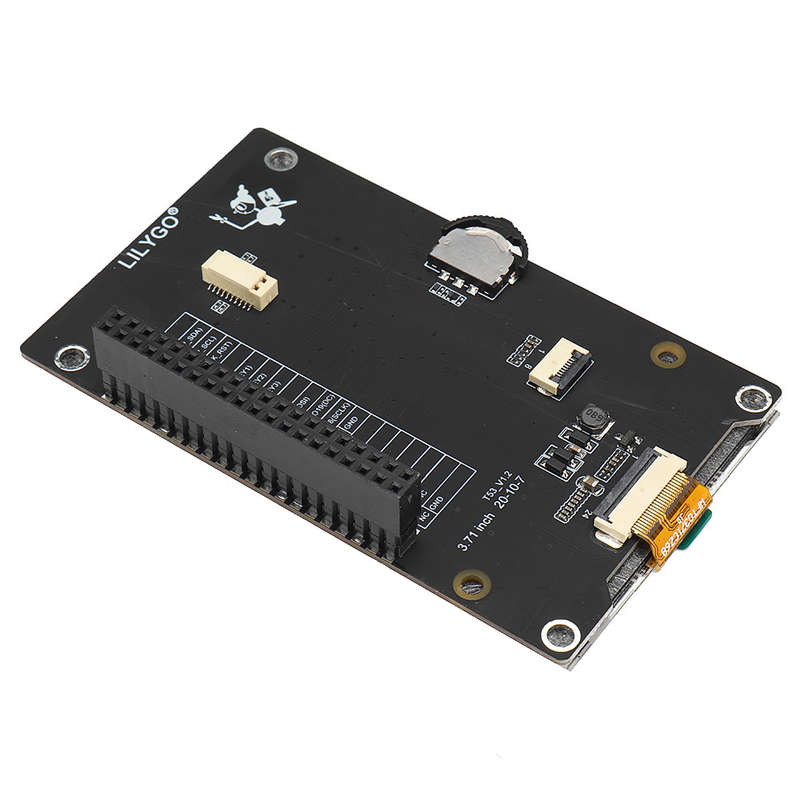

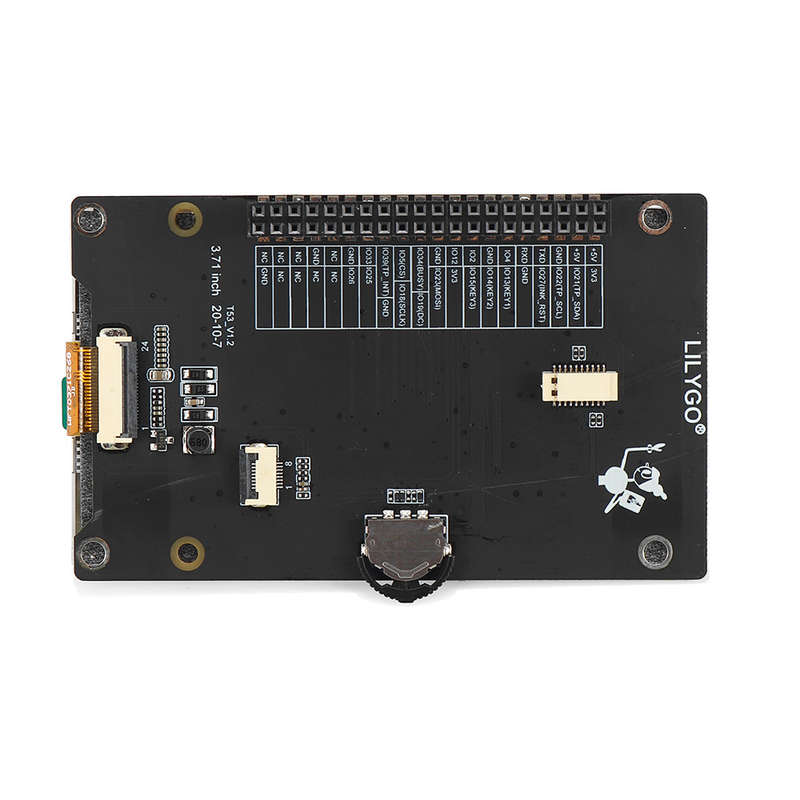

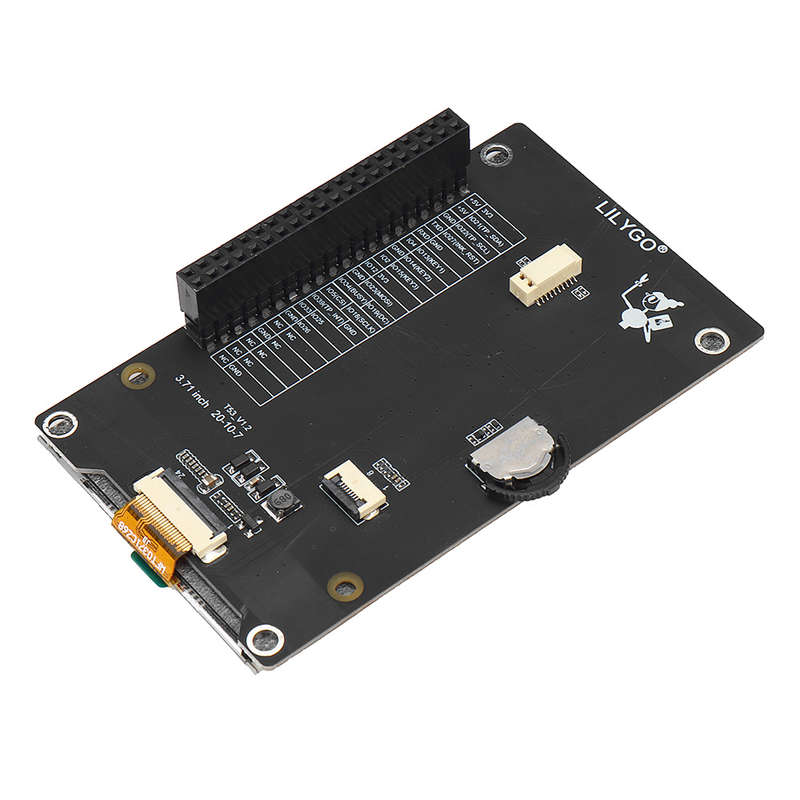

LILYGO 3.71 inch ink screen can be used as an independent module to connect to different main control or development boards through the reserved 2.54 row female interface.

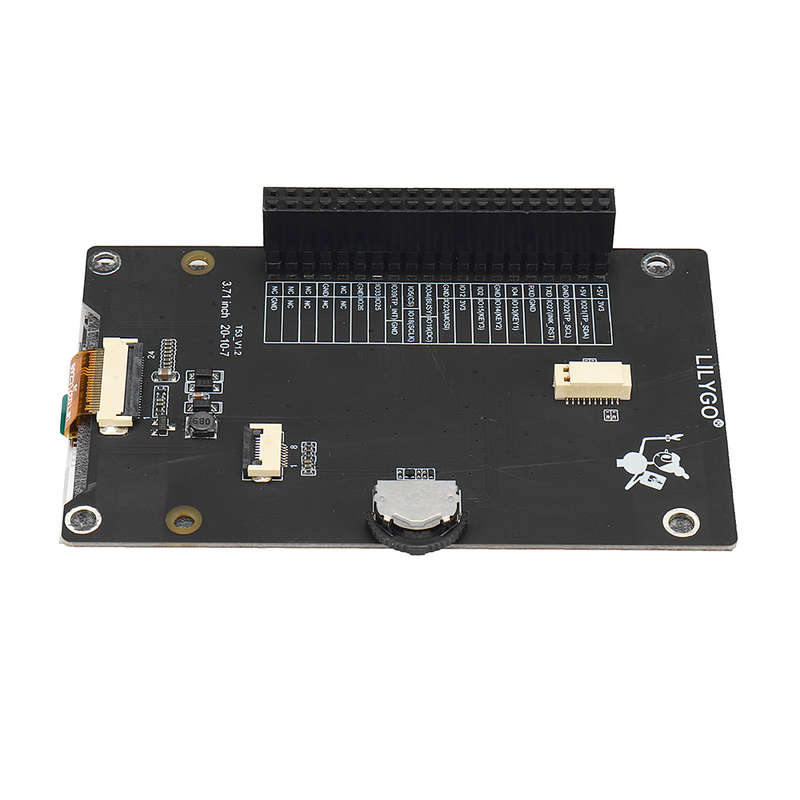

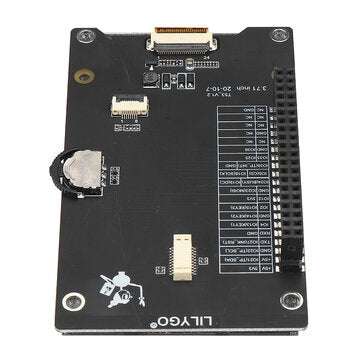

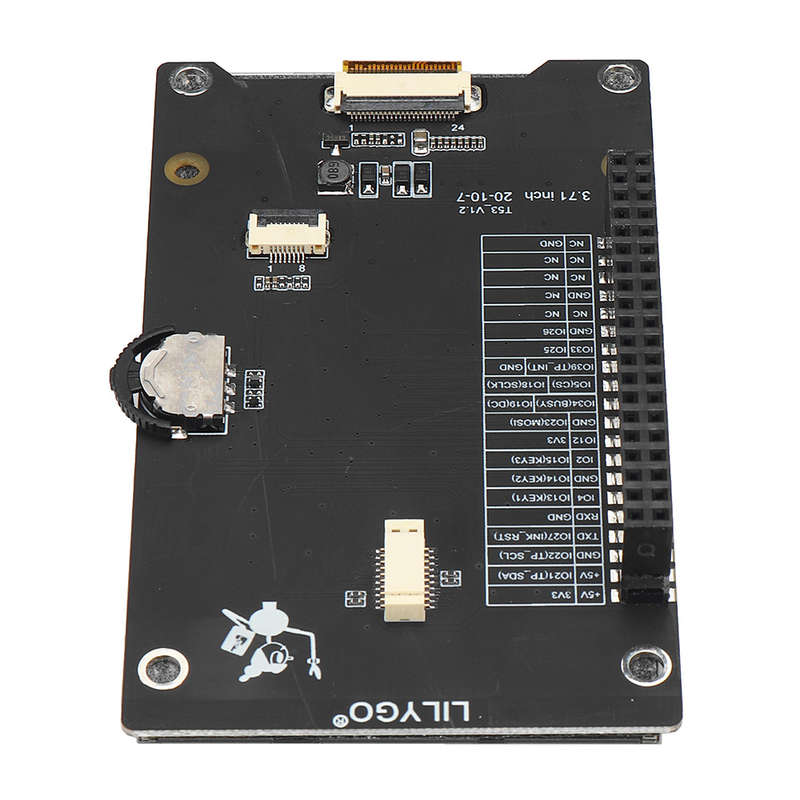

It can also be used as a Raspberry Pi, LILY PI directly expands the module, and the corresponding pinout interface is designed to adapt to the Raspberry Pi and LILY PI.

The board also reserves the Btb interface that can expand the T-BLOCK (when using the T-BLOCK expansion, the T-BLOCK motherboard needs to be taken out of the shell).

3.71 Ink screen extended function board parameters:

-3.71 Ink screen parameters

Product model GDEW0371W7

Type Graphic dot matrix

Resolution 416*240(DPI:130)

Dimensions (mm) 92.99*53*1.18

Field of view size (mm) 81.536*47.04

Dot spacing (mm) 0.196*0.196

Working temperature 0~50C

Storage temperature -25~70C

Connector 24 Pin FPC, pitch: 0.5mm

Color black and white gray
