LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi
LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi

LILYGO TTGO T5s V1.9 ESP32 2.7 Inch OLED EPaper Plus Display Module For Alexa I2S DAC MAX98357A Mi

New 20 available
R810.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
651232281
Characteristics:

Lastest ESP32 Version: REV1

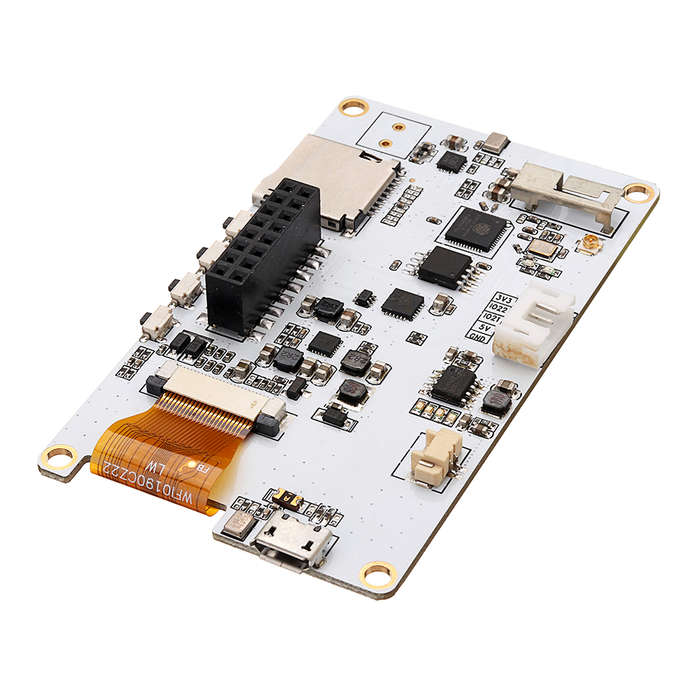

2.7a3ePaper board consisting of ESP32-D0WDQ6, I2S DAC MAX98357A, and two pcs I2S MEMS microphone ICS43434
Single channel, Class-D amplifier embedded DAC, MAX98357 is connected to ESP32 through I2S bus.
MEMS microphone Invensense ICS-43434 is connected to ESP32 through I2S bus.
On-board USB-UART interface (CP2102) with several glue logic for direct binary uploading.
WIFI
bluetooth
4 MB Flash
3D ANTENNA
2A Battery Management
LED indicator: There are 4 LEDs show the battery status in real time.
Power button: Click one time will start. Fast click 2 times will shut down.

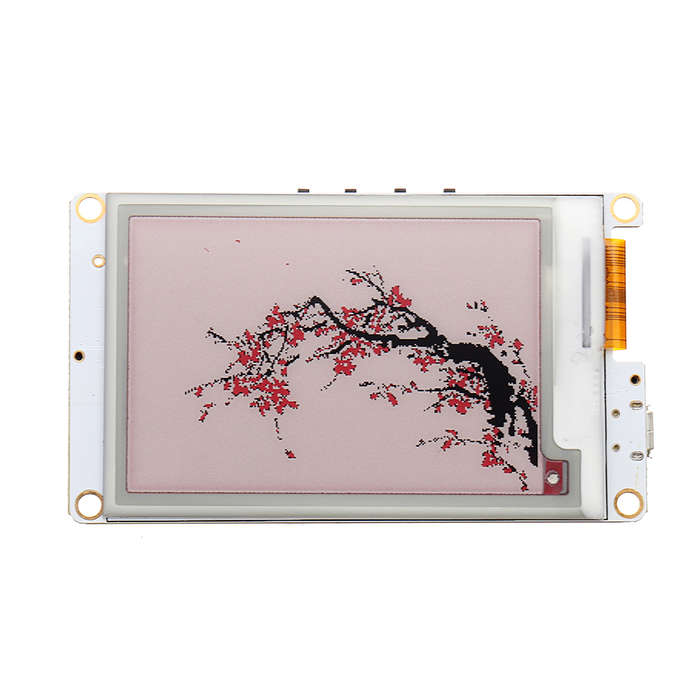

2.7a3 ePaper module 264*176 pixels,
TFCARD
Protection: Short protection. Over charging protection. Overflowing

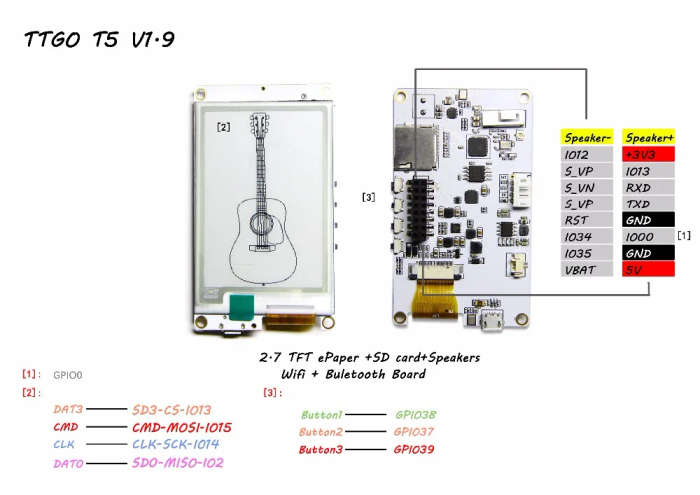

button changed (IO34, IO35, IO39)
Grey Level: 2
Display size: 57.29x38.19mm
Outline Dimension: 70.4x45.8mm
Full refresh Time: 15s
More product information, link to:

Package included:

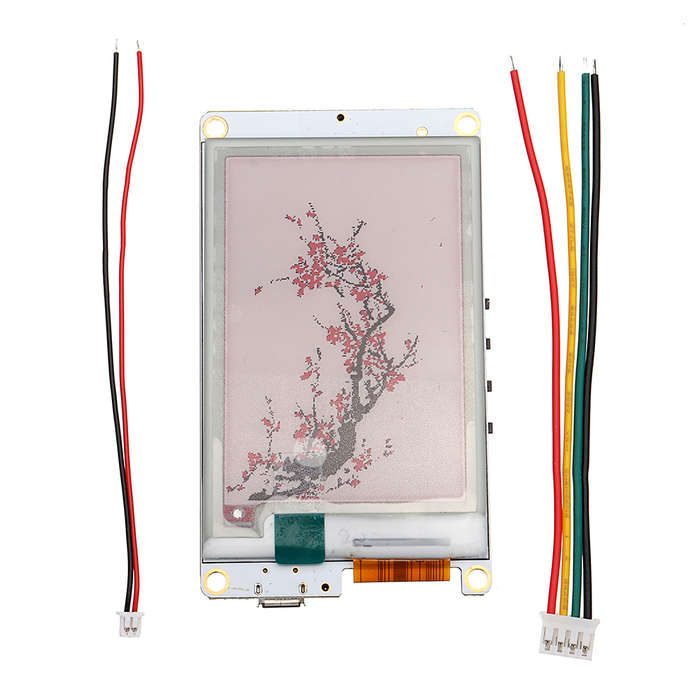

1 xTTGO T5S V1.9 2.7 inch Black White ePaper ESP32 Module

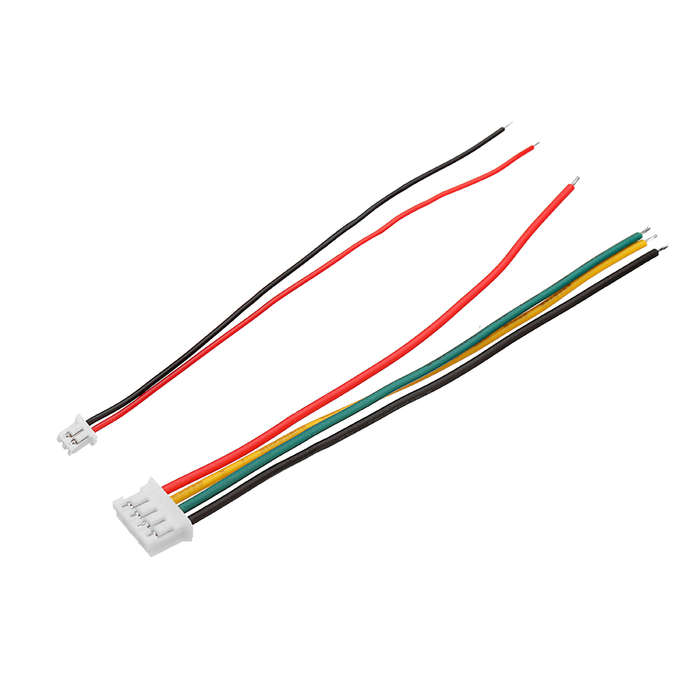

1 x Power Cable 1 x GROVE Line
