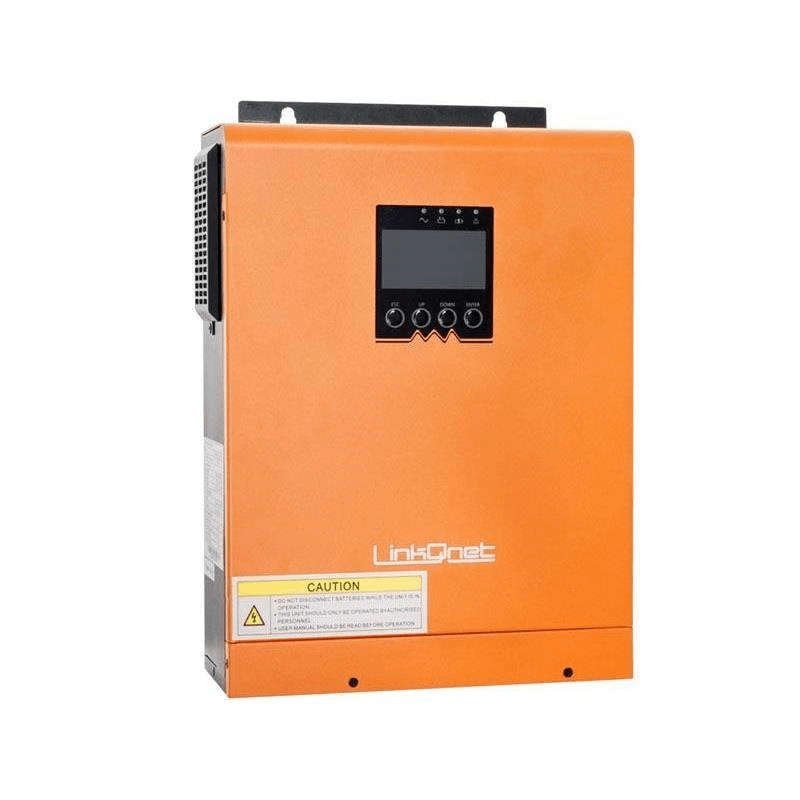

LinkQnet 3KVA 2.4KW 24V Solar Inverter with 60A PWM SCC UPS-INV-2.4KVA-V-TG

Budget Inverter Solution: The LinkQnet 3024 Value 24V DC to 230V AC Inverter solution includes a 40A AC-DC charger and 50A DC-DC PWM 1200W Solar charger for a combined total charging capability of 90A and 2400W DC-AC pure sinewave inverter in one compact solution. It is designed for fixed and mains socket AC sources by limiting the power delivery to 2400W while charging at 1000W to draw a total of less than 15 Amps from the AC plug.

Multiple Deployment Options: With no PV solar panels attached while connected to the utility power grid and battery storage, the unit can function as a power backup source during load shedding or unforeseen utility power failures. The unit can also operate as a hybrid solar storage solution connected to the utility power grid or a generator to assist with charging the batteries when solar levels are low or as an off-grid pure solar storage solution with only the solar panels connected to charge the batteries. The internal electronics and AC relay arrangement make it physically impossible for the inverter to feed power towards the grid or generator.

Solid and Reliable: The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.

Battery Options: The LinkQnet 3024 Value can support lead acid (Flooded, VRLA AGM or GEL), Lithium Iron Phosphate battery (LiFePO4) or Super Capacitors for storage.

FEATURES :

Pure sinewave inverter with 2400W RMS power (3000VA)
Built-in 50A PWM solar charge controller
Configurable input voltage range for home appliances or UPS transfer (<10ms)
Configurable battery charging current based on application
Configurable AC/solar charger priority
Can be wired to be powered from a standard South African 15A plug socket
Compatible with mains or generator power
Auto restart when AC recovers or PV power is available
Overload / over temperature / short circuit protection, variable speed low noise fans
Smart battery charger design for optimised battery performance
Cold start function

SPECIFICATIONS :

INSTALLATION :

PEAK POWER : 3000VA (6000VA surge for max 2 seconds)
RMS POWER : 2400W (PF=0.8)
AC VOLTAGE : 230V
AC WAVEFORM : Pure Sinewave
EFFICIENCY (Peak) :0.93
DC VOLTAGE : 24V
TRANSFER TOLERANCE : 185V to 264V (UPS Mode) / 154V to 264V (Appliance Mode)
TRANSFER TIME :
CHARGING :

AC CHARGE : 40A (Adjustable)
SCC TYPE : PWM
SCC OPERATING VOLTAGE : 36V - 72V DC
MAX PV OC VOLTAGE : 85V DC
MAX SCC POWER : 1200W
MAX SCC CHARGE : 50A
MAX COMBINED CHARGE : 90A (Adjustable)
SCC EFFICIENCY : 0.95

OPTIONS :

STANDBY POWER CONSUMPTION : 2W
PARALLEL CAPABLE : No
COMMUNICATION : RS-232 / USB-A
BATTERY TYPES : Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom
BMS SUPPORT : No - Third party solution can be used
WARRANTY : Two Years - Conditional

PHYSICAL :

WEIGHT : 4.20kg
DIMENSIONS (D × W × H) : 100 × 240 × 330mm
OPERATING HUMIDITY : 5% to 95% Relative Humidity (non- condensing)
OPERATING TEMPERATURE : 0°C to 40°C (Room Temperature)

INSTALLATION :

INSTALLATION ENVIRONMENT : Indoor environment with no exposure to direct external air in coastal regions
INPUT ISOLATOR : Not needed if connected to a SANS compliant 15A wall socket with EL protection
INPUT CIRCUIT BREAKER : Not needed if connected to a SANS compliant 15A wall socket with EL protection
OUTPUT CIRCUIT BREAKER : Dual Pole 10A-15A (to be purchased). Or multi-plug with thermal overload.
BYPASS SWITCH : 25A-63A dual pole, double throw with centre oï¬ (to be purchased)
OUTPUT ISOLATOR : 25A-63A dual pole (to be purchased)
EARTH LEAKAGE RELAY : 40A-63A with 30mA break leakage for plug circuits (to be purchased)
INSTALLATION COMPETENCY : Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance.
