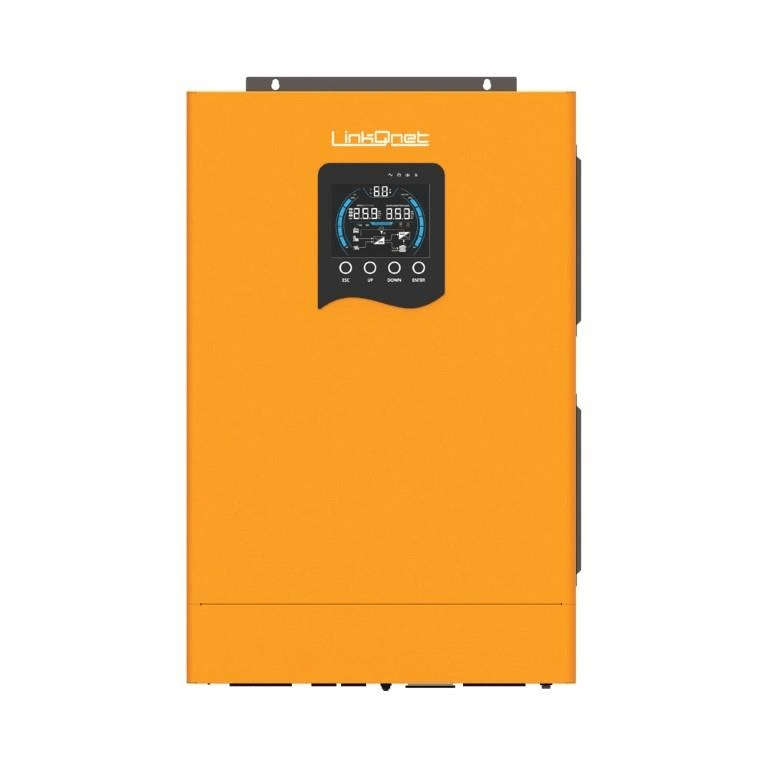

LinkQnet 9500W 10KVA Pure Sinewave Solar Inverter UPS-INV-10KW-10048TG

The LinkQnet 10kVA Dual Output 48V Pure Sinewave Solar Inverter is a high-capacity power conversion device designed for solar energy systems.

10kVA Capacity

With a capacity of 10kVA (10,000 volt-amps), this solar inverter is suitable for medium to large-scale solar energy systems. It can handle significant loads, making it ideal for residential, commercial, or industrial applications.

Dual Output

The inverter features dual output capability, allowing it to supply power to two separate electrical circuits simultaneously. This flexibility enables efficient distribution of solar-generated electricity to multiple loads or appliances.

Features:

• Pure Sinewave Solar Inverter
• Compatible with AC Mains or Generator Inputs
• Considerable PV Input Types
• Build-In Smart Solar Charger (PWM/MPPT)
• Auto Restart while AC is Recovering
• Configurable AC/Solar Input Priority via LCD Setting
• Selectable Input Voltage Range for Home Appliances and Personal Computer Loads
• Dual PV Input Max. 36A

Specifications:

• Rated Power: 10,000VA / 9,500W
• Parallel Capability: Yes (optional), up to 4 units
• Operation without Battery: No
• Lithium Battery Communication: Yes
• Dual Output: Yes

Input

• Voltage: 220/230/240VAC
• Selectable Voltage Range: 170-264Vac (for personal computer), 90-280Vac (for home appliances)
• Frequency Range: 50Hz/60Hz (auto sensing)

Output

• AC Voltage Regulation (Battery Mode): (220VAC-240VAC) ±5%
• Surge Power: 20,000VA
• Wave Form: Pure Sinewave
• Inverter Efficency (Peak): 0.94
• Transfer Time: 10ms (typical)

Battery

• Normal Vottage: 48VDC
• Floating Charge Voltage (Settable): 55.2VDC
• Overcharge Protection: 60VDC

Solar Charger and AC Charger

• Max. PV Array Open Circuit Voltage: 500VDC
• PV Array Voltage Range: MPPT 120-450VDC
• Number of MPP Trackers: 2
• Max. PV Input Power: 12,000W (6000W x2)
• Max. PV Input Current: 18A x 2
• Max. Solar Charge Current: 100A x 2
• Max. AC Charge Current: 200A
• Max. Charge Current: 200A

Communication

• Interface: USB/RS485/CAN/DRY CONTACT
• Wi-Fi Monitoring: Yes (optional)

Dimensions

• Machine Dimensions (H × W × D): 460 × 700 × 120mm
• Package Dimensions (H × W × D): 805 × 530 × 200mm
• Weight: 25.05kg
