LM399 Voltage Reference 2.5V/5V/7.5V/10V High Precision Reference Source

New 20 available
R810.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
654102394
Specification:

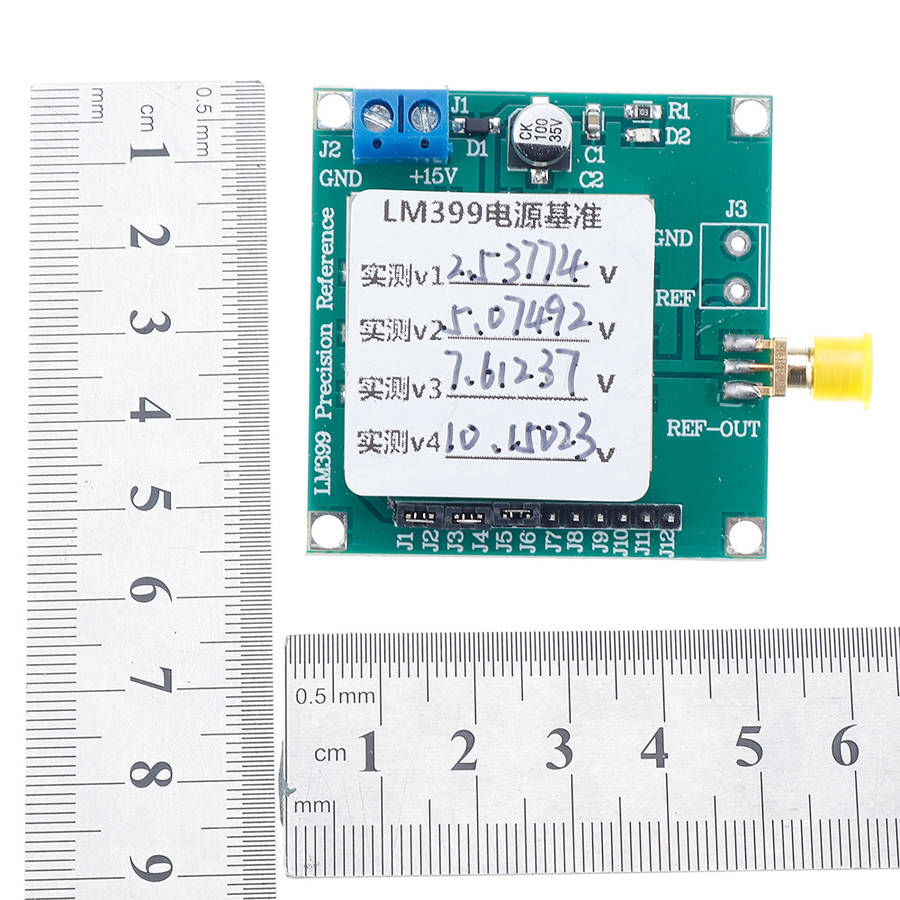

Input voltage: +15V Output voltage: +10V/+7.5V/+5V/+2.5V Accuracy: 0.00001 Chip temperature drift: 0.5ppm/a Size: 5*5cm
Jumper cap connectionOutput voltage
Short J5 to J65V
Short J7 to J8
Short J1 to J210V
Short J3 to J4
Short J5 to J6
Short J3 to J47.5V
Short J5 to J6
Short J7 to J8
Short J5 to J62.5V
Short J7 to J8
Short J11 to J12
Short J5 to J66V
Short J7 to J8
Short J1 to J2
Short J5 to J64V
Short J7 to J8
Short J9 to J10

Package included:
1 x Power supply module
