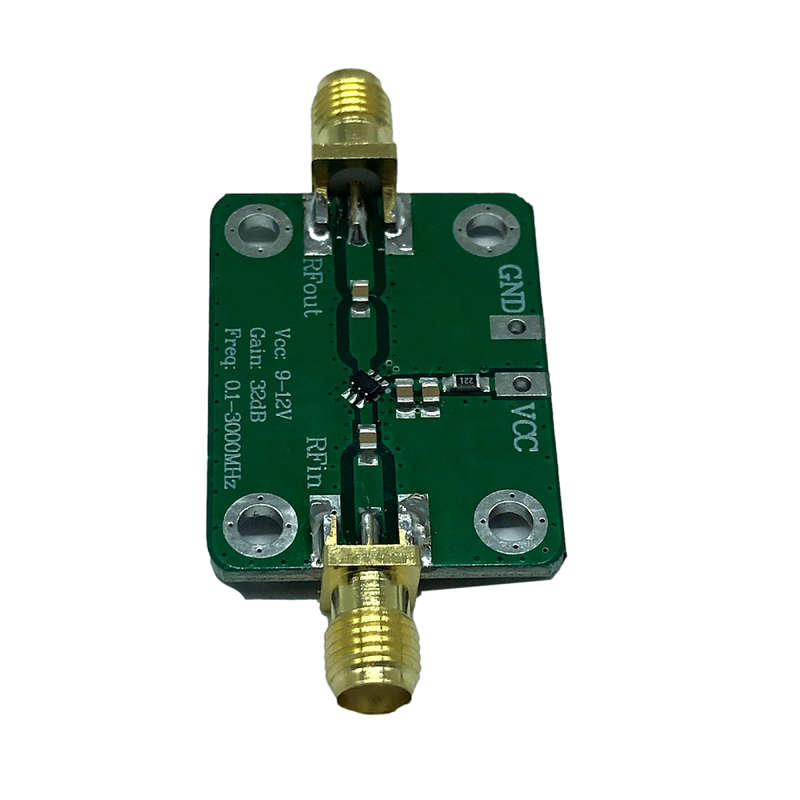

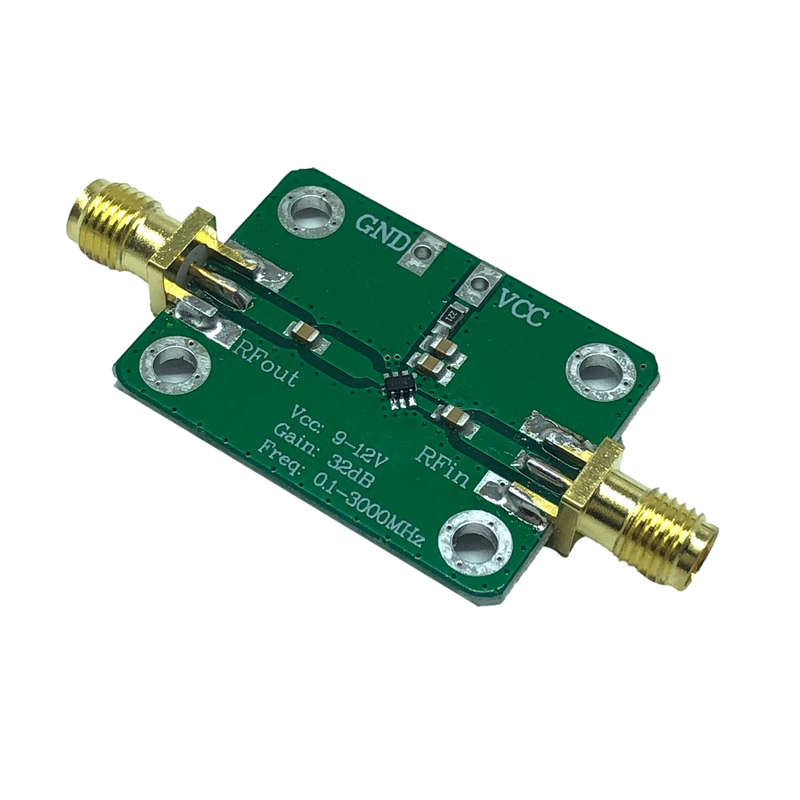

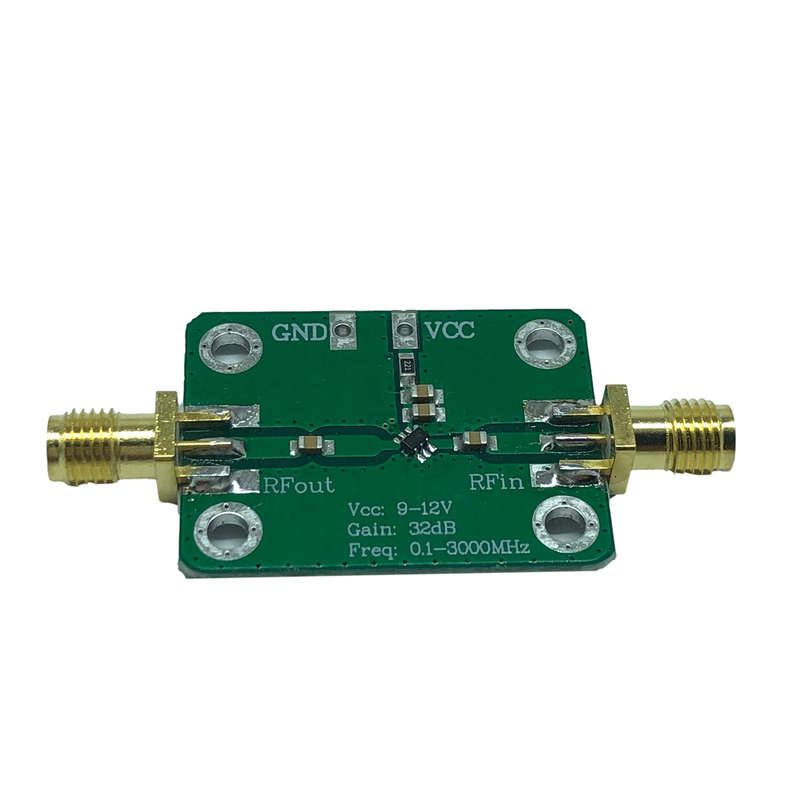

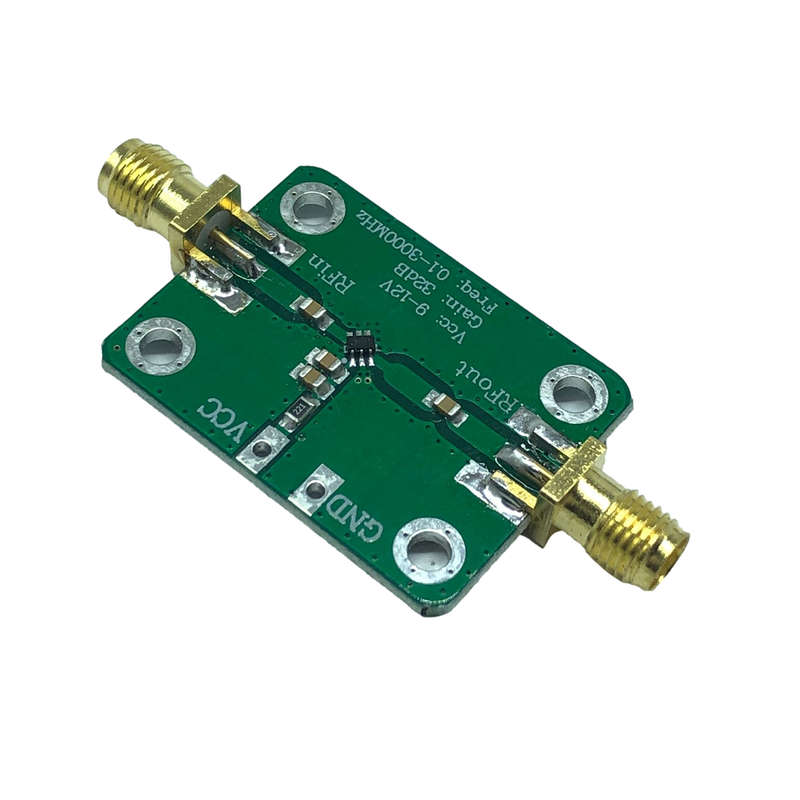

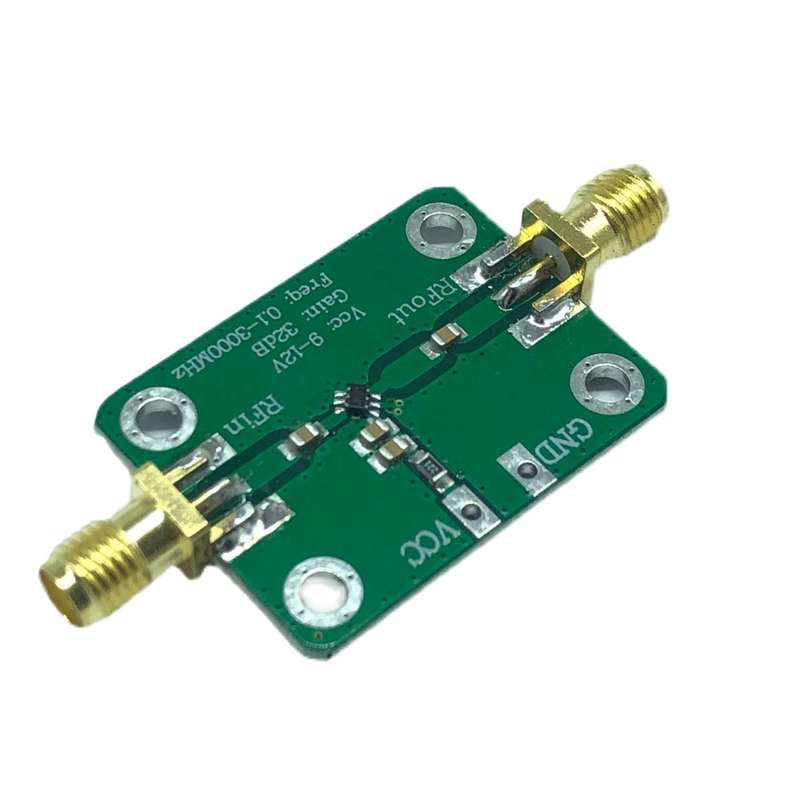

LNA 0.1-3000MHz Gain 32dB Radio Frequency Broadband Amplifier Low Noise Amplifier Module

20 available / new

R396.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3456

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128030

Description:
This amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used in various radio frequency receiving front ends to increase the communication distance! Wide range of shortwave, FM broadcasting, remote control receivers, cable TV signal amplifiers and other places where low-noise and small-signal radio frequency amplification is required.
Technical Parameters:
1. Operating frequency: 0.1-3000MHz 2.Working voltage: 9-12V (suitable for lithium battery power supply) 3.Working current: 27mA 4.Amplification gain: 32dB (typical value) F= 0.1MHz, gain=32dB F= 500Mhz gain=32dB F=1000MHz gain=32dB F=1500Mhz gain=32dB F=2000MHz gain=32dB F=2500MHz gain=30dB F=3000MHz gain=29dB 5.Maximum output: 13dBm (20mW) 6.System impedance: 50 ohms 7.Connector model: SMA-K (female, outer screw and inner hole) 8.Dimensions: 25*33mm (excluding connectors) 9.Product weight: 6g
Instructions:
RFin: Input signal amplification RFout: output amplified signal VCC: Positive power supply (suitable for lithium batteries) GND: negative power supply
Package included:
1 x RF Amplifier
