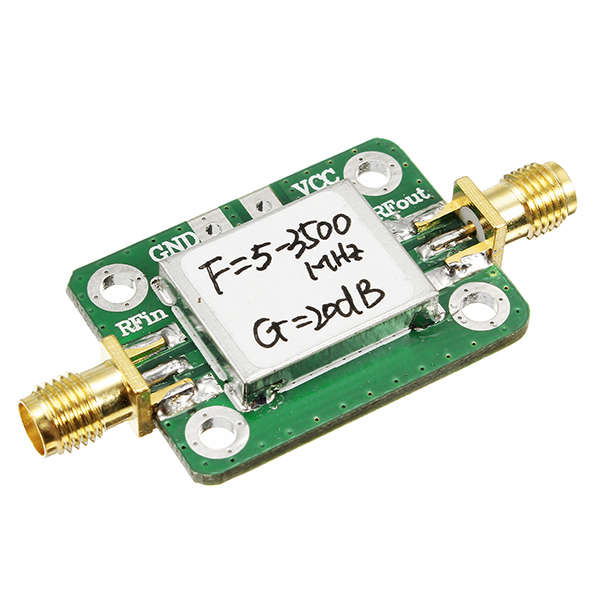

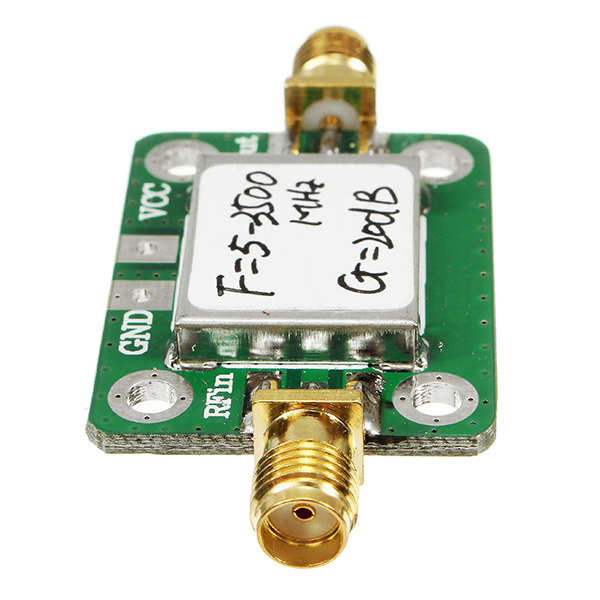

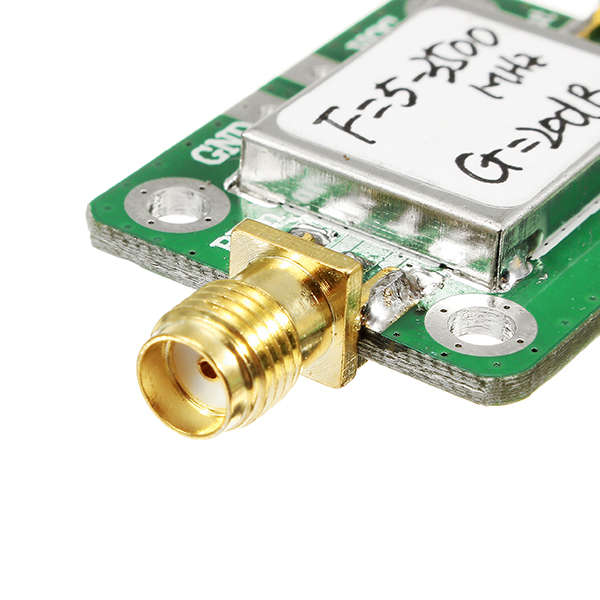

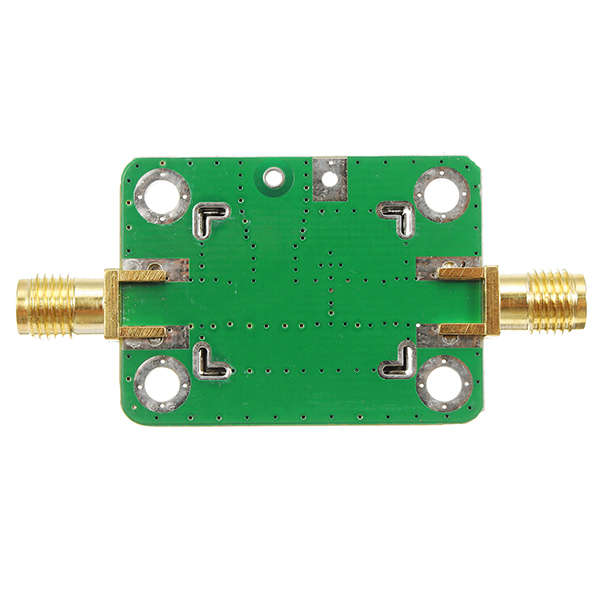

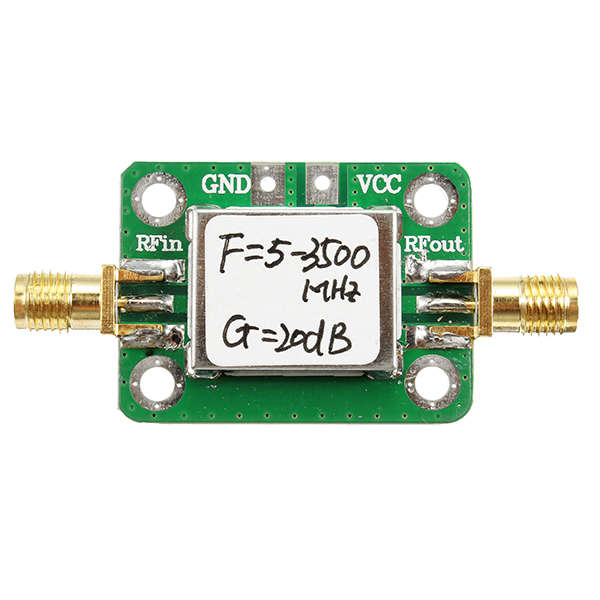

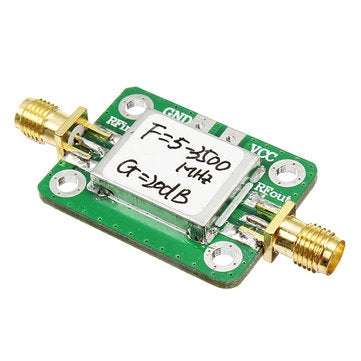

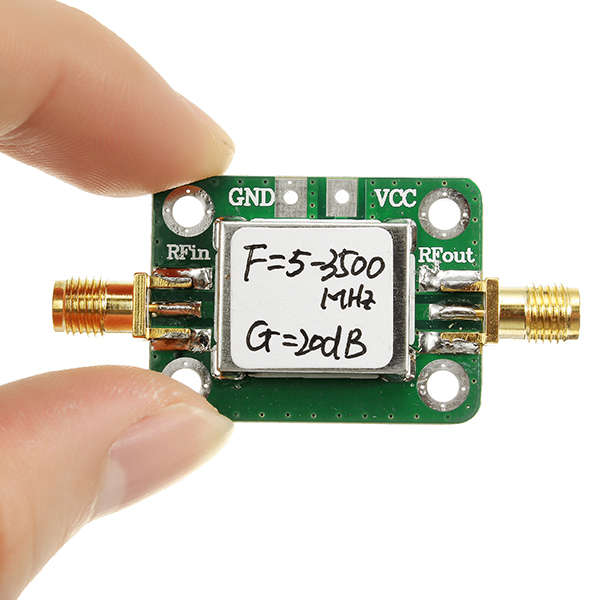

LNA 5-3500MHz 20dB Gain Broadband Low Noise RF Amplifier With Shielding Shell

New

20 available

R528.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4028

92.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654102399

Application:

This amplifier has a wide frequency range, gain stability, low noise figure, dynamic range + 20dBm @ 1dBP), etc. Advantage,
especially for a variety of RF receiver front-end circuit, increase the communication distance! Widely used in shortwave, FM radio,
remote control receiver, cable TV signal amplifier, Beidou, GPS satellite navigation, 2.4G bluetooth,
WIFI receiver RF front end need low noise small signal radio frequency amplification place!

Amplifier parameters indicators:

Operating frequency: 5-3500MHz
Amplification gain: 20dB (typical)
Noise figure: 1.3 (typical)
Maximum output power: + 20dBm (100mW) @ 1dB compression point
Operating current: 80mA (5V)
Supply voltage: 3.3-6VDC
System impedance: 50 ohms

Package included:

1 x LNA 5-3500MHz 20dB Gain Broadband Low Noise RF Amplifier With Shielding Shell
